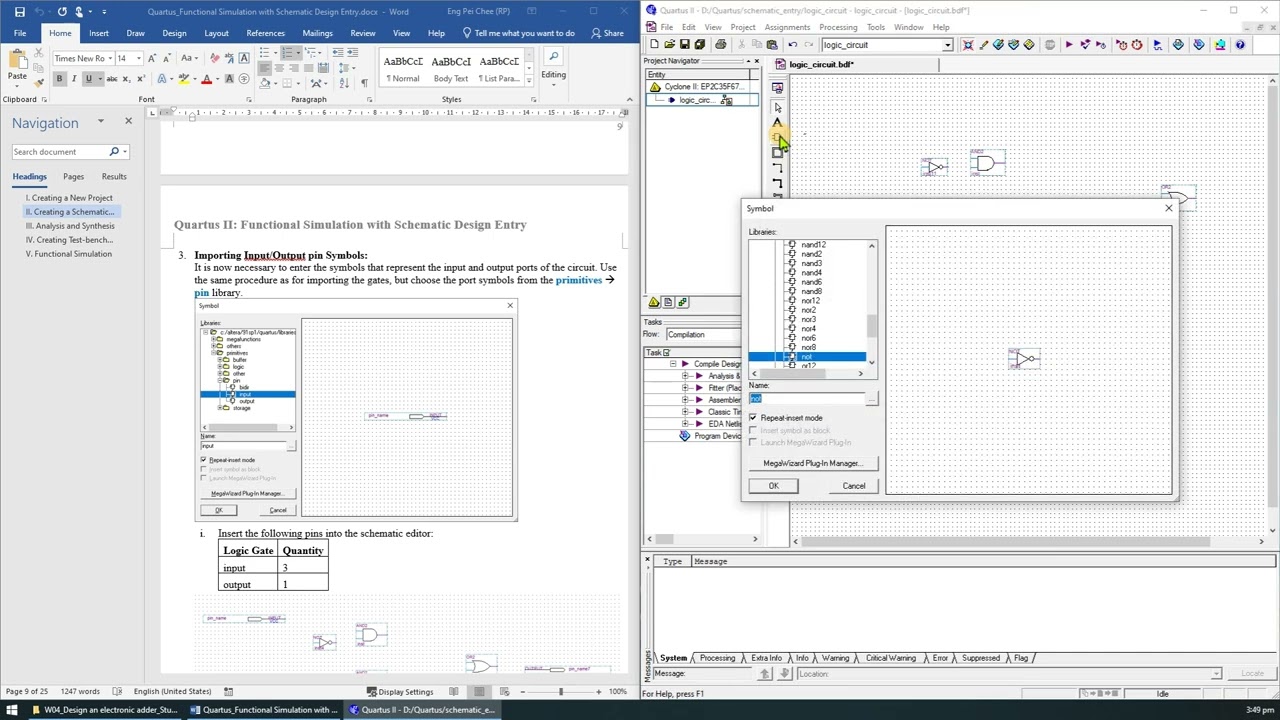

Quartus II - Functional Simulation with Schematic Design Entry
Автор: Code2Circuit
Загружено: 2023-03-15
Просмотров: 1334
Описание:
Instructional video on how to use Quartus II to perform a functional simulation with Schematic Design entry
0:00 Getting Started
1:05 I. Creating a new project
3:40 II. Creating a Schematic File
4:05 1. Create a new Schematic File:
4:58 2. Importing Logic-Gate Symbols:
7:11 3. Importing Input/Output pin Symbols:
9:10 4. Connecting Nodes with Wires:
10:50 III. Analysis and Synthesis
11:27 IV. Creating Test-bench Waveform
11:35 1. Create a new Vector Waveform File:
12:30 2. Include the input and output nodes of the circuit to be simulated:
13:58 3. Grid Size and End Time
14:51 4. Setting the test values:
16:30 V. Functional Simulation
17:04 1. Select Functional Simulation mode:
17:43 2. Generate the netlist:
18:08 3. Start the simulation:
18:44 Waveform explanation
