Rokuhan Turnout Control With Arudino

Описание: Any questions please message me or comment on this video!

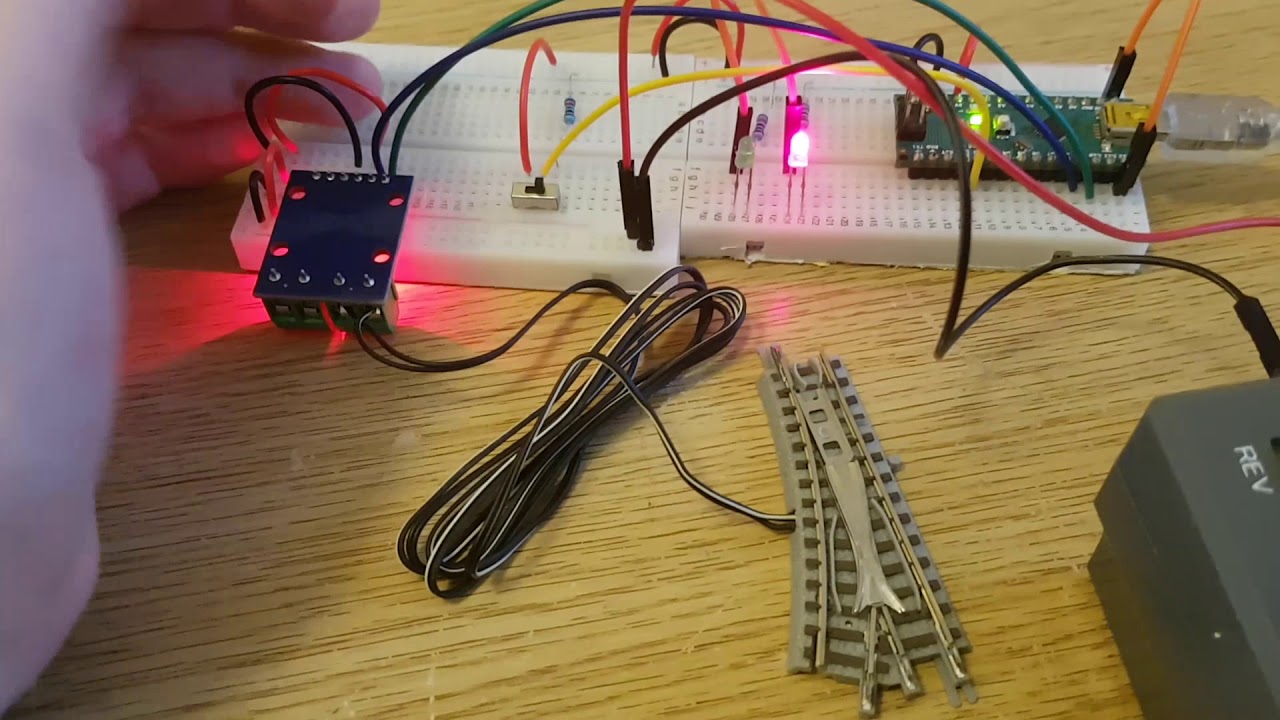

In this video I am controlling a Rokuhan R023 turnout with the side terminals of a Rokuhan RC02 train controller, L9110S dual motor driver and an Arduino Nano. I put batteries into my controller and soldered a Female header pin to the negative ends of a 9 volt battery clip on connector so that I can attach and detach them from the controller with ease. I also connected an external battery for a tablet to make this project fully portable.

Code, wiring and items used here:

https://docs.google.com/document/d/1I...

The non Rokuhan items should cost around $5 from Aliexpress.

DISCLAIMER: I am not affiliated with Rokuhan, Aliexpress and Arduino.

Post intro music: Bensound

TurnoutPulser is:
Copyright (c) 2016 Michael D K Adams. http://www.michael.net.nz/
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
