Mathcad Prime 7 Tips-75 (Circular Convolution of Circuit Voltage Response by Saw-wave Current.)

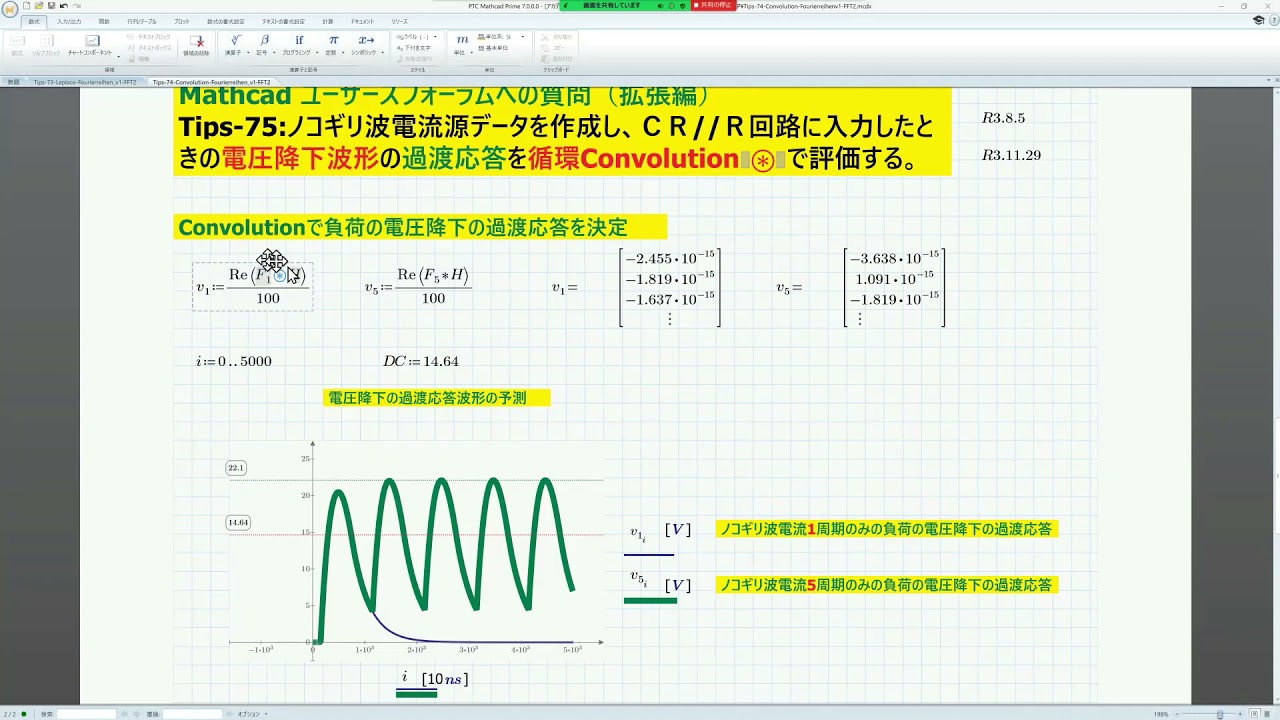

Описание: Tips-75 uses circular convolution to determine the circuit voltage response due to saw-wave current in Prime7. When the saw wave current pulse train created by Tips-41 was added to the CR//R circuit, the steady-note solution was Tips-44. Tips-73 solves this transient response analogue using The Laplace transformation. Tips-74 uses the Convolution operator to solve transient responses digitally. In This Tips-75, the circular Convolution operator can be used to easily calculate steady-state solutions without having to find a mathematical solution by digital calculation.
Tips-41 shows how to make saw waveform current.
Tips-44 shows the CR//R circuit response of this saw shape current wave by Fourier conversion.
Tips-73 shows the transient response of above circuit by Laplace transform techniques.
Tips-74 shows the one by convolution techniques.
And Tips-75 shows the one of circular convolution technique to solve the same answer for Tips-44.
