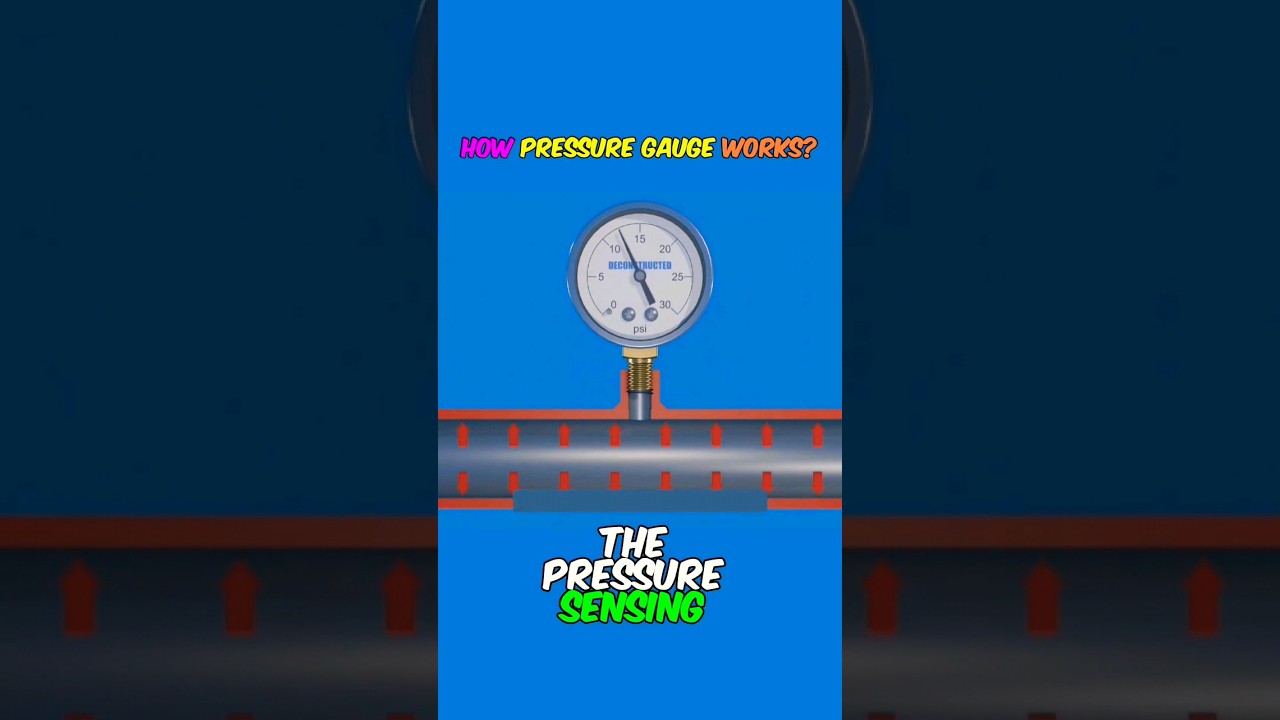

How pressure gauge works shown & working principles

Описание: The working principle of a pressure gauge revolves around the conversion of pressure into a mechanical motion, which is then translated into a readable measurement on a dial. Pressure gauges are essential instruments used in various industries to monitor and control pressure levels in systems such as pipelines, boilers, hydraulic systems, and pneumatic systems.

At its core, a pressure gauge consists of several key components: a sensing element, a mechanism for converting the sensed pressure into mechanical motion, a transmission mechanism, and a display dial.

1. Sensing Element:
The sensing element of a pressure gauge is typically a flexible diaphragm, Bourdon tube, or bellows. These components deform under the influence of pressure changes. For example, when pressure is applied to a diaphragm, it deflects, and this deflection is proportional to the applied pressure.

2. Conversion Mechanism:
The deformation of the sensing element is converted into mechanical motion through a linkage system. In the case of a Bourdon tube, for instance, the tube tends to straighten when pressure is applied, causing its free end to move. This movement is then transmitted to a pointer or gear system.

3. Transmission Mechanism:
The mechanical motion produced by the conversion mechanism is transmitted to the pointer or gear system, which moves in response to changes in pressure. This movement is typically amplified and calibrated to ensure accurate measurement.

4. Display Dial:
The movement of the transmission mechanism is displayed on a dial calibrated with pressure units (e.g., psi, bar, kPa). The pointer indicates the pressure value corresponding to the position of the sensing element.

Types of Pressure Gauges:
Mechanical Pressure Gauges: These gauges rely on mechanical components to measure pressure and are suitable for a wide range of applications.
Digital Pressure Gauges: These gauges use electronic sensors to measure pressure and provide digital readouts. They offer features such as digital displays, data logging, and remote monitoring capabilities.
Differential Pressure Gauges: These gauges measure the difference in pressure between two points and are commonly used in applications such as filter monitoring, flow measurement, and HVAC systems.
Absolute Pressure Gauges: These gauges measure pressure relative to a perfect vacuum and are used in applications such as vacuum systems and altimeters.

Calibration and Accuracy:
Pressure gauges require periodic calibration to maintain accuracy. Calibration involves comparing the gauge readings to a known standard and adjusting them if necessary. Factors such as temperature, vibration, and mechanical wear can affect gauge accuracy over time.

In summary, the working principle of a pressure gauge involves the conversion of pressure into mechanical motion, which is then displayed as a readable measurement on a dial. Various types of pressure gauges exist, each suited to different applications, and periodic calibration is essential to ensure accuracy.
