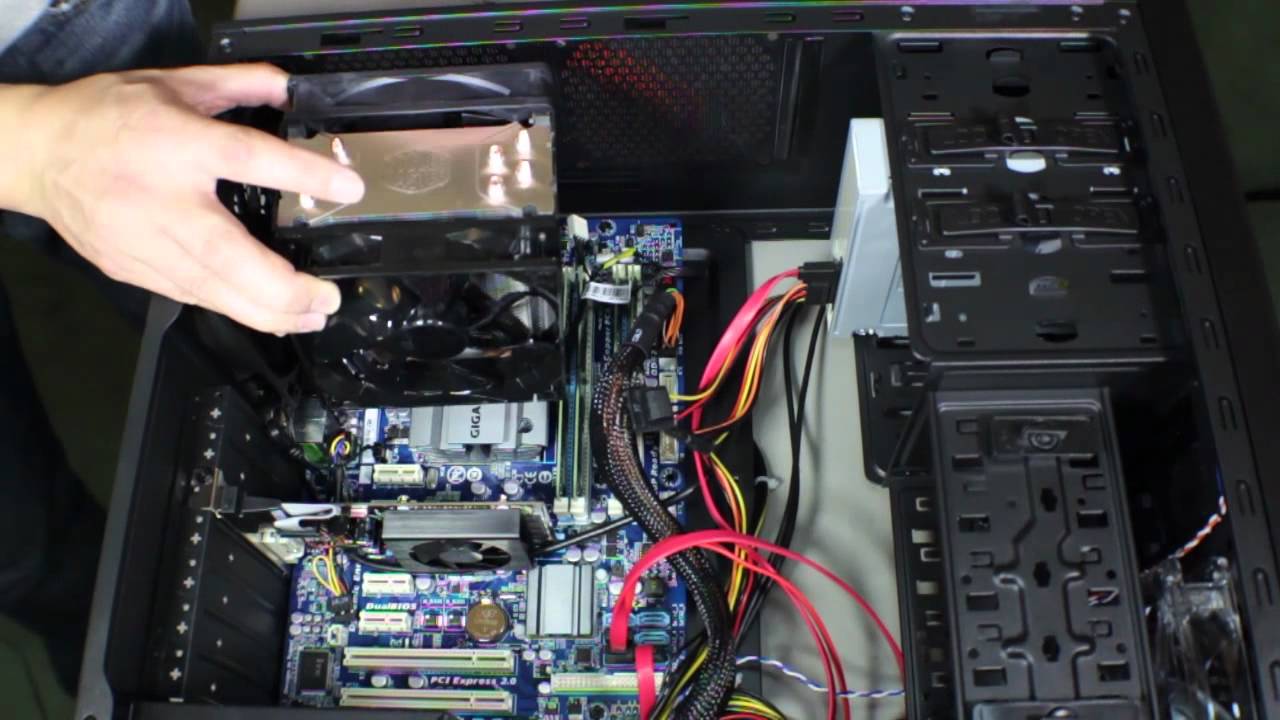

Installing an After Market CPU Cooler Fan - Cooler Master Hyper 212 EVO

Описание: Skip to fan assembly:
10:00


Skip to installing the back plate and cooler:
17:30

About this long video with so much talk:
Most of my videos are have a lot of talk in them. All that unnecessary info is necessary for many actually. I know this because it is coming from questions that many people often ask me. So it is sort of a compilation of many different answers to those questions.

Cooler Master Hyper 212 EVO CPU Cooler:
http://j.mp/H3JToZ

Cooler Master Hyper 212 Plus
http://j.mp/H3JTWe

Cooler Master BladeMaster 120mm PWM
http://j.mp/H3JZgC

Cooler Master Computer Case Cooling
http://j.mp/H3K1oJ

Corsair SP120 Quiet Edition:
http://j.mp/1aWzFaR

Corsair AF120 Quiet Edition:
http://j.mp/1aWzZGM

The case I am using is the Cooler Master 430 Elite:
http://j.mp/1426Rd0

Fan Speed Limiter:
http://j.mp/15r8bsH


For those of you who don't really care about looks, pickup this 4 pack of 120mm fans. Not only can you add a second fan to the cpu cooler, you can add more fans to the rest of your case. It is a really good deal!: http://j.mp/LInYoo



Fan types:

The common cooling fans used in computers use standardized connectors with 2 to 4 pins. The first two pins are always used to deliver power to the fan motor, while the rest can be optional, depending on fan design and type:

Ground
Power - +12 V
Sense - a tachometer that measures the actual speed of the fan as a pulse train, frequency being proportional to speed. With each fan rotation, there are two pulses sent through this pin.
Control - PWM signal Pulse-width modulation), gives the ability to adjust the rotation speed on the fly without changing the input voltage delivered to the cooling fan

Cooling fans equipped with either 2 or 3 pin connectors are usually designed to accept a wide range of input voltages, which directly affects the rotation speed of the blades.
