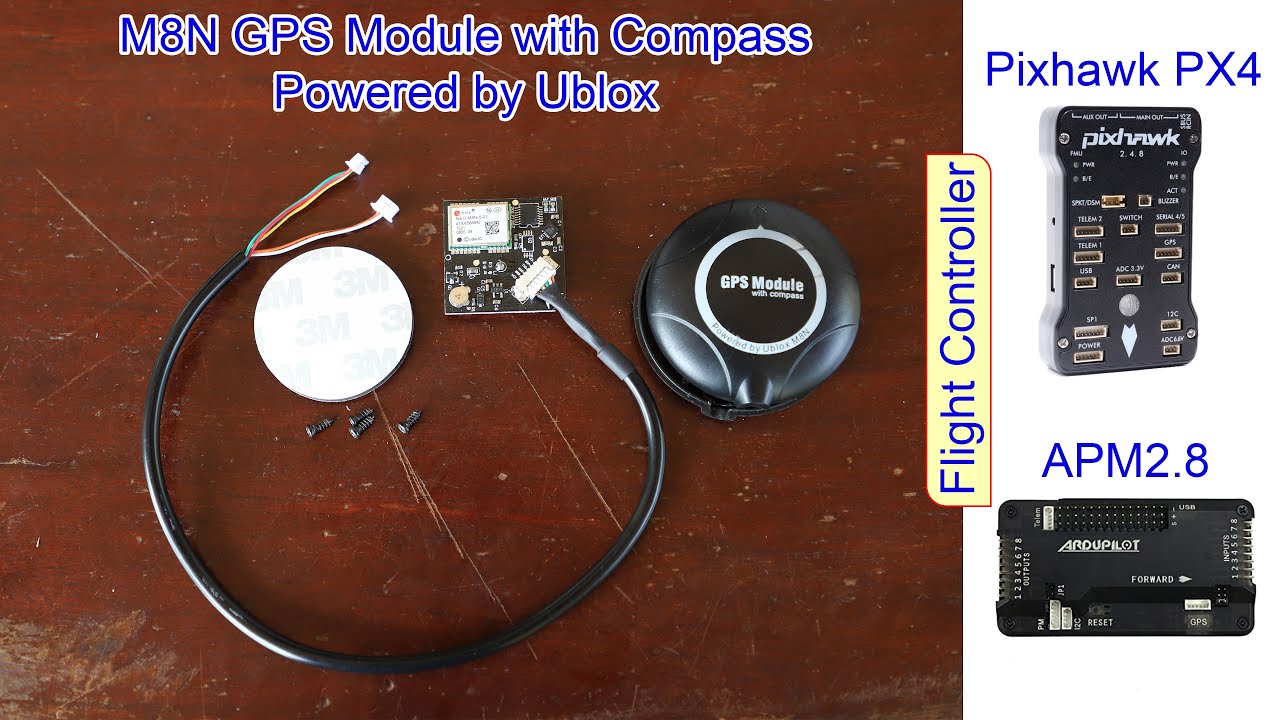

M8N GPS Module with Compass Powered by Ublox

Описание: #ChhonDigital #ChhonCreation #chhonchhaom #chhonchhaomtech #drone #aircraft #ublox #dji #air2s #gps #apm #pixhawk
Flight Controller GPS Module With Compass Ublox NEO M8N for APM2.8 APM 2.6 Pixhawk4 Flight-Controller By DIY RC Parts
Features:

NEO-M8N GPS Module
Receiver type 72-channel u-blox M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: -167 dBm
Cold starts: -148 dBm
Hot starts: -156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q),
Crystal (NEO-M8M)
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for lowest noise figure (NEO-M8N/Q)
Anti jamming Active CW detection and removal.
Extra onboard SAW band pass filter (NEO-M8N/Q)
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (NEO-M8N)

Specifications:
GPS line order:
Black wire: GND (Ground)
Green wire: TX (Transmit)
Yellow wire: RX (Receive)
Red wire: + 5V (Volt)
White wire: SDA (Serial Data)
Orange wire: SCL (Serial Clock)
Diameter: 53mm/2.1 inch
Delivery size: 93 x 132mm/3.7 x 5.2 inch
Net weight: 31g

Package Included:
1 x NEO-M8N GPS Module
1 x Two-sided sticker
