Hilbert FIR Filter for 90 Degree Shift using Python
Автор: NA5Y
Загружено: 2022-02-19
Просмотров: 3469
Описание:
I have been looking for an alternative to the awesome Iowa hills filter software for some time to generate the FIR coefficients for 90 degree phase shifting. I came across this video
• Hilbert Transform and Instantaneous Frequency
Which explains in steps how to create a Hilbert filter and associated delay line using Matlab.
Charlie's original video:
• Homebrew SDR SSB Rig - Part 6a Hilbert Tra...
I adopted this approach in python using the scipy.signal library here:
https://github.com/thaaraak/ESP32-Ard...
This video is a quick walkthrough of that code and a demonstration of the filter created using my previous ESP32 based audio processing here:
https://github.com/thaaraak/ESP32-IQ
0:00 Intro and why I am looking for an alternative to Iowa Hills
0:53 The Hilbert Filter + Delay Line approach
2:00 Python Hilbert generator Code walkthrough
4:22 Creating a sample filter
5:05 Looking at the frequency response of the filter

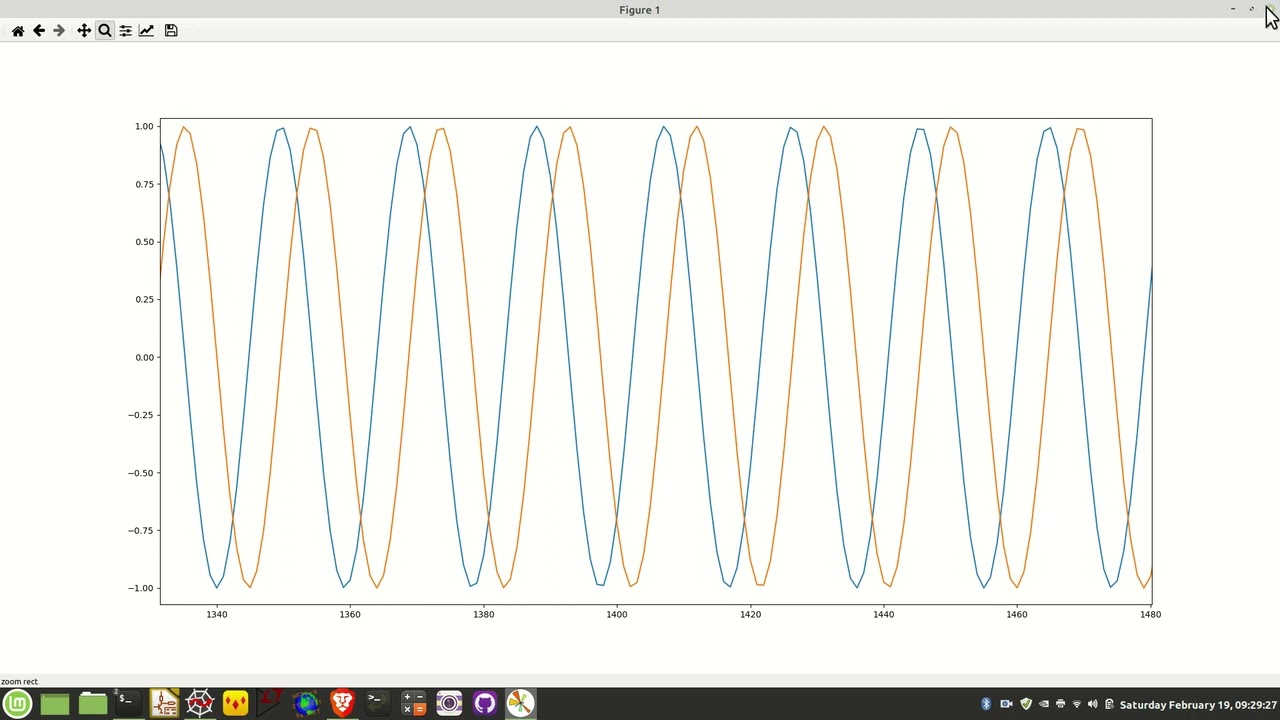

5:35 Convolving a sample sine wave through the Hilbert and Delay line
7:21 Using the coefficients created in an ESP32 based audio processor
8:19 Looking at the output on the oscilloscope
