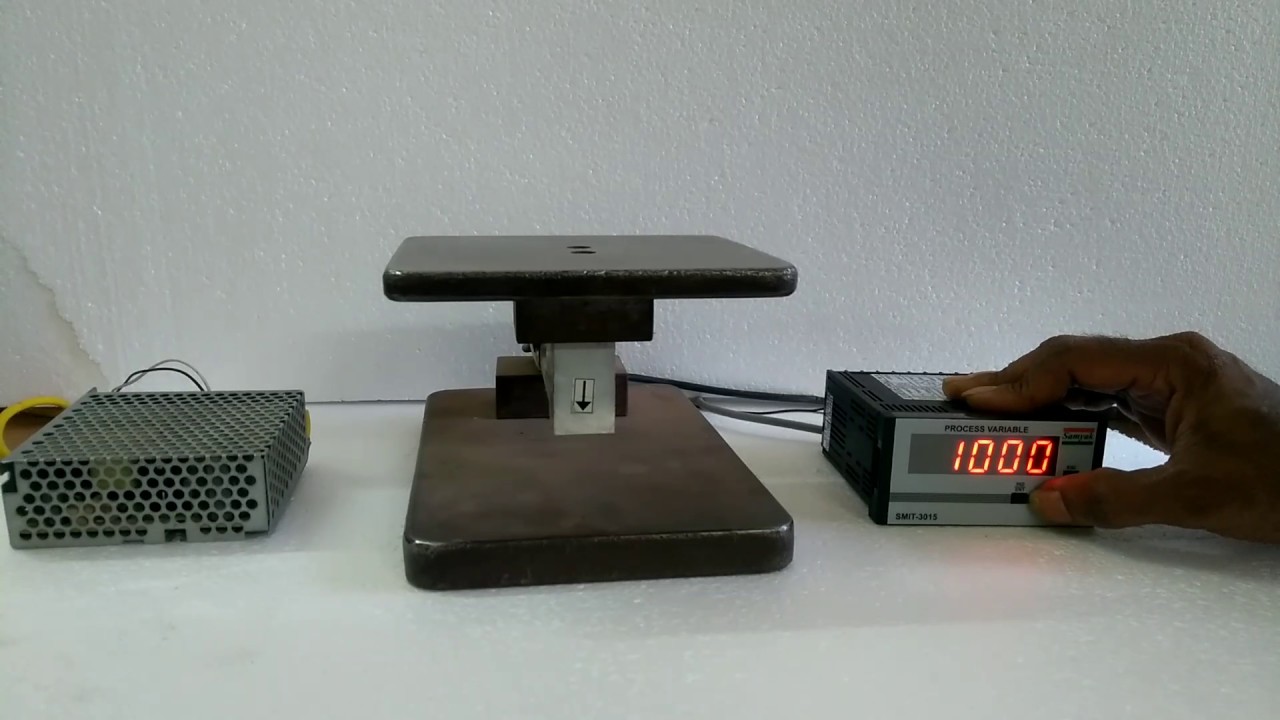

Weight Indicator SMIT 3015 Output calibration (4-20 mA)
Автор: Samyak Instrumentation Pvt. Ltd.
Загружено: 2017-04-15
Просмотров: 16321
Описание:
Please follow above steps to do Load cell Calibration and Analog Output Calibration of Samyak Instrumentation Pvt. Ltd. Weight Indicator SMIT 3015.
Connection Details:
Power supply connection:
Terminal 1 : + 24 VDC
Terminal 2 : COMMON
Terminal 3 : Earthing
Load Cell wire connection:
Terminal 4 : Shield
Terminal 5 : Sense + (Green Wire)
Terminal 6 : Sense - (White Wire)
Terminal 7 : Excitation + (Red Wire)
Terminal 8 : Excitation - (Blue/Black Wire)
RS485 / RS232 Serial Connection:
Terminal 11 : D - / Txd
Terminal 12 :D + / Rxd
Terminal 13 : COMMON
Analog output :
Terminal 9 : Positive +
Terminal 10 : Positive -
MODBUS Connection RS232 / RS485
Terminal 11 : D- / Txd
Terminal 12 : D+ / Rxd
Terminal 13 : COMMON
Digital Input Connection:
Terminal 15 : 24 VDC
Terminal 16 : Tare
