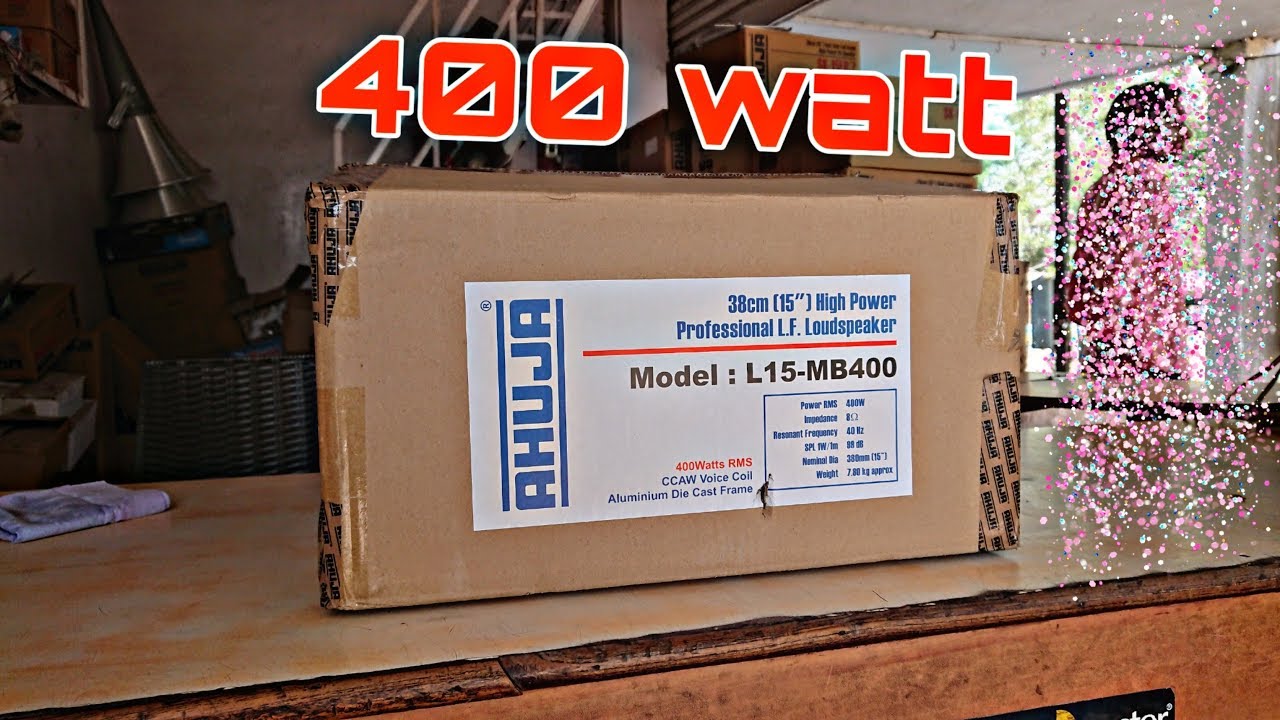

AHUJA L15-MB400 PROFESSIONAL PA SPEAKERS UNBOXING & REVIEW
Автор: PUBLIC SOUND SYSTEM
Загружено: 2019-04-14
Просмотров: 95038
Описание:
L15-MB400
400 WATTS
Professional PA Speaker
Excellent low and mid frequency response.
Ideal for high power 2-Way Speaker Systems.
Triple roll, exponential cone geometry.
High temperature copper clad aluminium wire voice coil wound on polyamide former.
SPECIFICATIONS
Power Rating
400W RMS
Nominal Diameter
380mm (15”)
Nominal Impedance
8Ω
Sensitivity (1W/1m )
99dB
Magnet Weight
2.31kg
Resonant Frequencey (Fs)
40Hz
DC resistance (Re)
6.5Ω
Electromagnetic Q (Qes)
0.41
Mechanical Q (Qms)
8.0
Total Q (Qts)
0.39
Compliance Equivalent Volume (VAS)
168Litr
Surface Area of Cone (Sd)
855cm2
Reference Efficiency (ηo)
2.72%
Voice Coil
3.0”
Moving Mass (Mms)
91gm
BL Product (BL)
18TM
Coil Inductance (Le)
1.1mH
Overall Diameter
389.5 mm
Depth
157 mm
Baffle Hole Diameter
350 mm
Bolt Mount Diameter (PCD)
369 mm (8 Bolts)
Weight
7.8kg
#AHUJA #400WATT #MIDBASS
