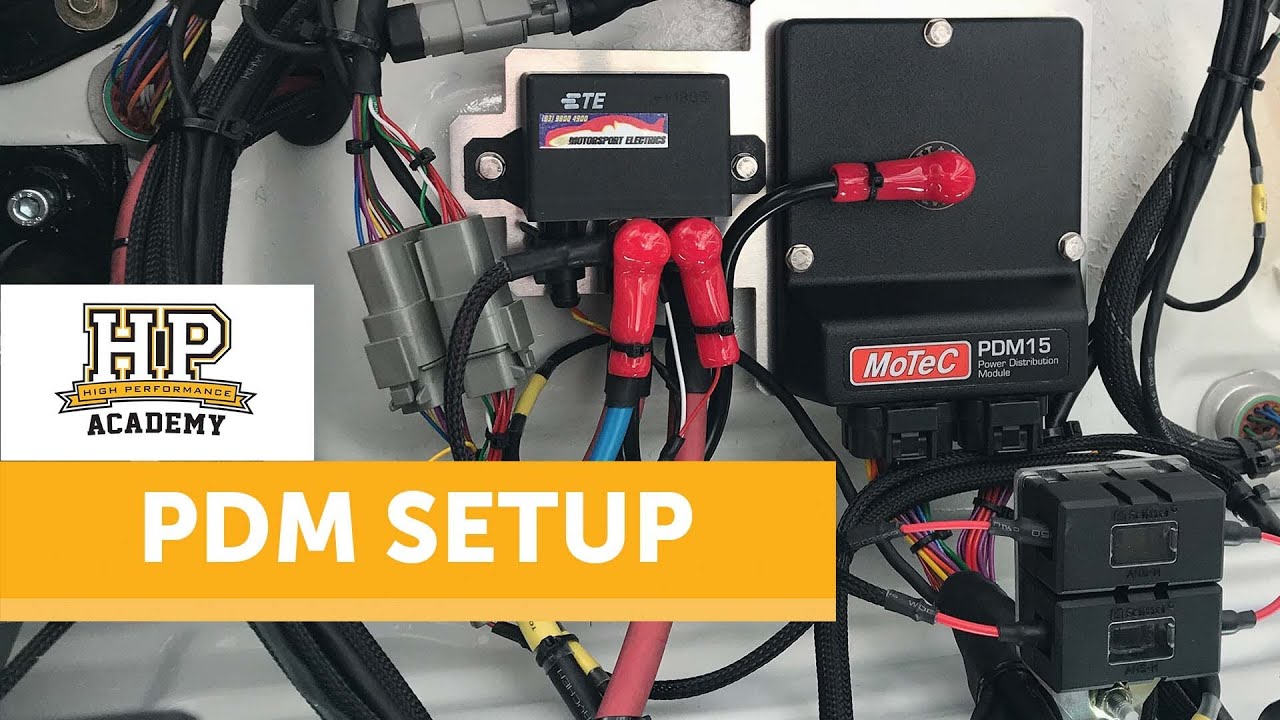

Bare Essential Wiring | Basic PDM Setup

Описание: 🦸‍♂ Building a fast car? Get $400 OFF the all-inclusive VIP online course package deal: https://hpcdmy.co/vipy98
⚡ 50% off your first online wiring course! Get the knowledge and confidence you want. Enrol today: https://hpcdmy.co/offery98

Ripping all your OEM wiring out and starting from scratch is a common wish, but is often seen as a daunting task when it comes to deciding what a 'bare essential wiring' setup looks like.

1 of 36 modules from the full PDM Setup and Configuration course: https://hpcdmy.co/pdmuyt

Using a street legal track car as the example Zac runs us through his 'bare essential' wiring list and how the ties into your PDM setup, with a quick note on how your ignition key actually works so you can ensure you wire the right components to the right pins with a full understanding of why.

NOTE: Our laws might be different so this is just a guide, not an instruction on what YOU do or don't need legally, and of course if you have a track dedicated car your rule book is what you should consult regarding requirements, particularly lighting.

WHAT IS A PDM?

A power distribution module (PDM), power management unit (PMU) and power distribution unit (PDU) are all the same thing with different names, much like how variable cam control is called something different by each different car manufacturer.

Over the last few years we’ve seen PDMs become more popular and more affordable which means we’re seeing them pop up in more and more cars running at the grassroots level. These units replace the conventional fuses and relays we need to control and protect the various electrical circuits on our car with solid state electronics to control current flow. This dramatically simplifies the wiring installation and can also improve reliability. With a conventional fused circuit, if the current is excessive then the fuse will blow to protect the components and you need to stop and replace the fuse to get going again.

With a PDM the fusing current can be adjusted in software and the unit will simply shut off the circuit if the fusing current is exceeded. The smart part however is that you can then configure the PDM to wait a specific amount of time before retrying the circuit that just failed. You can also set how many times the circuit will retry before failing permanently. This can often be enough to nurse a car with a failing electrical part back to the pits for repair. It’s also possible to log and display the current draw on each circuit so you can see exactly what’s going on with every part of the electrical system.

At this point a PDM is still going to end up more expensive than using fuses and relays but when weighing up options most enthusiasts overlook the cost involved with mounting and wiring the relays and fuses. When you factor that in, upgrading to a PDM often isn’t going to cost substantially more and by the time you consider the advantages it can start to look pretty attractive.
------------------------------------
TIME STAMPS
0:00 - Minimal Wiring: Theoretical Situation
1:37 - Device Example List: https://hpcdmy.co/pdm-example-list
2:27 - Sensors - ECU Is Separate
2:53 - Current Draw - Generic Values
11:37 - PMU/PDM Inputs & Control Functions
12:15 - [SIDE NOTE] Ignition Operation
17:00 - Back To Inputs & Control Functions
17:25 - Starter Solenoid
17:29 - Fuel Pump & Cooling Fans
17:50 - CAN Bus Communications
18:13 - Lighting - Indicators, Hazard, Dip and Full, Brake, Reverse, License Plate
22:07 - 'And' Function Usage
23:02 - Wiper, Washer and Horn
23:42 - Hope This Helps!
24:02 - Link Below (Lies! It's actually above)
24:15 - Just A Small Bit Of Knowledge From A Full PDM Course
------------------------------------
