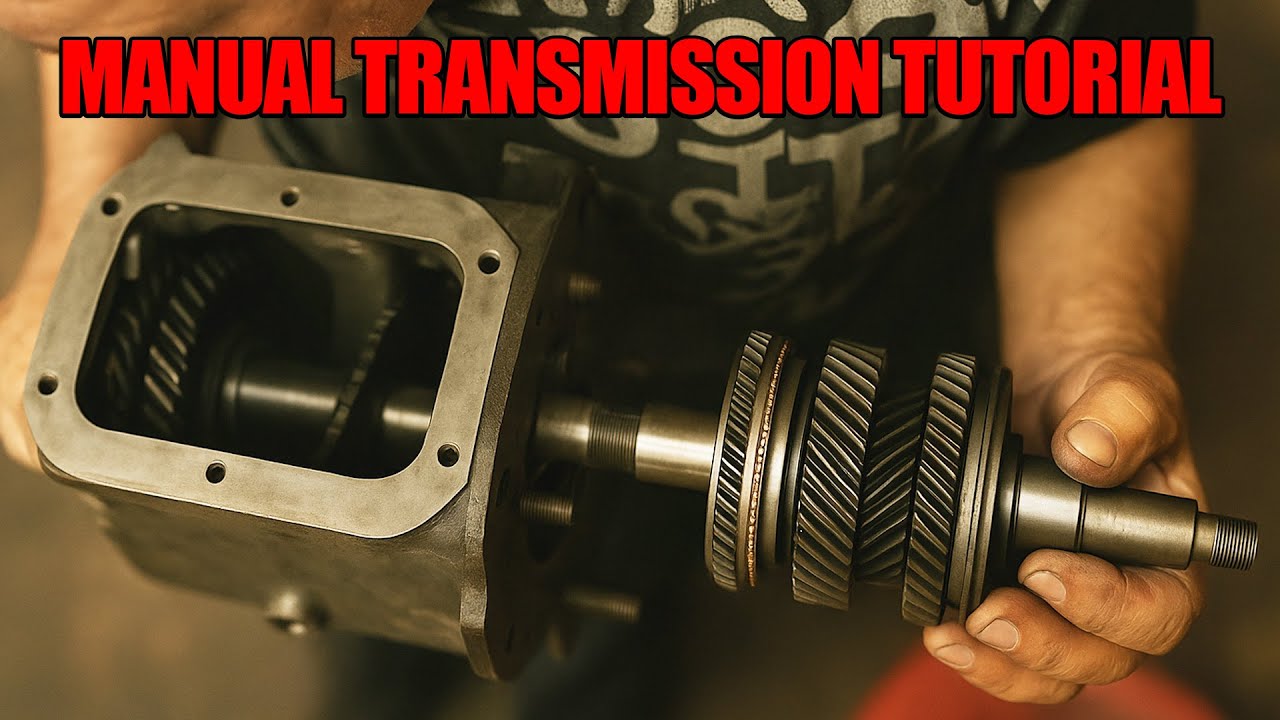

Step-by-Step Manual Transmission Assemble | Professional Auto Repair Training

Описание: Want to know how a manual transmission is assembled the right way — just like in a real workshop?
This professional auto repair training breaks down every step, every part, and every common mistake.👇
In this video, you’ll learn the complete step-by-step manual transmission assembly process, explained clearly and professionally for real-world auto repair training.
This training-style video covers everything from initial inspection to final testing, making it perfect for:
Auto repair students
Beginner and advanced mechanics
Anyone serious about professional transmission work

Step-by-Step Manual Transmission Assemble
1️⃣ Preparation & Inspection
Before assembly begins:
Clean all transmission components thoroughly using parts cleaner
Inspect the transmission case for:
Cracks
Corrosion
Warping
Check gears, bearings, shafts, and synchronizers for wear or damage
🔧 Training Tip:
In professional auto repair training, most transmission failures start with poor cleaning or skipped inspection.
2️⃣ Install Bearings and Races
Lightly lubricate new bearings before installation
Use a press or proper bearing installer (never strike directly with a hammer)
Ensure each bearing is fully seated and square in its bore
⚠️ Common Mistake:
Improperly installed bearings cause whining or growling noises after assembly.
3️⃣ Assemble the Input Shaft
Install the following components in the correct order:
Gears
Needle bearings
Spacers
Synchronizer assemblies
📌 Important:
Pay close attention to:
Gear orientation
Snap ring placement
Correct synchronizer direction
Incorrect order or orientation will prevent smooth shifting.
4️⃣ Assemble the Countershaft (Layshaft)
Install gears in proper sequence
Do not forget thrust washers and spacers
Measure shaft end play using a feeler gauge or dial indicator
🎯 Auto Repair Training Standard:
End play must meet factory specifications to avoid premature failure.
5️⃣ Assemble the Main Shaft (Output Shaft)
Install:
Gears
Synchronizer hubs and sleeves
Springs and detent balls
⚠️ Critical Point:
Incorrect synchronizer installation can cause:
Hard shifting
Gear pop-out
Complete transmission failure
6️⃣ Install Shift Forks and Shift Rails
Each shift fork must match its specific gear
Install detent balls and springs carefully
Manually shift through all gears to verify smooth movement
🧠 Training Check:
If the gears do not shift smoothly by hand, do not continue assembly.
7️⃣ Transmission Case Assembly
Apply RTV sealant or install a new gasket
Carefully lower the case over the assembled shafts
Tighten bolts in a crisscross pattern
Torque bolts to factory specifications
🔩 Proper torque is critical in auto repair training best practices.
8️⃣ Install Seals and Covers
Install new input and output shaft seals
Use seal installers to prevent damage
Install covers and inspection plates
🚫 Reusing old seals often leads to oil leaks and rework.
9️⃣ Fill with Gear Oil
Use the manufacturer-recommended gear oil
Fill to the correct level
Rotate shafts by hand to distribute oil
🔟 Final Inspection and Testing
Before installing the transmission into the vehicle:
Rotate shafts to check for smooth operation
Shift through all gears
Listen for abnormal noises
Verify there is no binding or resistance
🎓 Professional Auto Repair Training Rule:
A transmission is not complete until it passes manual bench testing.
