Getting Started with the ZNL – Compression Measurements
Автор: Rohde & Schwarz
Загружено: 2025-02-04
Просмотров: 722
Описание:
The Rohde & Schwarz ZNL vector network analyzer can be used to make measurements of gain compression and calculate compression points (e.g. P1dB) through its intuitive user interface. This presentation provides step by step instructions on how to make gain compression measurements, including explanations of the relevant configuration parameters and typical measurement results.
Learn more about Rohde & Schwarz ZNL vector network analyzer: http://rsna.us/6051Ura2X
Timeline:
00:00 Introduction
00:16 Suggested viewing
00:35 Review of compression measurements
01:37 Power calibration
02:35 Gain compression test setup
03:35 Configuring power sweep parameters
04:08 Basic gain compression measurement results

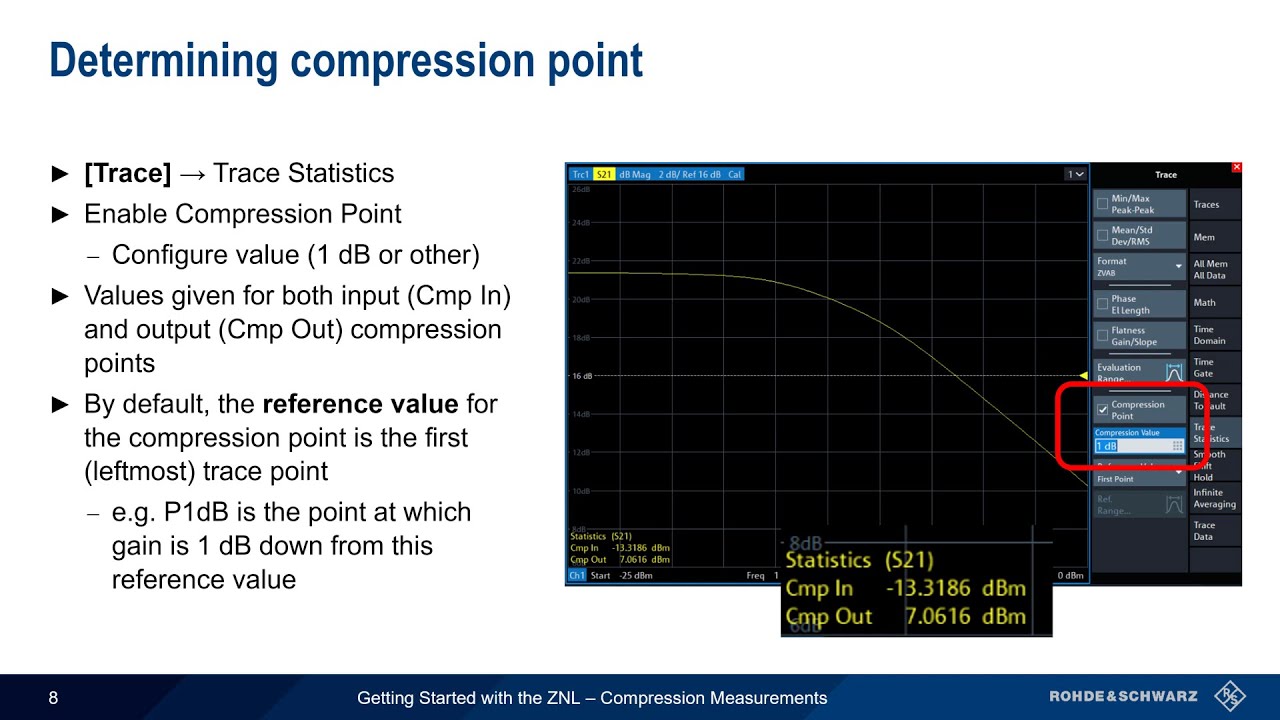

04:37 Determining compression point
05:26 Defining the reference using a marker
05:59 Defining the reference using a range
06:27 Configuring the (optional) receiver step attenuator
07:13 Summary
