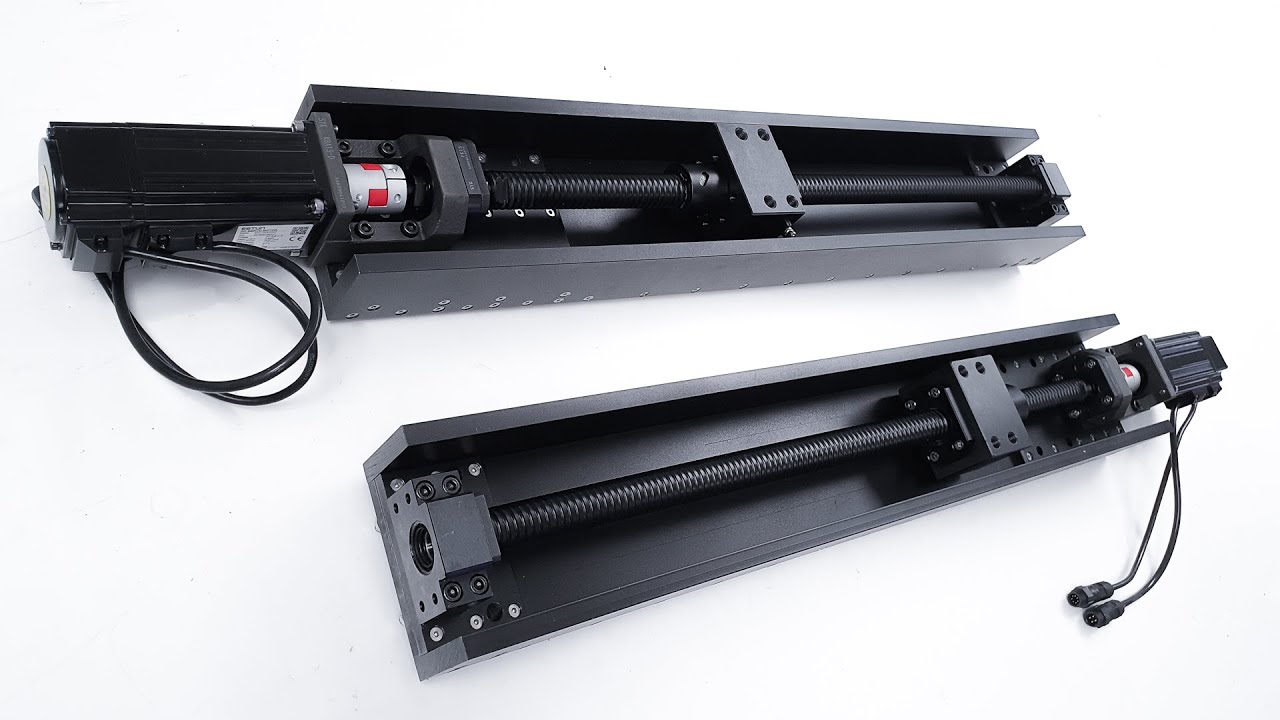

EPIC CNC upgrade - episode 2. more exotic parts and building ultra rigid Y axis module
Автор: Piotr Fox Wysocki
Загружено: 2020-09-05
Просмотров: 26786
Описание:
In this episode i will build ultra rigid and precise Y axis module for my granite cnc with the top of the shelf components. ground ball screws, precision motor mounts, motion control products servos and so on.
links to the sites i got my parts from:
https://www.motioncontrolproducts.co....
maxtenso on aliexpress:
https://maxtenso.aliexpress.com/store...
dy-global on ebay:
https://www.ebay.com/str/industrialpa...
parts list showed in this episode with prices:
THK NNB BNFN2005EFM-2.5RRG0-399LC5F Z Axis Ground Ball Screw BSC-I-543=1D65 - US $249.90
TBI NNB DFDR2505DRD-719.5L double nut Ground Ball Screw 2505+719 BSC-I-715=1M21 - US $200
Schneeberger Roller Linear Guide Bearing MRC25G2-V2+1000L 2R4B Used MONORAIL MR - US $449.90
THK Preload Ground Ball Screw Used DIK2510-4+1105L support unit CNC router - US $299.90
IKO Used LRX20+360mm 2Rails 4Blocks ROLLER LM GUIDE THK SRG20C CNC Router - US $269.90
SYK Nut Bracket MGD25 - US $49.97
SYK support unit FK15 - US $56.22
SYK support unit BK15 - US $70.34
SYK Motor Bracket MBA15-D - US $40.62
MTO Coupling GFC-30x35 - 12x14 - US $11.08
MTO Coupling GFC-30x35 - 15x14 - US $11.08
total US $2,886.82
