Select Matched Transistors Pairs Using a Curve Tracing Technique using the Digilent Analog Discovery
Автор: Aaron Dahlen
Загружено: 2023-08-17
Просмотров: 1666
Описание:

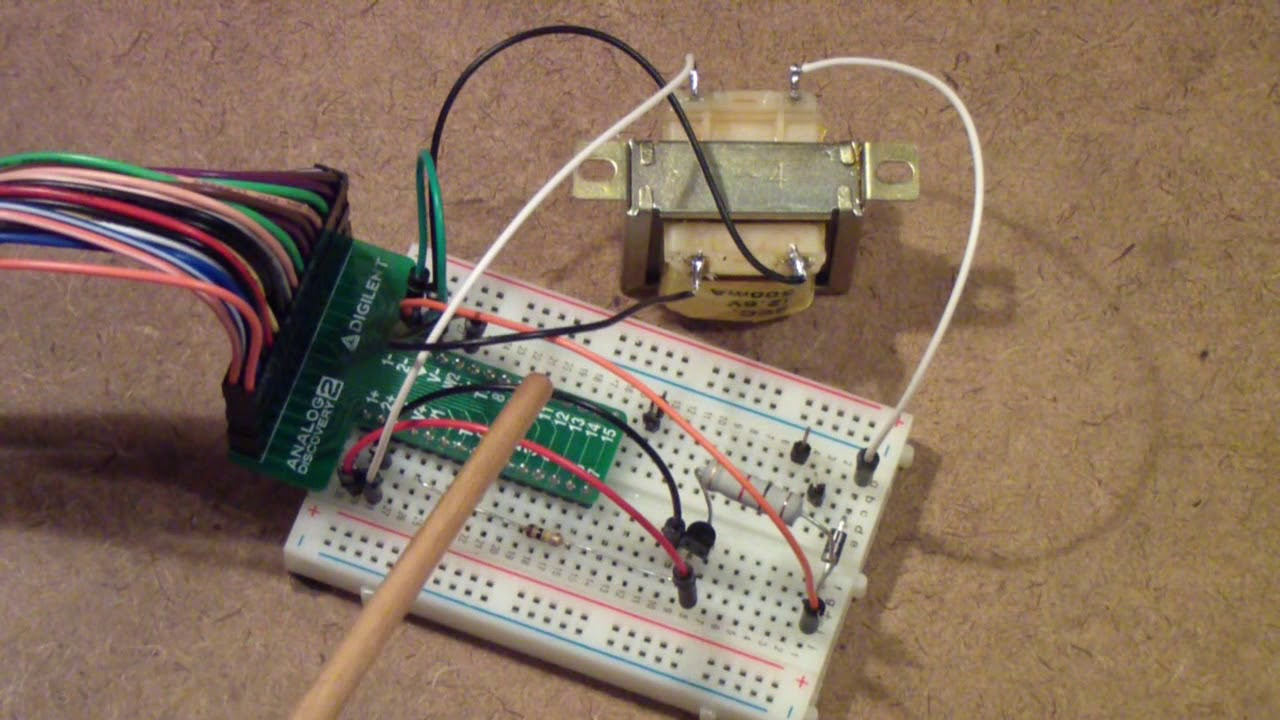

Learn how to select matched transistors using the Digilent Analog Discovery and WaveForms software in this hands-on demonstration. Watch as we we select a matched pair of MPSA06 NPN transistors. The matched pair could be used in a long-tailed pair for an audio amplifier or a analog synthesizer. The electronics enthusiast could also use the matched pair to improve a DIY op-amp and gain a deeper appreciation for analog circuit design.
Be sure to view the prerequisite video for a lesson in configuring the Analog Discovery: • Setting Up the Analog Discovery as a Trans...
Video highlights:
match based on the transistors family of curves.
store a curve for each transistor.
match visually by comparing the stored curves.
