Cracked Telescopic Cylinder Weld Repair | Machining & Welding

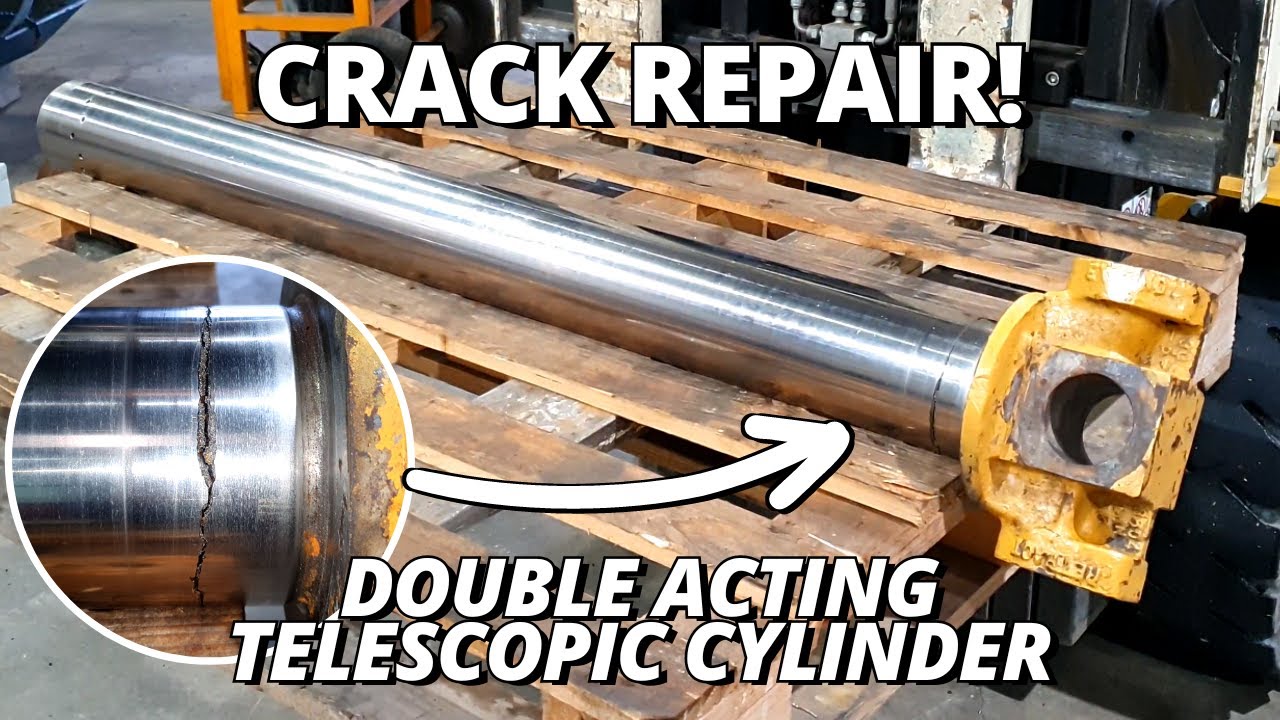

Описание: We’re going to attempt a repair that we have never done before! In this video we need to repair a cracked double acting telescopic hydraulic cylinder that has a crack right around one end of the rod. This rod is from the ejector cylinder off a Caterpillar 657 Twin Drive Scraper. We show the step by step process to do the repair. First we start with the disassembly of the rod by machining in the lathe and we remove the head and inner tube from the rod. We then perform a dye penetrant crack test to check if the inner tube is cracked. We then complete the reassembly of the rod and weld the parts back together before TIG welding the end of the inner tube onto the cylinder rod. It’s another successful repair and we’ve saved our customer a lot of money with this one!

In this video we are using:
TM-26120G Centre Lathe
WIA 500i Weldmatic welder
UniMig 200 AC/DC Tig welder
