DIY lab bench power supply using ATX PSU
Автор: Engineer DIY
Загружено: 2021-04-20
Просмотров: 5505
Описание:
This DIY lab bench power supply is made from an old ATX PSU and some useful modules . For me as a DIYer ,having a lab bench power supply is very important for us to charge almost all kinds of batteries and power our DIY projects .

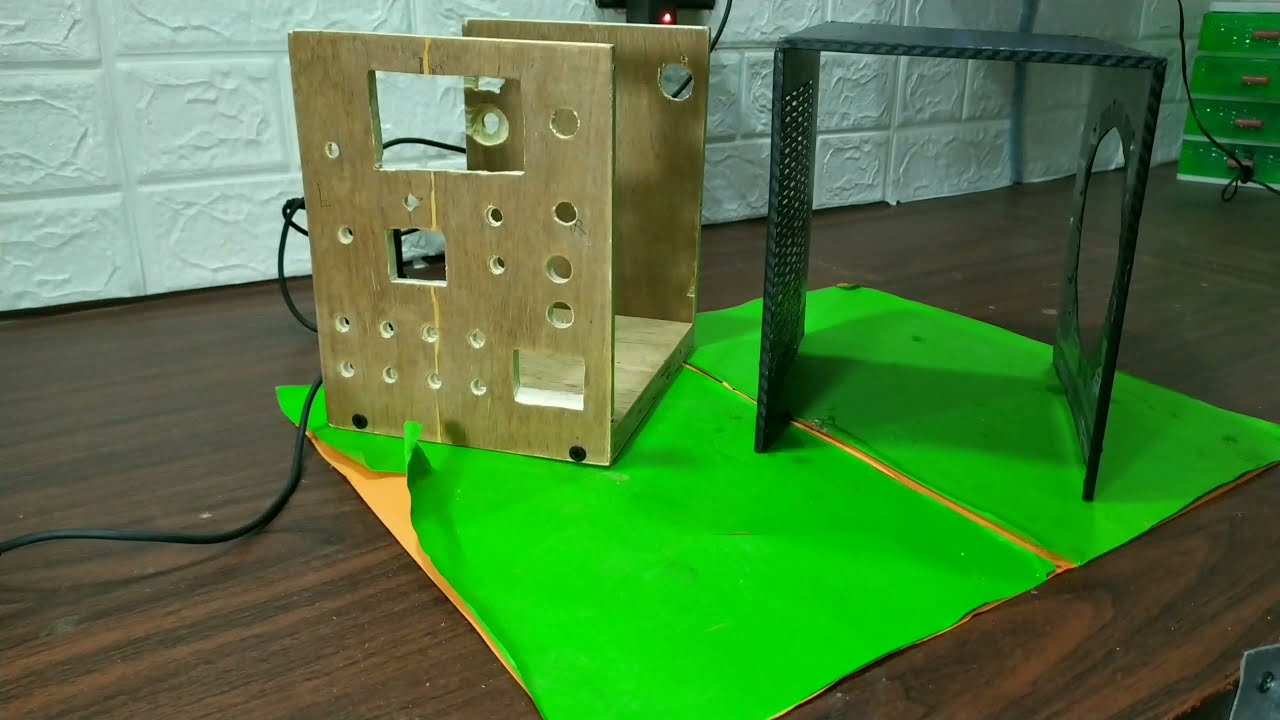

1:11 to 20:09 casing fabrication
20:59 back panel wiring
23:58 final wiring
29:46 cooling system
33:55 load test
if you want to build exactly like this you can download all the designs and circuits diagram , the link is available down below for those who will subscribe, just wait for an hour after you comment below for confirmation ,please subscribe like and comment for some clarifications and queries.
https://drive.google.com/folderview?i...
have a chance to win all the components mga ka diy just count all the pop-up text na makikita sa lower left ng inyong screen and icomment lang po sa ibaba kung ilan lahat, free shipping ko po nationwide. salamat po
meterials list and link:
V,A,W- meter-------- https://shopee.ph/product/201062777/5...
heat shrinkable tube-- https://shopee.ph/product/201062777/5...
buck-boost converter-------- https://shopee.ph/DC5-30V-to-1.25-30V...
200k multi turn potentiometer-------- https://shopee.ph/Potentiometer-1~500...
RGB fan----- https://shopee.ph/product/19953826/11...
temperature controller----- https://shopee.ph/product/176388064/4...
SPDT toggle switch----- https://shopee.ph/Toggle-Switch-Mini-...
DC female jack-------- https://shopee.ph/product/181812905/6...
DC out (speaker terminal)------ https://shopee.ph/product/8710520/187...
terminal block------- https://shopee.ph/product/8710520/761...
3 pcs relay----- https://shopee.ph/product/8710520/290...
round switch----- https://shopee.ph/product/50656178/95...
binding post------ https://shopee.ph/10PCS-4mm-Banana-So...
fuse holder----- https://shopee.ph/Fuse-holder-Small-o...
