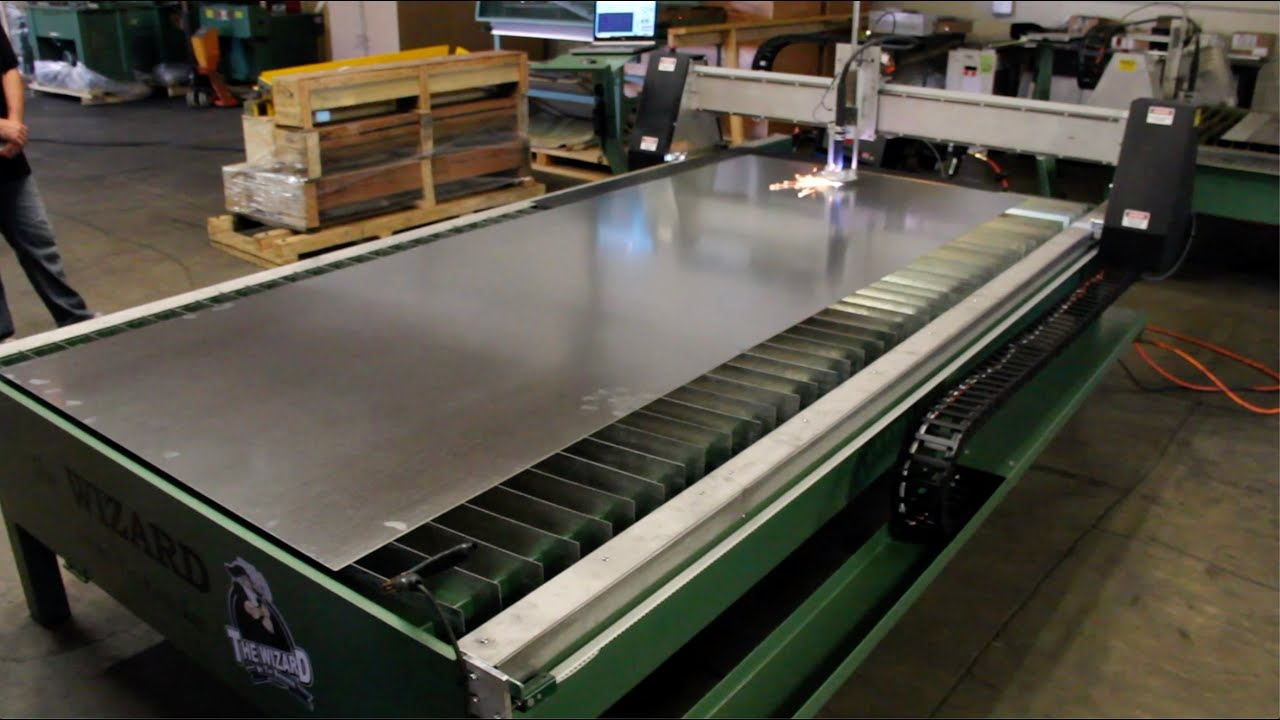

The Tin Knocker Wizard 5×10 HVAC Plasma System

Описание: Demonstration: Tin Knocker Wizard 5×10 HVAC Plasma System

The Wizard plasma cutting system was developed specifically for the HVAC contractor/fabricator. It is designed to do all that a user could want and meet the user’s budget. Nothing has been sacrificed except cost to our customer. YOU WILL NOT FIND GREATER VALUE IN A NEW PLASMA MACHINE!

CUTTING TABLE FEATURES
Heavy duty 5’x10′, all welded steel construction capable of a 2000 lb load (full sheet of 1″plate)
2 1/2″ x 60″, 16 ga. slats for economical replacement
Efficient down draft exhaust design, activated & deactivated automatically as cutting starts & stops
Hinged clean out doors at both ends makes cleanout easy. Slat removal not necessary.
X-axis has dual drive motors and simple maintenance free roller guides for smooth travel.
Y-axis has low maintenance V Groove Wheels and Rails
Homing feature that automatically squares the gantry
Direct drive, high torque motors to eliminate position error
Solid 4″x 6″ thick wall tube gantry
Aluminum gantry construction means less moving weight, great acceleration and enhanced repeatability
Gantry drive with 3/4″ wide rust and grease free, industry proven open gear belt drive used on robotic applications
Drive system delivers position repeatability of approx. +/- .0005in
Cutting speed 300ipm, rapid speed 600ipm
Gantry has been tested to speeds of 1000 IPM
Precision Drop Head Control
Magnetic break away torch protection

The Wizard plasma cutting system was developed specifically for the small to medium size HVAC contractor. The Wizard is a full featured machine with all the capabilities of the more expensive plasma cutting systems, but is affordably priced.

The TK Wizard Plasma Table: Proudly Built in the USA, with domestic and foreign components.

Available from your local distributor.
