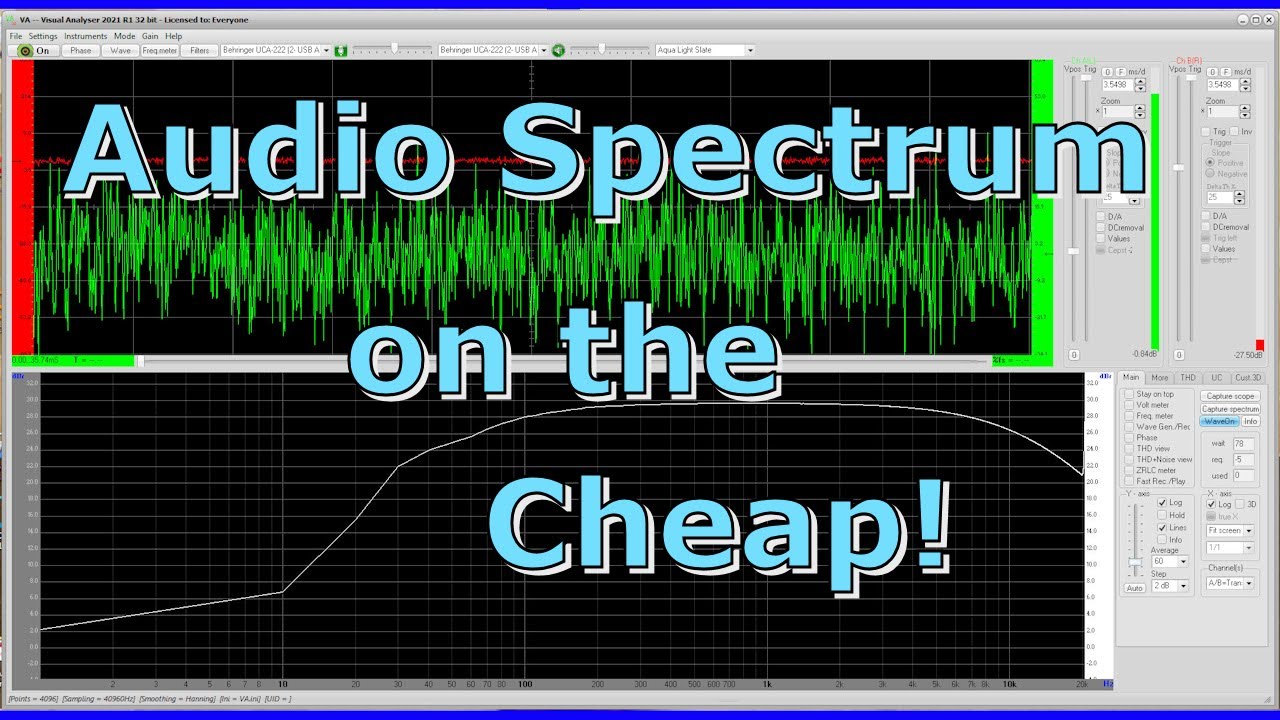

Audio Spectrum Analyzer on the Cheap (032 )

Описание: Audio Spectrum Analyzers (Signal Analyzers) are expensive.
Measuring the frequency response of an audio device by the manual method is tedious and time consuming.
Setting the frequencies of a Graphic Equalizer without special equipment is a tough project at best.

In this video I am going to show you a quick and inexpensive way to accomplish all of these things using an inexpensive USB Audio Interface, some FREE software and your computer.

Here is the link to the download site for Visual Analyzer:
https://www.sillanumsoft.org/download...

Here is the link to where to buy a Behringer UCA-222
https://www.sweetwater.com/store/deta...

Here are the promised links to the UCA-222 Driver and Instruction Manual:
DRIVER DOWNLOAD: https://asio4all.en.softonic.com/down...
MANUAL & LOTS OF OTHER STUFF: https://www.behringer.com/product.htm...
I decided to NOT provide the actual files in a ZIP file so you can be assured to the get the latest and greatest from the manufacturer themselves.

Time Markers for Your Convenience
----------------------------
00:05 Initial comments and Introductions
01:12 What we need to do this...
01:15 Stereo Audio Input to our Computer
01:52 FREE Software
02:20 Setting Up the Computer
02:23 Install the Audio Interface Drivers
02:43 Install the Audio Interface itself
02:51 Prepare the Computer to work with a Stereo Input
05:17 Setting up the UCA-222 Stereo Interface
06:07 Setting up the Visual Analyzer Software
06:19 Point to the UCA-222 Input & Output
06:42 Configure for Transfer Function (Frequency Response)
07:01 Turn on Averaging
07:15 Change the Color associated with the Transfer Function
07:33 Set up the Signal Source (Waveform Generator)
08:31 Hardware setup for our test
09:27 DEMO: A Breadboarded Mixer
09:31 Hardware Introduction and Connections
10:33 Making the Frequency Response Measurement
10:34 Turn on the Waveform Generator
10:43 Turn on the Visual Analyzer
10:54 Setting the Signal Output Levels
11:20 Observe the Frequency Response
12:56 EXAMPLE: Audio System in an Auditorium
16:17 Final Comments and Toodle-Oots
-----------------------------
