Join James Myatt for a Full Review of the Latest Gemini WR880

Join us dockside for an in-depth look at the Gemini WR880, breaking down its standout features, performance capabilities, and industry-leading specifications. From its commercial-grade construction to its Twin Yamaha 250hp outboard engines, we discuss what makes this RIB the ultimate choice for professionals and VIP transport alike.

Walkthrough Video:    • Gemini 880 Full Walkthrough – Explore the ...
Performance Test Video:    • Gemini 880 Performance Test & Handling Rev...
Dockside Video:    • Gemini 880 Review – Features, Performance ...

Key Features:

Twin Yamaha 250hp outboard engines for ultimate power and efficiency
Deep V Offshore Commercial Hull finished in sleek black GRP
Black Hypalon 7 Chamber Tubes with heavy-duty strake protection
Ullman Biscaya Shock Mitigation Jockey Seats for superior comfort and safety
Black Stealth Composite T-Top for all-weather protection
Garmin Electronics & Radar Package for top-tier navigation
Dual 300L Aluminium Fuel Tanks for extended range
Black Commercial A-Frame with integrated rescue and dive equipment
Heavy-Duty Tube Upgrades including commercial-grade Hypalon and non-slip patches
ICOM Fixed & Handheld VHF Radios for reliable communication
Extreme 3500kg Dual Axle Braked Road Trailer for easy transport

Detailed Breakdown:

00:00 – Introduction
00:25 – Overview of the Gemini WR880: Design & Purpose
00:56 – Console & Electronics Package
01:26 – Layout, Seating & Storage
02:36 – Engine Performance, Handling & Fuel System
03:00 – Stern A-Frame & Engine Protection
03:30 – Tube & Hull Construction
04:21 – T-Top & Framework
04:37 – On-Water Performance & Trials
05:17 – Handling Performance
05:38 – Colourway Options
06:13 – Use, Layout, Cargo Storage & Seating
06:54 – Final Thoughts & Outro

Built to Your Specifications

At Gemini, we specialize in crafting custom-built RIBs to match your exact needs. Whether you require a commercial workboat, VIP transport, or a high-performance adventure RIB, we configure, power, and equip every WR880 to meet your demands. Get in touch to start designing your perfect RIB today!

Enquire Today

To learn more about the Gemini WR880 or to place an order, contact us today:

James Myatt
Gemini RIBs UK & Ireland
Tel: +44 (0) 1590 647436
Email: [email protected]

Follow Us:
Facebook -   / berthonribs
Instagram -   / geminiribsuk
LinkedIn -   / gemini-ribs-uk-ireland

Title: Gemini 880 Review – Features, Performance & Build Quality of the 8.80m Patrol / Commercial & VIP RIB

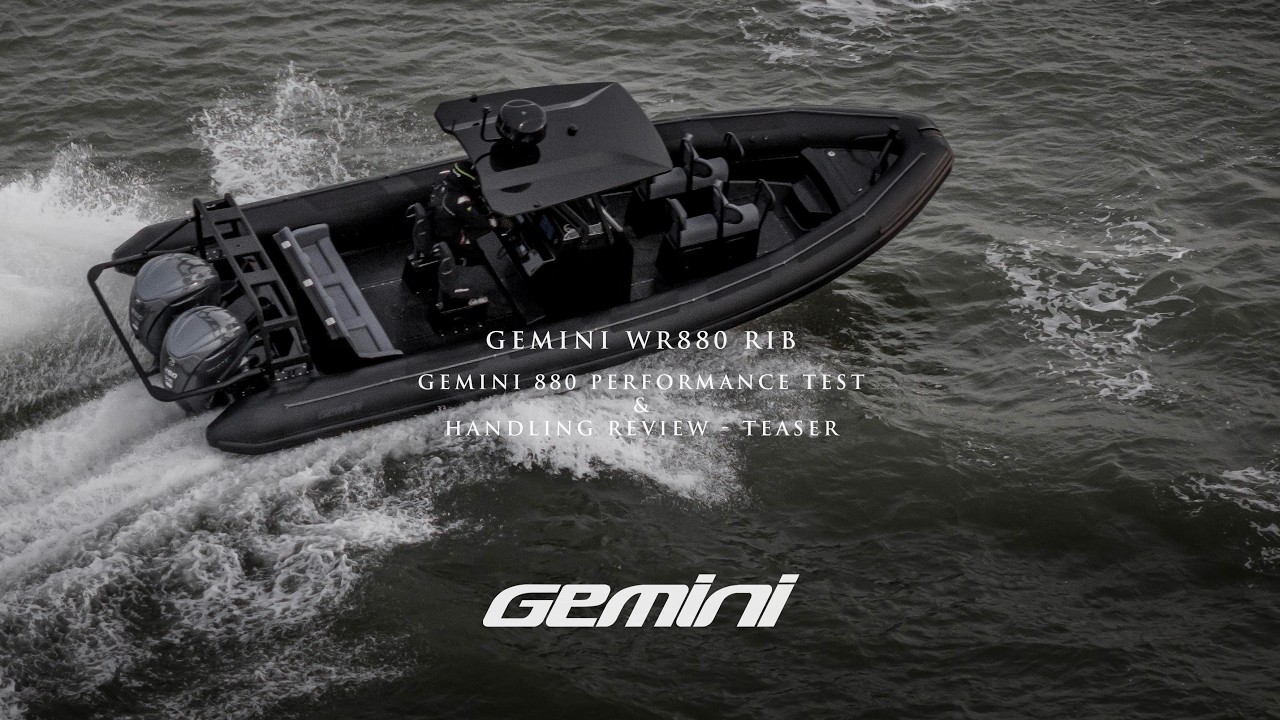

Previous Video: Gemini 880 Performance Test & Handling Review – 8.80m High-Speed Patrol & VIP RIB in Action -    • Gemini 880 Performance Test & Handling Rev...

Gemini RIBS - Reviews, Performance Tests & Walkthroughs Playlist:    • Gemini RIBS | Reviews, Performance Tests &...

@GeminiMarine
@BerthonBoats

Explore the pinnacle of performance and durability – the Gemini WR880.

-------------

Gemini WR880: Full Technical Specifications

HULL & TUBES
Deep V Offshore Commercial Hull in Black GRP
Hypalon 7 Chamber Black Carbon Tubes with HD Strake Protection
Integrated Bow Locker with Stainless Steel Catch
Aluminium Keel Protector (Bow to Stern)
Stainless Steel Mooring Posts, D-Rings, and Drainage Ports

TUBE UPGRADES
1670 DTEX Commercial Grade Hypalon
Dual Heavy Duty Rubbing Strakes
Leafield Air & Pressure Release Valves
10 x HD Non-Slip Patches & 2 x Grab Lines

FUEL SYSTEM
2 x 300L Commercial Grade Aluminium Fuel Tanks
2 x Fuel/Water Separator Filters

A-FRAME
Black Commercial A-Frame with Engine Protection Bar
2 x Mooring Cleats, Rescue/Dive Ladder, Life Ring Cradle
VTronix VHF Antenna

SEATING
2 x Ullman Biscaya Shock Mitigation Jockey Seats
2 x Double Crew Jockey Seats (Removable) with Forward Grab Handles
Aft Bench Seat with Internal Storage on Gas Struts (Storm Grey Fabric)

CONSOLE
Commercial Stealth 8100 Console with Vetus Forward Hatch
2 x Aft Storage Hatches & Grab Rails
Stainless Steel Drinks Holders
T-Top Composite Framework with Grab Handles
Scanstrut 150 Power Tower Radar Mount

ENGINE
Yamaha Twin F250NSBX Outboards
Yamaha Rigging Kit & Multi-Function Gauge Display
Yamaha Drive-by-Wire Throttle & Keyless Start

ELECTRICS
LED Navigation Lights & Anchor Light
2 x Batteries with Isolators & Parallel Link
Automatic Bilge Pump & Waterproof Switch Panel

NAVIGATION
2 x Garmin 12" GPSMAP 1223xsv Chart Plotters
Garmin Fantom Radar Dome, In-Hull Transducer, AIS 800
Scanstrut Wireless Charger & USB Charging Point
ICOM Fixed & Handheld VHF, Offshore Flush Mount Compass

MOORING
10kg Anchor, Chain, Shackles, Warp, Mooring Lines, Fenders

ROAD TRAILER
Extreme EXT3500KG Dual Axle Braked Road Trailer
