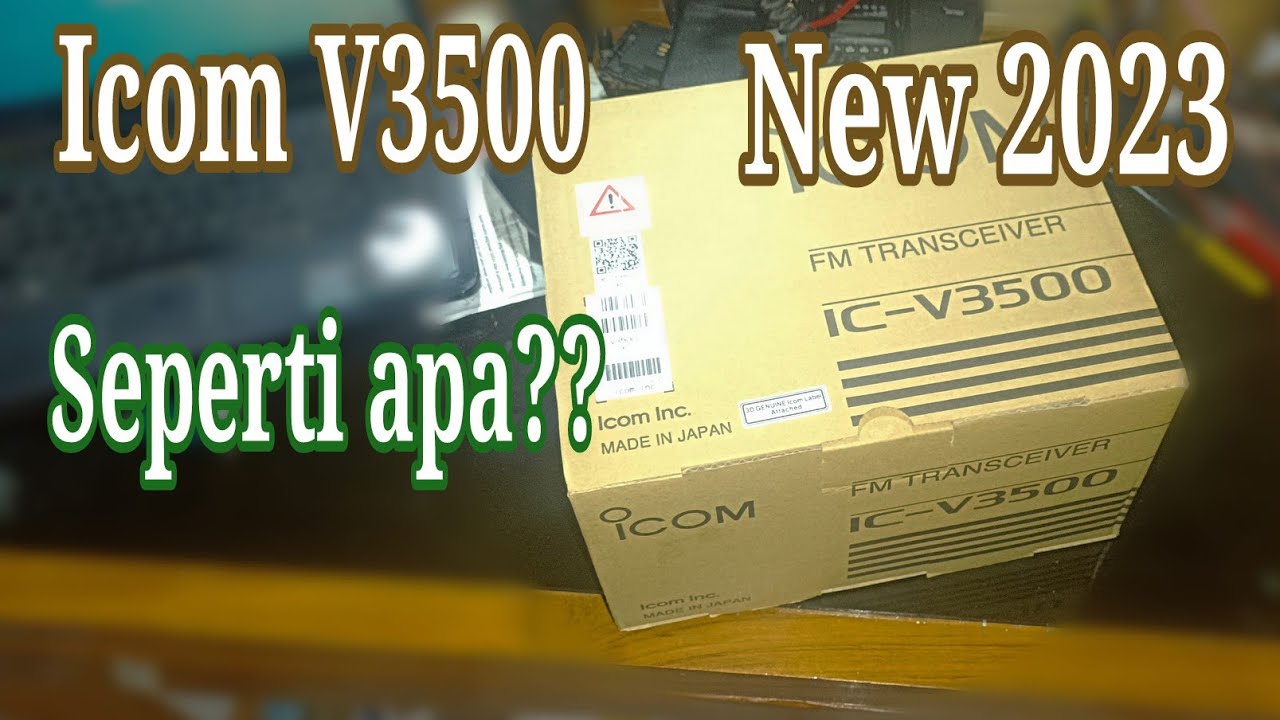

Icom IC-V3500 VHF FM Transceiver Base Radio UNBOXING

Описание: See price and order here:
https://s.shopee.ph/9UlpxdJ0UD

PRODUCT HIGHLIGHTS:
65W Powerful RF Output Power
Modern White Display and Simple Operation
4.5 W Loud and Clear Audio Output
Instant Volume Loud and Mute Functions
Emergency Call and Alert Functions
Countermeasures against Counterfeit Products
A total of 207 memory channels with 6 character channel name
Priority watch function
Wide/narrow channel setting
Power supply voltage display
Most of the functions are programmable from a remote-control microphone

SPECIFICATIONS:
Frequency coverage: TX: 144-148MHz RX: 136-174MHz
Number of memory channels: 207 channels (including 1 call and 6 scan edges)
Type of emission: F2D, F3E (FM)
Frequency stability: ±3 ppm
Power supply requirement: 13.8 V DC ±15%
Current drain (approximate): Tx 65W: 11 A
Rx Max. audio/Stand-by: 1.5A/0.4A
Antenna impedance: 50Ω (SO-239)
Operating temperature range: –10°C to +60°C; 14°F to +140°F
Dimensions (W × H × D; Projections not included): 140 × 40 × 118 mm; 5.5 × 1.6 × 4.6 in
Weight (approximate): 1.1kg; 2.4lb

TRANSMITTER:
Output power (13.8 V DC): 65W, 25W, 10W, 5W
Max. frequency deviation: ±5.0kHz/±2.5kHz (W/N)
Spurious emissions: Less than –60dBc
Microphone impedance: 600Ω (8-pin modular)

RECEIVER:
Sensitivity (at 12 dB SINAD): Less than 0.18 μV
Selectivity: Wide: More than 6 kHz (at 6 dB) Less than 14 kHz (at 60 dB)
Narrow: More than 3 kHz (at 6 dB) Less than 9 kHz (at 55 dB)
Spurious response: More than 60 dB
Audio output power: 4.5 W typ. (10% dist., 4Ω load)
Ext. speaker connector: 2-conductor 3.5 (d) mm (1/8ʺ)/4Ω
