air-conditioning radiator recycling machinery separator copper and aluminum
Автор: zhao kate
Загружено: 2017-02-23
Просмотров: 48517
Описание:

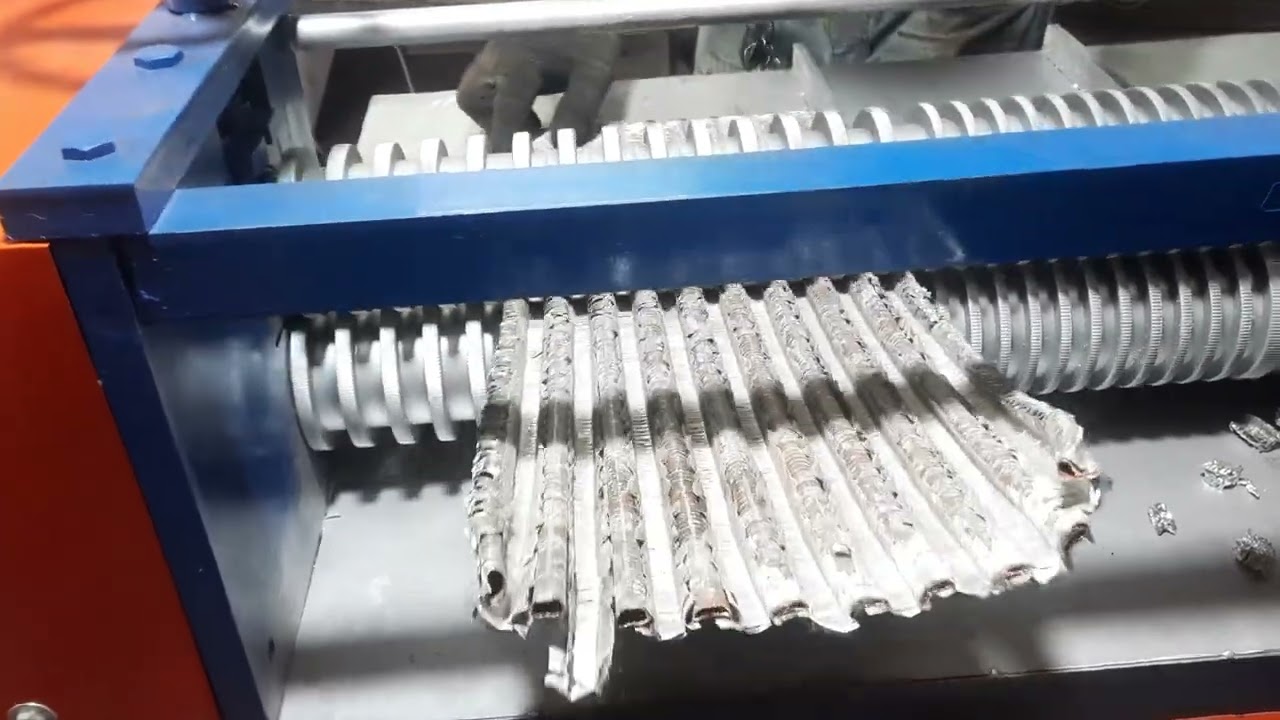

Aluminum copper radiator separator machine is used to strip and separate the single-layer and double-layer radiator fin.
The machine is created of motor, reduction box, rack, press roller, blade, pinch roller, etc.
The copper and aluminum of the radiator are separated by cutting blade. After that, the copper pipe stay
unaffected, and the aluminum have irregular pieces. When the engine starts, the vee belt drives the
compression roller, pinch roller, and blade to rotate through the reduction box. The compacted raw material is
sent to the fly-cutter blade by pinch roller. Then, the radiator is cutted up by the fly-cutter blade, the copper
pipe is separated, and the aluminum scattered network cuts up .
Material : the radiator whose copper tube center distance is 19mm, 21mm or 25mm.
copper and aluminum water tank recycling machine
Engine Power
3 KW + 4 KW
Voltage :380 V or Customized ( 50 HZ / 60 HZ )
Cutting Width 1:19 mm * 9 paths
Cutting Width 2:21 mm * 11 paths
Cutting Width 3:25 mm * 14 paths
Cutting Speed:13 m/min
Dimension:1700*860*1200 mm
Band Saw
Engine Power :3=4+2.2 KW
Dimension:800*460*1800mm
More detail ：[email protected]
Whatsapp ：86 15036183129
Skype :katemu12
