How to Install the Access TonnoSport Tonneau Cover

Описание: http://www.realtruck.com/access-tonno...
Step by Step how to video on installing your Access Tonno Sport Tonneau Cover. The Access TonnoSport is a stylish durable tonneau cover that has a sleek low profile design. This tonno is very popular and has one of the lowest prices on the market.


Video Transcription:

Announcer: What we're going to do here is lay everything out and make sure we have all the parts that are needed. You have a left side and a right side rail. You'll want to make sure you do have two adjusters and it will take three clamps per side to hold the rails onto the side of the box.

What we have here, we have the tools that are going to be necessary to install the cover, which we have to C clamps, one half inch wrench, two nine-sixteenths wrenches and an impact or you could use a rachet.

Now what we're going to do is install the side rails. You'll want to make sure that the striker is in the back of the box and you have the two holes at the front. Then what you will do is take the rail on the drivers side, you'll have the flipper for the lock and you will set it up there and when you get it there you'll want to put a clamp on the inside to hold that so it does not fall down on you.

What we did is we installed one clamp on the rear to the hold the back of the rail and one clamp in the front to hold the front of the rail so it does not fall down on you until you get the other clamps put on.

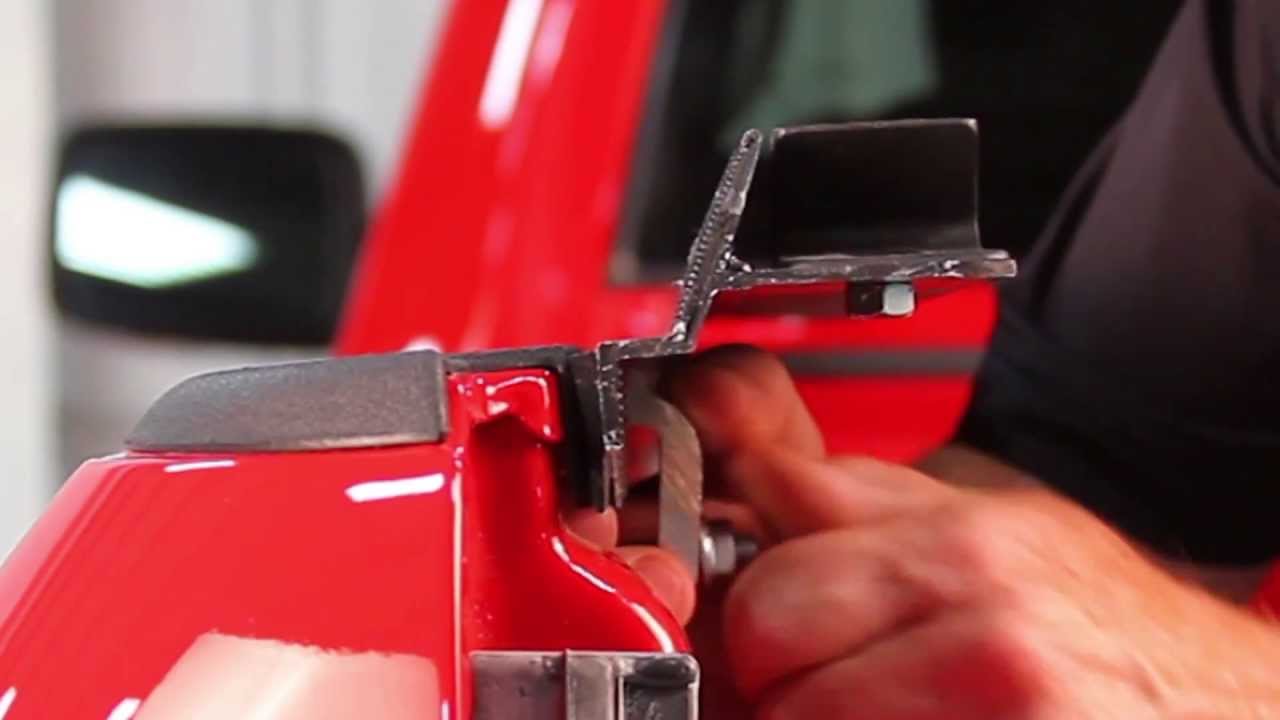

OK, now what you will do is take one of those clamps and you'll need a half inch wrench for them and you will take eight inches from the front, put your clamp on there and tighten it up. Make note that it does not turn. You'll want them straight. Then you will go to the center one. As you can see here we are sticking above the box.

Here we're actually flush with the box and a here we're above. So what we're going to do is we're going to pull this bar up so we have the same distance and the same unique look all the way down the side. Then actually clamp the center, once you lift it up.

OK. Now I have clamped the bottom and now we have the same height running across the whole bed for that rail. So now what you'll do is take one of the clamps that they send you, slide it on there, tighten the nut up and we will install another clamp onto here, roughly eight inches from the edge to where your clamp is. Once you have your clamp on you can tighten that up.

Now what we will do is do the next side the same way we did the other side.

We have the other side installed for the rail. Now we will put the tensioners onto the cover. There is a left and a right that need to be installed.

Here is the left. You can take that and set it up like that. The right one will go like that. You'll have two bolts which are the two longer ones and two washers. Put your washer onto the bolt, the other washer onto the bolt, take one bolt, run it through, tighten it and then your tensioner, set it on there and tighten it.

It may be a little loose, slide it over and what you'll do is grab the cover, set the cover up on the top of the rails and set it down. Then you'll grab your tensioner, slide that over, slide the other one over, then the two small bolts and you'll need to grab your two nine-sixteenths
wrenches. You will take one bolt and slide your tensioner over to the center of that hole, put your bolt in. The bolt side down, you do not want the nut up as it could cut the cover.

And then you will notice that you have a big gap here, there's nothing over there. You'll want to center that out which you'll just pick up and slide until you're about the same from side to side, just like that.

Then you can tighten that all up. OK. We have the tensioners tightened through the rail. Now you will want to tighten the bolts where the tensioner goes onto the front bar.

Now what we will do is roll the cover open lining it up so it goes into your stripes. Check to see how tight you've got it. This one here is too tight so we will roll it back open.

Then what we have to do is adjust these tensioners. We will want to move them back a little bit so the cover is not so tight. You can role, latch it in and seal up your sides. Then you can check the tailgate to make sure it closes.

To open your access cover you grab this lever, flip it towards you and you can just roll it right open. If you want to drive down the road with it open there is a little buckle that comes around and snaps it so your cover does not fly away.

You now have your access cover installed. 866-554-0581 Free shipping for orders over $100!
