Maxsurf Modeler - Primary Structural Parts

Описание: In Maxsurf, learn how to model primary structural Parts in Modeler (Frames, Decks, Plates and Stringers).

For more videos like this, head over to @BentleyOffshoreAnalysis.
For more details of Maxsurf, please visit: https://www.bentley.com/software/maxs...



Chapters:
00:00 - Title
00:03 - Modeling primary structural parts: frames, decks, plates and stringers).
00:08 - Add frames at selected section contours positions ...
00:28 - Add frames and specify properties, adding any openings if required ...
01:42 - Edit properties and openings of selected frame ...
02:53 - Copy properties of first selected frame to remainder of selection ...
03:38 - Add bulkhead frames without openings ...
04:14 - Add a deck on a selected waterline contour ...
04:49 - Add plate by selecting 4 seam contours in opposing pairs (aft+fwd; top+bottom). These contours must be on the same surface ...
05:36 - Repeat the procedure to add more plates ...
06:27 - Add a free-form stringer (double-click to insert last point) ...
06:54 - Duplicate first stringer ...
07:23 - Add new master free-form stringer projected vertically into bottom part of hull surface ...
08:57 - And duplicate ...
08:13 - Select all stringers and define their section properties ...
08:54 - Calculate all parts ...
09:07 - Review parts defintion tables and part list (bill of materials) ...
09:34 - View 2D part shapes: frames, decks and expanded plates ...

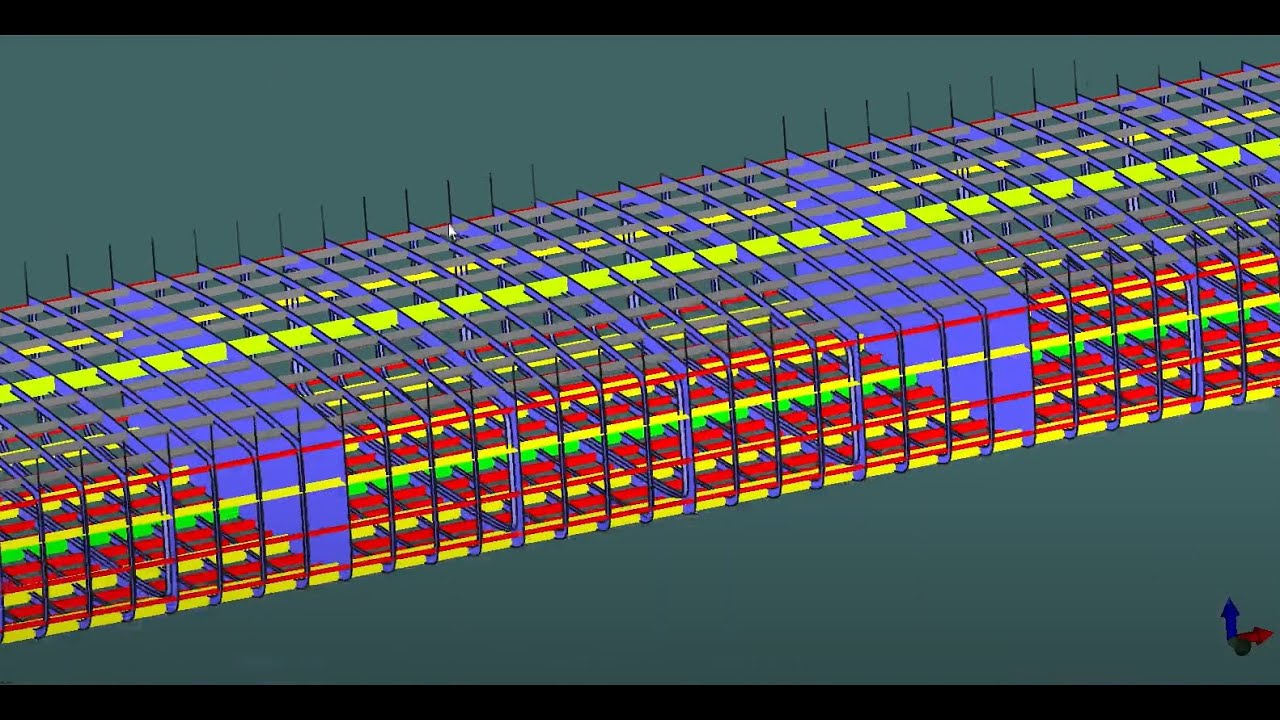

10:55 - Rendered 3D model ...
11:14 - Modify properties of selected frames so that opening matches deck height ...
12:16 - Add stiffeners to individual frame and deck ...
