Multispan Voltage Protection Relay VPR 33 02A: Ultimate Product Guide

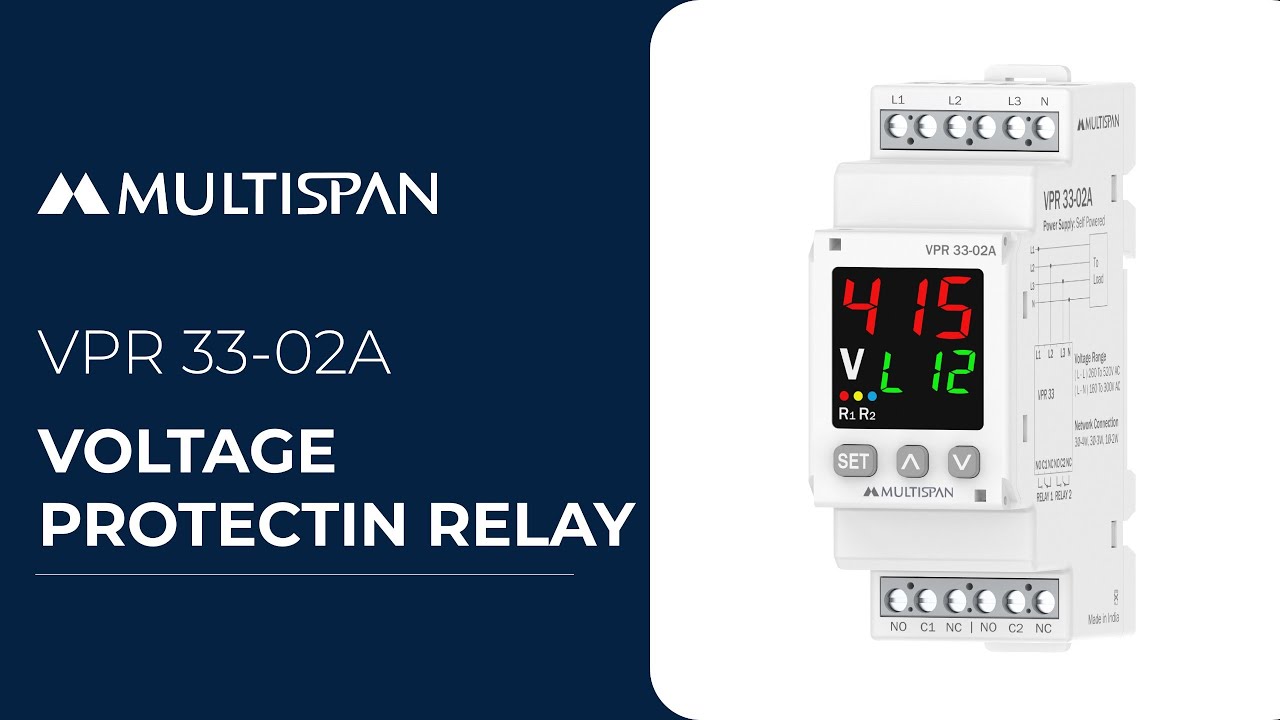

Описание: This is the ultimate product guide for the Multispan Voltage Protection Relay VPR 33 02A. Learn about its compact 35mm width and self-powered features. We walk you through the connection options (Single-phase, Three-phase 3-wire, and Three-phase 4-wire) and demonstrate the detailed parameter settings, including Over Voltage (OV), Under Voltage (UV), Over Frequency (OF), Under Frequency (UF), Trip Delay (TDL), Reset Mode (Auto/Manual), Relay Fault Mode, Power On Delay, and Factory Reset. Essential information for setup and configuration!

Chapters/Timestamps:

[00:17] Introduction and Key Features (Compact Size, Self-Powered, Voltage Range)
[01:11] Wiring Connections: Input Terminals (L1, L2, L3, N)
[01:36] Wiring Connections: Relay Output Terminals
[02:24] Display, Voltage Check, and Relay Status Indicators
[03:01] Entering Parameter Settings (Password Entry: 45)
[03:14] Network Configuration (1P2W, 3P3W, 3P4W)
[03:44] Relay 1 (R1) Configuration Menu
[04:02] Setting Over Voltage (OV)
[04:20] Setting Under Voltage (UV)
[04:36] Setting Over Frequency (OF)
[04:50] Setting Under Frequency (UF)
[05:00] Setting Trip Delay Time (TDL)
[05:08] Setting Reset Mode (Auto/Manual)
[05:36] Setting Relay Fault Mode (Off/On)
[06:04] Relay 2 (R2) Configuration and Linking with R1
[06:42] Setting Hysteresis (Voltage and Frequency)
[07:11] Setting Power On Delay Time
[07:33] Factory Reset Option
[08:03] Additional 3-Phase Parameters (Asymmetry and Phase Sequence)
[09:03] Exiting the Setup Menu
