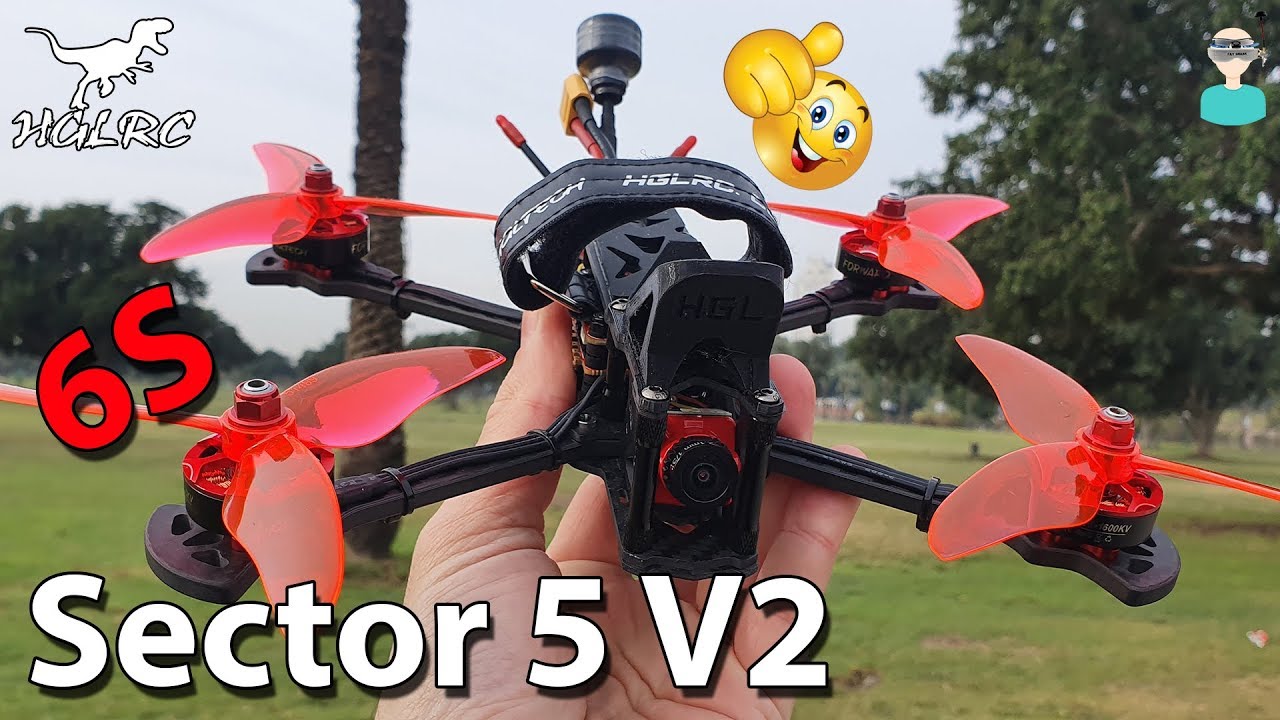

HGLRC Sector 5 V2 BNF 6s Freestyle Racer - Review, Setup & Flight Footage

Описание: ► HGLRC Sector V2 6s: http://bit.ly/SectorV2-6s
► 4s Version: http://bit.ly/SectorV2-4s
► DJI Version: http://bit.ly/SectorV2HD
► Recommended Batteries:
6s: http://bit.ly/CNHL-Black-6s-1500mah
5s: http://bit.ly/CNHL-5s-1500mah
4s: https://chinahobbyline.com/index.php?...

Stock BF Settings (With voltage scale fix): http://txt.do/1oxye
💰 12% Off BF Coupon code: BGBFRC7

💰Black Friday Coupon List: http://bit.ly/BFBG2019
🛍 Black Friday Deals:
http://bit.ly/BF2019-JoinMyTeam
http://bit.ly/BF-2019-RC-Deals
http://bit.ly/BF2019-ShoppingGuide

💵 Google Spreadsheet with updating coupons: http://bit.ly/Banggood-Coupons-List

╔════╡My Gear╞═════════════════════╡
║ ►Goggles - FatShark HDO - http://bit.ly/HDO-FS
║ ►RX Module - Furious True-D: http://bit.ly/FuriousFPV-TrueD
║ ►Radio - Taranis X9D: http://bit.ly/Frsky-X9D
║ ►Battery Charger - Hobbymate D6 Duo Pro: http://bit.ly/D6-Duo
║ ►Lipo Batteries: http://bit.ly/CNHL-BG
╚════════════════════════════════╡

╔═╦╗╔╦╗╔═╦═╦╦╦╦╗╔═╗
║╚╣║║║╚╣╚╣╔╣╔╣║╚╣═╣ → http://bit.ly/subscribeToMyYouTube
╠╗║╚╝║║╠╗║╚╣║║║║║═╣ I Really Appreciate Your Support!
╚═╩══╩═╩═╩═╩╝╚╩═╩═╝
●▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬●
Find Me On Facebook
►  / kremerfpv
Instagram:
►  / kremerfpv

Please consider supporting my channel by using my affiliated links:
Banggood: http://bit.ly/BG-Kremer-FPV
HobbyCool: http://bit.ly/hobbycool
Gearbest: http://bit.ly/GB-Affiliate
Heli-Nation: http://bit.ly/Heli-Nation
RDQ: http://www.racedayquads.com?aff=26
Rotor Riot: http://store.rotorriot.com?aff=10

It doesn't add any extra cost to you and will help me to grow my channel and bring you high quality updated content.
Thanks in advance!

Description:

HGLRC Sector 5 V2 FPV Racing Drone 6S BNF F7 Dual Flight Control 60A 4in1 ESC 2306 Motor

Item Name: : HGLRC Sector 5 V2 FPV Racing Drone 6S BNF
Net Weight:357g (Does not include receiver)

HGLRC Sector 5 V2 Frame Kit
Material: 3K Carbon Fiber
Model: Sector V2 Freestyle Frame Kit
Wheelbase: 226mm
Top plate thickness: 2mm
Bottom plocte thickness: 2mm
Middle plate thickness: 2mm
Camera side panel thickness: 1.5mm
Type: 5" Frame
Arm Thickness: 5mm
Arm width : 10mm
Standoff Height: 25mm
Flight control installation holes: 20*20mm&30 * 30mm Chute type
Support camera: 19/22mm
Weight: 103.5g (Does not contain TPU)

HGLRC FD F7 Dual Flight Control
MPU: ICM20608 (32K) & MPU6000-SPI
CPU: STM32F745VGT6, 32K+16K
Input Voltage: 3-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V/2A, 8V/1.5A
LED Output: 5V/2A
Size: 37x37mm, 30.5mm mounting holes
Weight:10.2g
Blackbox: No

HGLRC DinoShot 60A BL32 3-6S 4in1 ESC
CPU: STM32F051
MOS Tube: TOP QUALITY MOSFET
Input voltage: 3-6S lipo battery
Constant current: 60A-4S/50A-5S/40A-6S
Peak current: 70A
BEC ouput: NO
Protocol: DSHOT1200/600/300/150/Oneshot125/42, MultiShot Damped mode
Size: 36x36mm (main board)
40x48mm (including pad)
Installing hole: 30.5x30.5mm, M3
Weight: 12.9g

HGLRC FD VTX 400MW
Output power: PIT/25mW/50mW/100mW/200mW/400mW
Control mode:BFOSD control(RX)/button
Input: DC 7-28V
BEC:5V-1A
Video system: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels.with Raceband: 5362-5945 MHZ
Size:36x36x5mm.Hole:30.5*30.5mm
Weight: 5.2g


HGLRC AURORA V2 FPV Camera 1200TVL
Image Sensor:1/2.7 " 1200TVL CMOS
TV System: PAL/NTSC Switchable
Lente:2.1mm
S/N: - 50dB
Min. illumination: Color: 0. 05Lux; BW: 0.001Lux(F1.2,50IRE,AGC ON)
WDR: Support
Lanuage: Chinese/English/Italian/Russian
OSD programming board: Support
Input Power: DC 5V-30V
Working Temperature:-10℃ ~50℃
Storage Temperature: -40℃ ~60℃
Dimensions:19mm*19mm*27mm
Net weight:8.9g

HGLRC FD2306 1600KV Brushless Motors
Internal Resistance (mΩ): 93
Stator Diameter:23mm
Stator Height:6mm
No.of Stator Slots :12S
No.of Rotor Poles :14P
Max Continuous Current:23.44A(60s)
Max Continuous Power:866.7W
Shaft Diameter:5mm
Overall Dimension(mm):27.9 X 30.7
Lead Wire Size :20AWG X 150mm
ESC:50A
No.of Cells(Lipo):25.2V (6S)
Recommended Prop(inch): 5 -6Inch
Weight:32 g

Gemfan 51499 5 Inch 3-Blade Propeller
Quantity: 3 CW & 3 CCW
Recommend Battery: 1000-1500mAh (Not Included)

Package Included:
1x FD F7 Dual Flight Control
1x DinoShot 60A BL32 3-6S 4in1 ESC
1x FD VTX 400mW
1x AURORA V2 CAMERA
1x Sector 5 V2 Freestyle Frame Kit
4x FD2306 1600KV Motor
6x GF51499 3 propeller
1x Hammer Antenna
1x Battery Strap
1x Receiver(BNF Version)
