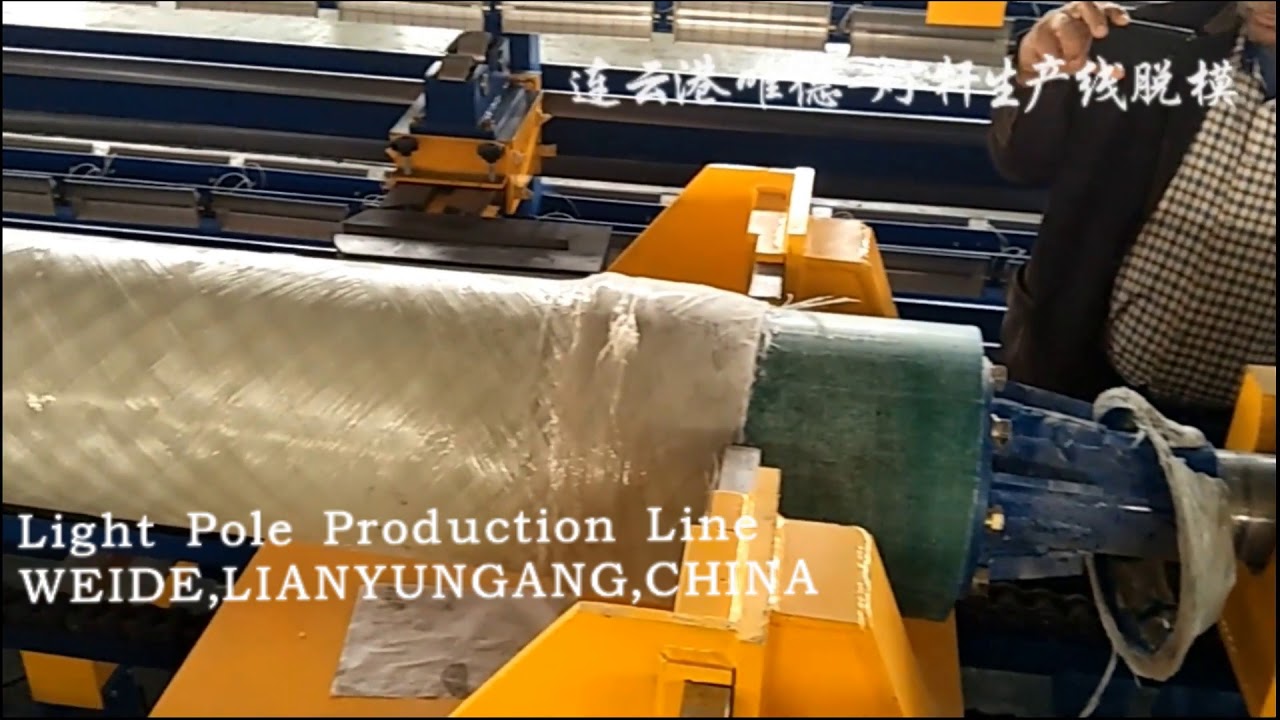

FRP Light pole prodution line (2/2)

Описание: SPECIFICATION：

ФD1-ФD2*L TWO AXES X SPINDLE HORIZONTAL HIGH PRECISION WINDING MACHINE

REMARKS: Range of D1(min. DN) and D2(max. DN) should be specified when place the order.“X” can be set according to product max diameter and length.(L≤12000mm)

COMPOSITION: HORIZONRAL TRACK, DRIVING HEADSTOCK, TAILRACK, WINDING TROLLEY, RESIN BATH, ROVING GUIDER AND FIBER ROVING CREEL

SCOPE OF APPLICATION：

1.FRP pipe of DN10-1000mm, L≤12000mm

2.FRP pipe of polyester and epoxy resin

3.Pipe of various fibers: fiberglass, carbon fiber, aramid fiber and basalt fiber

PARAMETERS：

4.Product DN： Ф50mm-Ф1000mm

5.Product Length:≤12000mm

6.Winding Angle：≥45° ≤89° ( winding angle can meet the requirement of ≥0° ≤90°, if there are tucks on both ends of the mould)

7.Fiber-drawing Speed：≤100m/min

8.Mandrel Speed: ≤75 rpm/min

9.Trolley Speed: 60m/min

10.Control Mode: double servo control for mandrel and trolley+Yanhua industrial control (Taiwan product)

11.Resin Bath: with function of heating which meets the requirement of epoxy products winding

12.Roving Creel: Three types for choice

13.Simplified Tension Creel

14.Mechanical Tension Creel

15.Electronic Tension Creel

16.Equipment Total Power: 15±5KW

17.Requirement of installation space：W=8000mm，L=17600mm ( product length within 12000mm)
