Clamp Meter System Boards – Complete Practical Guide

Описание: Clamp meter ek aisa electrical testing instrument hai jo bina wire cut kiye current measure karta hai. Lekin jab baat system boards, PCB, inverter boards, AC control boards, stabilizer boards, SMPS boards, UPS boards ki aati hai, tab clamp meter ka use sirf current dekhne tak limited nahi hota.
System board testing me clamp meter diagnosis ka backbone ban jata hai. Is guide me hum step-by-step samjhenge ki clamp meter ka use system boards ke saath kaise kare, kaun-kaun se mode use hote hain, kaunsi galtiyan technicians kar dete hain, aur kaise safely & accurately testing kare.

⸻

🔹 Clamp Meter Kya Hai?

Clamp meter ek combination hota hai:
• Ammeter
• Voltmeter
• Ohmmeter
• Continuity tester
• Diode tester
• Frequency meter (advanced models)

Isme upar clamp jaw hota hai jo conductor ke around lagta hai aur magnetic field sense karke current calculate karta hai.

⸻

🔹 System Boards Kya Hote Hain?

System boards electronic machines ka brain hote hain. Jaise:
• Split AC indoor PCB
• Inverter AC outdoor control board
• VRF/VRV system boards
• Washing machine PCB
• Refrigerator inverter board
• Stabilizer PCB
• UPS & SMPS boards

Agar system board fail hota hai to pura system band ho jata hai.

⸻

🔹 Clamp Meter System Board Testing Me Kyun Zaroori Hai?

Clamp meter se hum:
1. Live current check kar sakte hain
2. Short circuit detect kar sakte hain
3. Overload condition identify kar sakte hain
4. Standby current measure kar sakte hain
5. Compressor / Fan / Motor load compare kar sakte hain
6. Inverter board IGBT/MOSFET fault indirectly samajh sakte hain

⸻

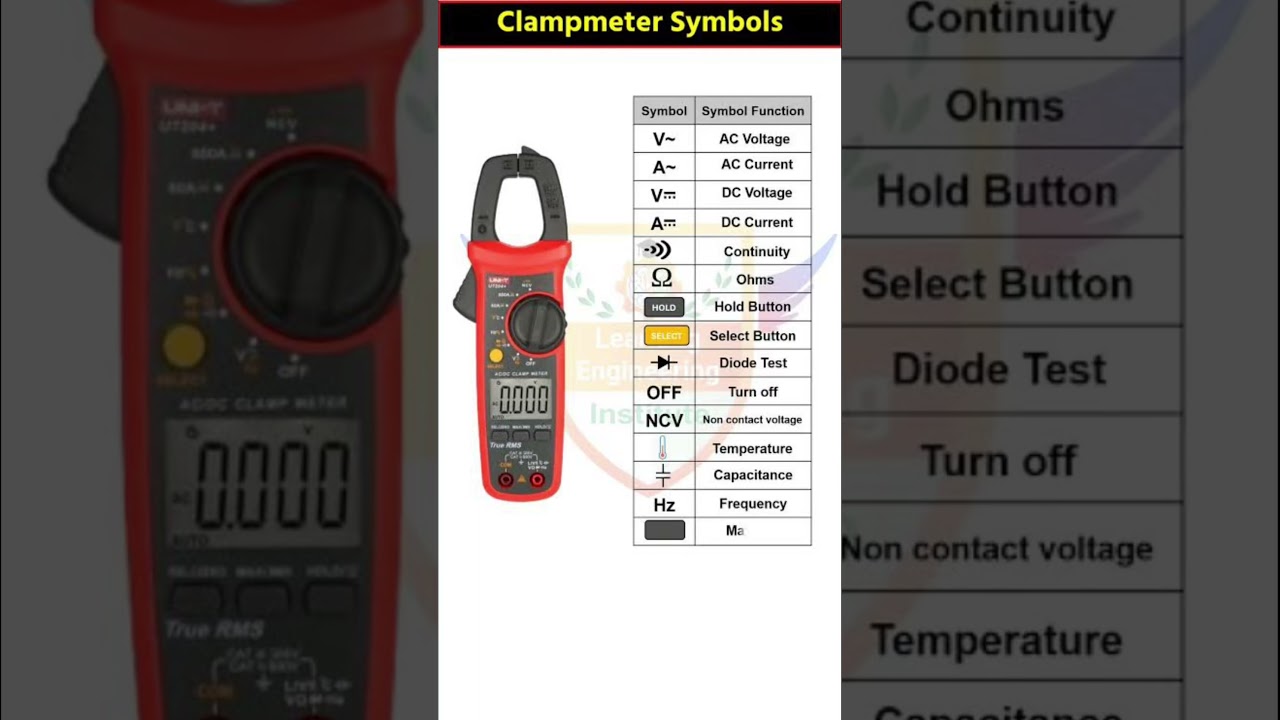

🔹 Clamp Meter Ke Main Parts (System Board Testing Point of View)

1️⃣ Clamp Jaw
• Phase wire ke around lagta hai
• DC & AC current sense karta hai

2️⃣ Selector Knob
• AC A / DC A
• AC V / DC V
• Ohm / Continuity
• Diode / Frequency

3️⃣ Display Screen
• Real-time reading
• Hold / Max-Min values

4️⃣ Test Leads
• Voltage, resistance, diode test ke liye

⸻

🔹 System Board Testing Se Pehle Safety Rules

⚠️ Ye bahut important hai:
• Board ko haath lagane se pehle power OFF
• Capacitor discharge karna
• Insulated gloves pehna
• Clamp sirf single wire par lagana (phase ya neutral alag-alag)
• PCB par short probe mat lagana

⸻

🔹 AC System Board Testing Using Clamp Meter

🔸 Step 1: Input Supply Check
• Meter mode: AC Voltage (V~)
• Phase to Neutral: 220–240V hona chahiye
• Agar voltage kam hai → board malfunction karega

⸻

🔸 Step 2: Standby Current Check
• Clamp mode: AC Ampere (A~)
• Phase wire par clamp lagaye
• Normal standby current: 0.02A – 0.10A
• Zyada current = board short / SMPS issue

⸻

🔸 Step 3: Compressor Start Current
• AC start karte waqt current spike aata hai
• Inverter AC me smooth rise hota hai
• Agar current bahut zyada → IGBT / IPM issue

⸻

🔸 Step 4: Fan Motor Current
• Indoor & outdoor fan current compare kare
• Zyada current = bearing tight / motor winding issue

⸻

🔹 Inverter Board Testing (Advanced Clamp Meter Use)

Inverter boards me direct ohm testing risky hoti hai. Clamp meter yahan indirect diagnosis me madad karta hai.

🔸 DC Input Current
• Mode: DC Ampere (A⎓)
• Battery / rectifier output par
• High DC current = MOSFET short

🔸 Frequency Mode
• Compressor drive frequency check
• Normal range: 20Hz – 120Hz
• Frequency unstable = control section fault

⸻

🔹 SMPS & Control Board Testing

Clamp meter se:
• Primary side current check
• Secondary output load current
• Overload protection working hai ya nahi

Agar no load me bhi current zyada ho → SMPS IC short.

⸻

🔹 Continuity & Diode Test on System Boards

🔸 Continuity
• Fuse, track, relay coil check
• Beep aaye = path OK

🔸 Diode Mode
• Bridge rectifier test
• Free wheeling diode test

Clamp meter yahan multimeter ka kaam karta hai.

⸻

🔹 Common Faults Clamp Meter Se Kaise Pakde

Fault
Clamp Meter Reading
Short PCB
High standby current
Dead board
Zero current
Overload
Rated se zyada ampere
Inverter fail
DC current spike
Motor fault
Unbalanced current
Feature
Clamp Meter
Multimeter
Live current
✅ Yes
❌ No
Safety
High
Medium

🔹 Best Clamp Meter Features for System Board Work

✔ True RMS
✔ DC current support
✔ Frequency mode
✔ Min-Max record
✔ Auto range
⸻
🔹 Real-Life Example (AC PCB Repair)
Ek inverter AC bar-bar trip ho raha tha. Multimeter se sab OK lag raha tha. Clamp meter se check kiya:
• Standby current normal se 3x zyada
• Diagnosis: SMPS MOSFET leakage
• MOSFET change kiya → board OK

Isse pata chalta hai clamp meter silent faults bhi pakad leta hai.
⸻
🔹 Conclusion
Clamp meter sirf ek current measuring tool nahi hai, balki system board diagnosis ka powerful weapon hai. Agar aap HVAC technician, electrician, ya electronics repairer ho, to clamp meter ka sahi use aapko:
• Time bachata hai
• Accurate fault detection deta hai
• Safety badhata hai
• Professional level ka kaam sikhata hai

System boards ke saath clamp meter ka combination = Perfect Diagnosis Tool 🔥
