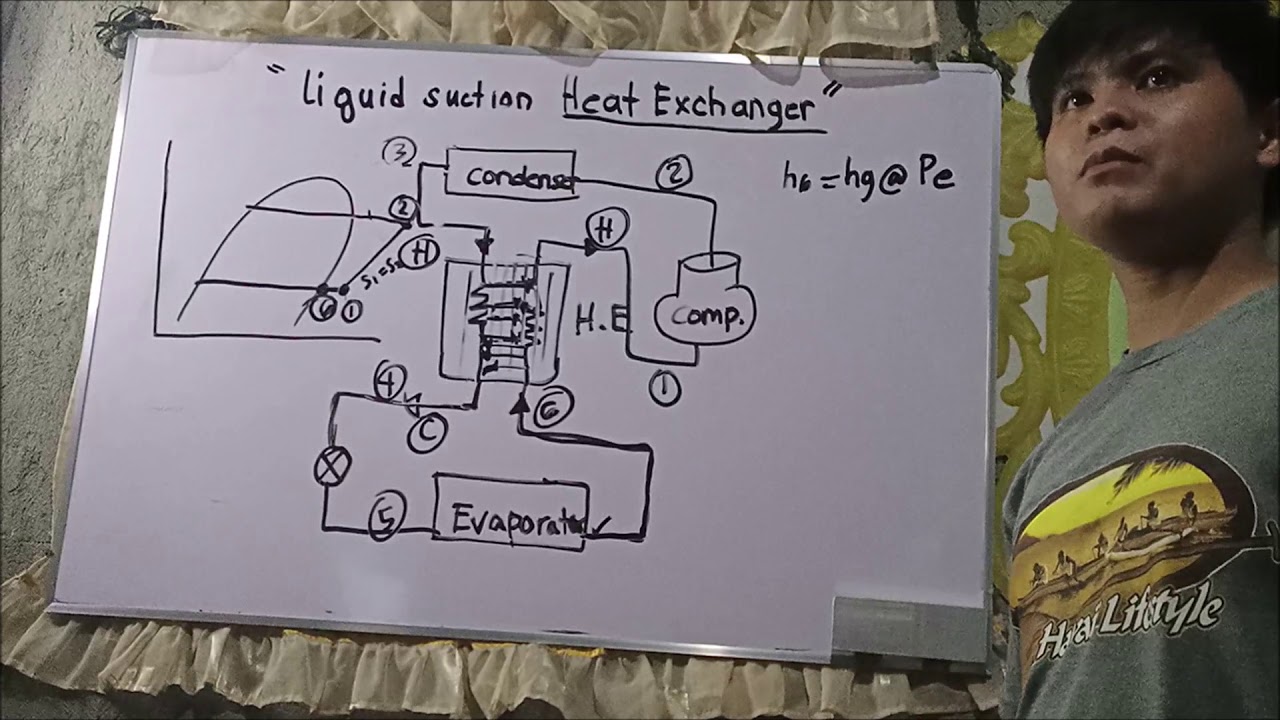

VAPOR COMPRESSION REFRIGERATION SYSTEM WITH HEAT EXCHANGER

Описание: PROBLEMS:
A simple vapor-compression cycle develops 13 tons of refrigeration. Using ammonia as refrigerant and operating at a condensing temperature of 24 C and evaporating temperature of -18 C and assuming that the compression are isentropic and that the gas leaving the condenser is saturated, find the following:
Draw the ph diagram
Refrigerating effect in kJ/kg
Circulation rate of refrigerant in kg/min
Power requirement
Volume flow in cubic meter/min
Coefficient of performance
Power per ton

A simple saturated refrigeration cycle using R-134a as refrigerant operates between evaporator temperature of -10ºC and condenser temperature of 35ºC. If a heat exchanger is installed and would superheat suction vapor from -10ºC to 15ºC, calculate the COP.
