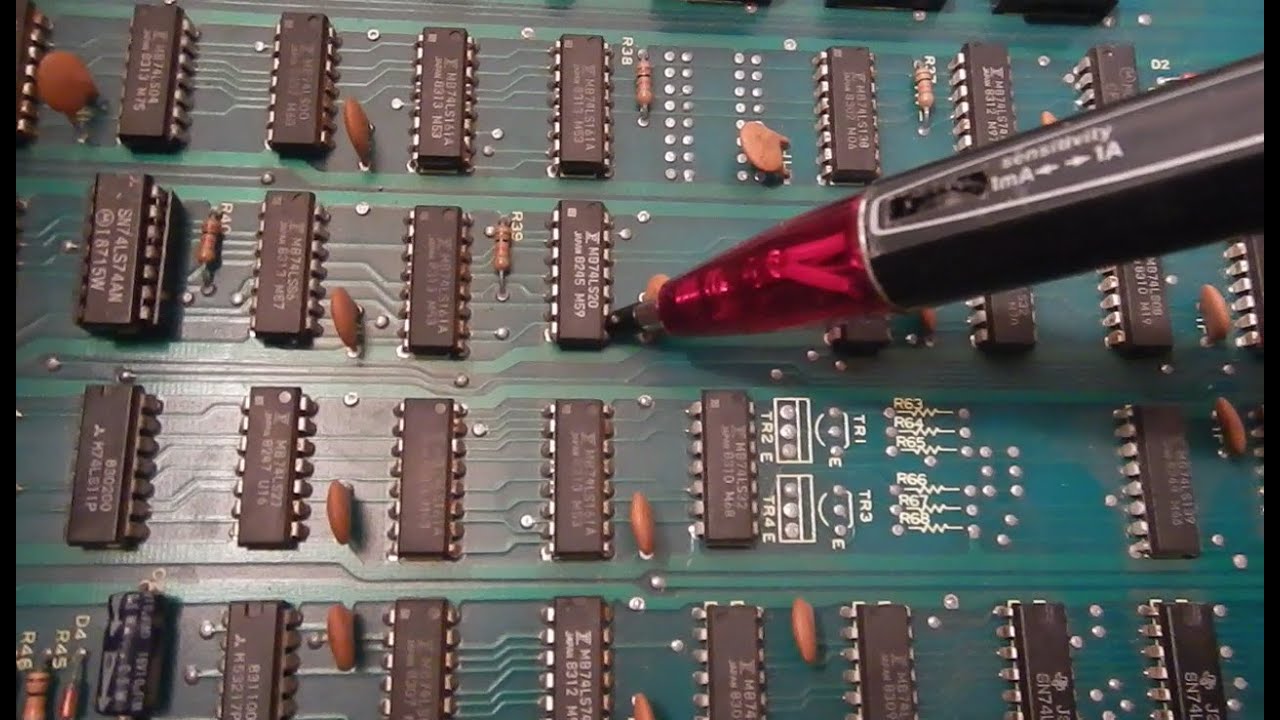

Galaga (gallag bootleg) arcade repair: The "Fujitsu TTL disease".
Автор: iz8dwf
Загружено: 2022-08-18
Просмотров: 2060
Описание:
This is the second part of another Gallag arcade boardset repair. This
video shows all the troubleshooting of the CPU and Video PCBs. In this repair I've encountered a very unusual fault in my experience.
In the previous video, I've shown my own syncbus daughterboard replacement with a ATF1502 CPLD using CUPL language.
Timeline:
00:00 - Welcome
00:55 - UP8 failure
04:04 - UL8 failure
06:58 - UA1 failure
08:35 - UF9 failure
10:03 - Bad 2114 on Video UM6
11:15 - UJ7 failure
14:18 - "bad sprites"
14:50 - UA8 failure
16:15 - bad sprites fix (video UA2)
17:30 - really weird timing race
First video of this repair:
• Galaga (gallag bootleg) arcade repair: deb...
