Reflow Oven Performance Tracking with KIC’s Smart Reflow Analyzer® and Heat Transfer Index™
Автор: kicthermal
Загружено: 2022-09-27
Просмотров: 1502
Описание:
A smart fixture for reflow oven performance tracing with a built-in data collection module.
• Built-in conveyor speed measurement (No external sensors needed)
• Heat Transfer Index (HTI)™ for each zone
• Side-to-side and run-to-run comparisons
• Track individual zone performance over time
• PWI™ – instant process analysis with a single number

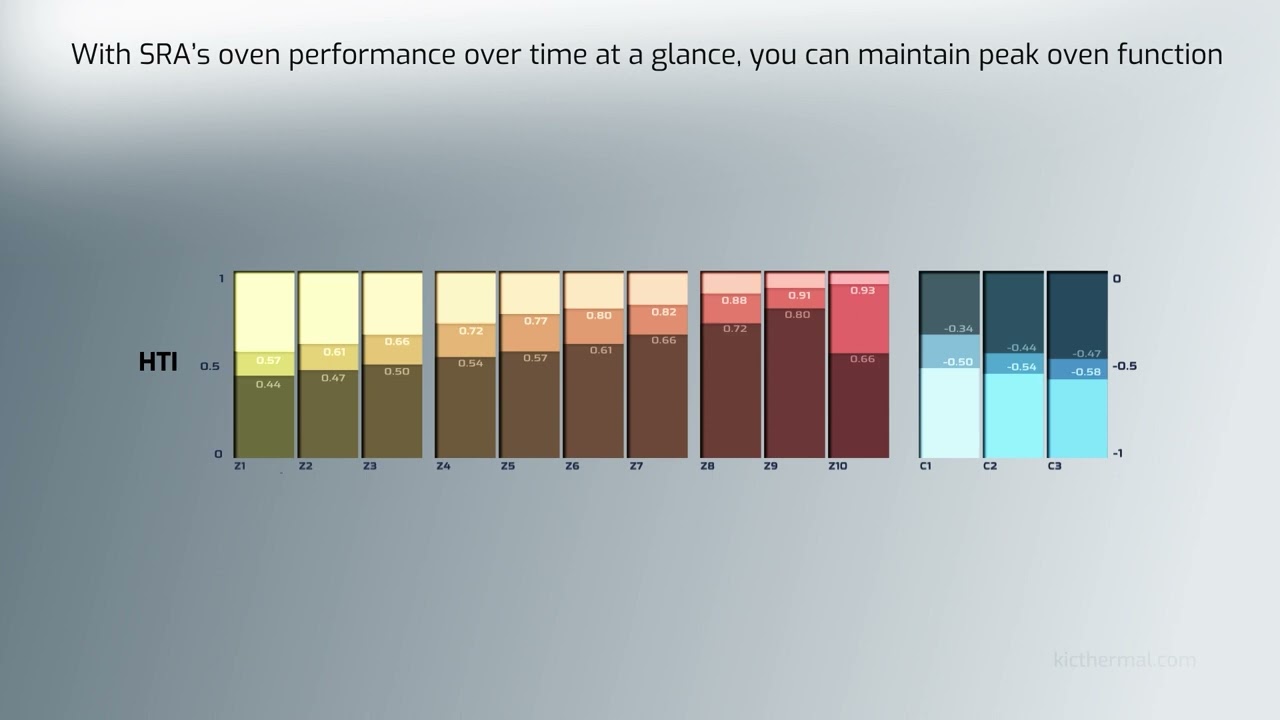

The HTI™, or Heat Transfer Index, is a measure of the energy transfer occurring in a given zone. Effective heat transfer will generally yield a more homogeneous board temp (tight delta temperature across all components) and can allow for faster conveyor speeds (more throughput). The HTI value is calculated and displayed for each zone as a single number. The display of this index allows for fast and easy identification of changes in the performance of a given zone.
