Описание: Pioneer DEQ S1000A Introduction
Universal Sound Processor with easy control with Android and iOS.

Features of DEQ-S1000A
Upgrade Sound Quality

The output of factory fitted stereo is tuned to match the factory fitted speakers, therefore even when the speakers are replaced, the sound from the higher quality speakers will still be limited. Pioneer sound processor can cancel the factory audio tuning and create an altogether new sound stage that’s best suitable to the new speakers and car interior.

Upgrade Sound Quality

Easy Set Up Via Smartphone
Controls of the processor can be done through Pioneer’s app called Sound Tune. The app is quiet easy to understand and user. For the factory fitted units that donot support music playback from smartphone, the processor can play music too with USB connection. The app is available for both Android and iPhone

Easy Set Up Via Smartphone

Go for Higher-Grade Circuits and Parts
This universal sound processor incorporates Pioneer's full-custom high-performance 48-bit dual-core DSP for high-quality sound reproduction. An internal clock and pattern are optimally tuned. Sound degradation from jitter noise is thoroughly eliminated.

Go for Higher-Grade Circuits and Parts

Easy to Install
Pioneer sound processor offers an easy plug & play connection. The specially developed wire harness connects the factory fitted system with the processor without any hassles. This Wire harness derives Power and audio signal for the processor. The Audio signal can then be tuned as per the user’s preference with an interactive smartphone app.

Easy to Install

Compact Size
The extremely compact size of the processor makes the installation easy and neat. The processor can fit in the glove box, under the front passenger seat or behind the factory fitted stereo if there is a space.

Compact Size

How to use

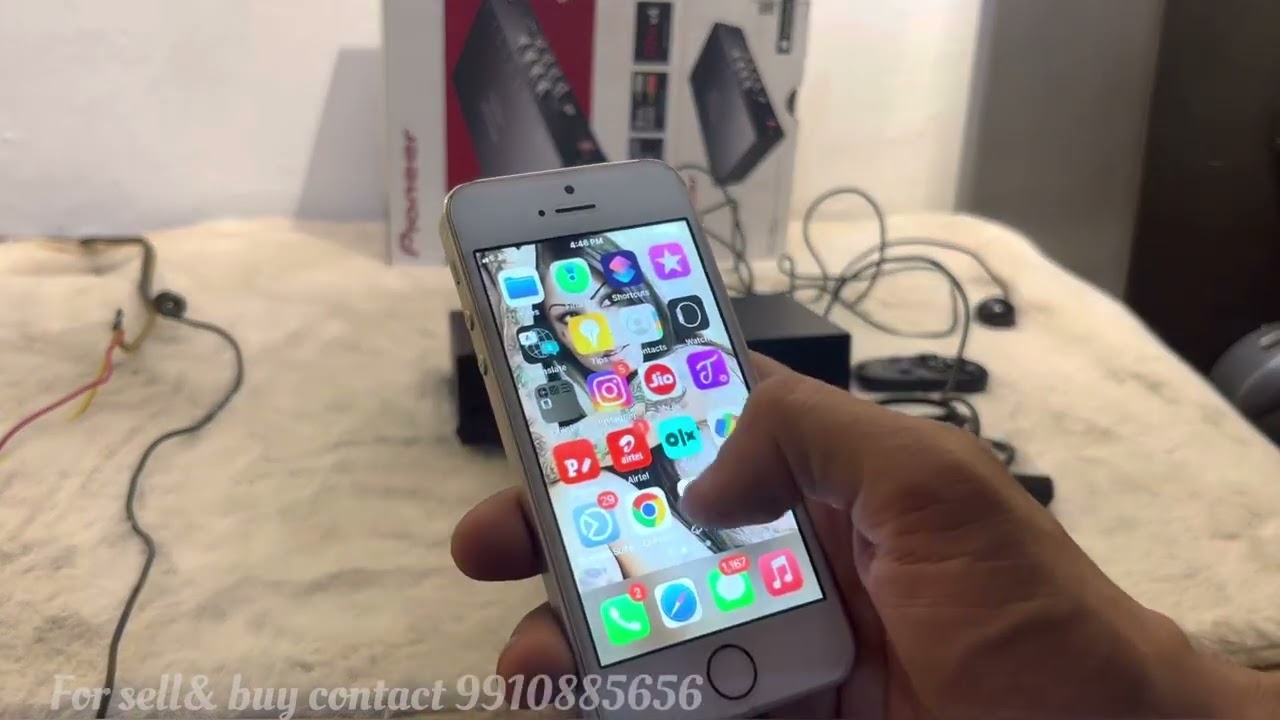

Download the Sound Tune App in your smartphone and then connect the phone with processor to do the settings.

For using Source Callibration feature, a test signal is required. Please download it from this link. Test signal is available in two formats (mp3 & wav)
How to use
Connection Patterns
Connection Patterns
There are specific connection patterns that can be used for powering different speakers and subwoofers.

Connection Patterns
Other features of DEQ-S1000A
Live Simulation
You can enjoy different sound effects like concert hall, Open air & more with this processor when the smartphone is connected.

RCA Preouts *3
You can connect multiple amplifiers with the processor using 3 Hi volt pre outs.

Crossover setting (HPF/LPF)
You can adjust cutoff frequency and cutoff slope for each HPF (front/Rear speaker seperately) and LPF (subwoofer) respectively.

Superior Audio Tuning
13 Band EQ adjustment allows you to fine-tune sound quality just as you like it.

3 Way Network Mode
User can build a 3-way multi-amplifier/multi-speaker system and switch between the configurations using network mode.

High Speed Charging
Providing up to 1.5 amperes to give an Android smartphone a quick charge.

MOSFET 50W*4
Pioneer's original amplifier makes sure to provide great sound

Specifications of DEQ-S1000A

Speaker Settings
Standard Mode- Front/Rear (HPF)- Frequency: 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz

Standart Mode- Sub woofer (LPF)- Frequency: 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz

Standart Mode- Sub woofer (LPF)- Gain: -24 - +10dB (1dB/Step)

Standart Mode- Sub woofer (LPF)- Phase: Normal/Reverse

Standard Mode- Speaker level: -24 - +10dB (1dB/Step)

Standard Mode- Time Alignment: 0cm - 350cm (2.5 cm/step)

Network Mode- High (HPF)- Frequency: 1.25kHz, 1.6kHz, 2kHz, 2.5kHz, 3.15kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz

Network Mode- Mid (LPF)- Frequency: 1.25kHz, 1.6kHz, 2kHz, 2.5kHz, 3.15kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz

Network Mode- Sub woofer (LPF)- Frequency: 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, 250Hz

Network Mode- Sub woofer (LPF)- Slope: 0dB(Pass), -12dB/oct, -18dB/oct, -24dB/oct, -30dB/oct, -36dB/oct

Network Mode- Speaker level: -24 - +10dB (1dB/Step)

Network Mode- Time Alignment: 0cm - 350cm (2.5 cm/step)

USB
USB standard spec.: USB2.0 High Speed

Max current supply: 1.5A

Audio
Max power: 50W x 4 (50Wx2ch/4Ω + 70Wx1ch/2Ω for SUB-WOOFER)

Continuos power: 22W x 4 (50Hz to 15kHz, 5%THD, 4Ω LOAD, Both Channels Driven)

Load impedence: 4Ω (4 - 8Ω(2Ω for 1ch)　allowable)

Preout Output Level (Max): 4.0V

Preout Impedence: 250Ω

Preout Frequency response: 10Hz to 20kHz (+0dB , -1dB)

Preout S/N Ratio: 105 dB

Preout THD: 0.01%

Equalizer (13Band Graphic Equalizer) frequency: 50Hz, 80Hz, 125Hz, 200Hz, 315Hz, 500Hz, 800Hz, 1.25kHz, 2kHz, 3.15kHz, 5kHz, 8kHz, 12.5kHz ±12dB(0.1dB step)

General
Power Source: 14.4V DC (10.8-15.1V allowable)

Grounding System: Negative type

Max. current consumption: 9.2A

Dimensions: 170(W) x 40(H) x 95(D

Fuse: 10A

Weight: 0.59kg
