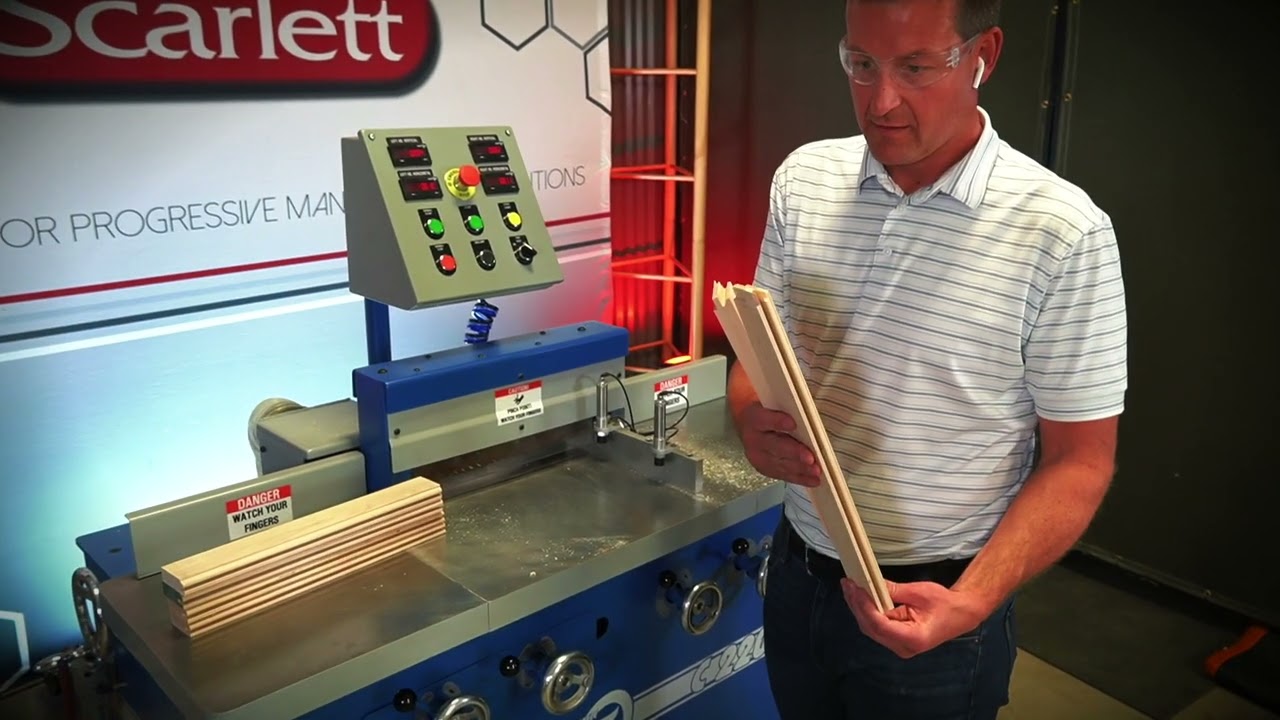

Circle T Easy Coping Machine C220 presented by Scarlett Inc

Описание: https://www.scarlettinc.com/used-mach...

Application Specifications:
● EASY Quick-Change Spindles INCLUDED
● EASY Foot Pedal Cycle Start
● EASY Pneumatic Hold Down Clamp System
● 16” Wide Cutting Capacity
● 5/8” to 1” Material Thickness

Utility Requirements:
● Dust Collection Requirements: 2 - 4"
Outlets, 670 CFM (each)
● Pneumatic Requirements: .3 CFM @ 100 PSI
to Power Table and Clamp
● 11.4 Amp FLA @ 460v 3ph (Motor FLA, not
disconnect size)
● 22.8 Amp FLA @ 230v 3ph (Motor FLA, not
disconnect size)

Drive Package Specifications:
● Main Motors: 2 - 5 H.P.
● 1.25” Spindles
● 3” and 4” (ID) Cutter Compatible
● Available in 220v 3ph, 460v 3ph, and Hydraulic

Drive Packages (some electric needed for readouts)
● Flat Belt Drive
● X and Y Axis Spindle Adjustments with DRO

Dimension Specifications:
● Table Size: 53” L x 16” W
● Table Height: 36”
● Footprint: 53” L x 34” D x 60” H (Additional 17” needed on left side for table movement)
● Working Area Footprint: 70” L x 34” W x 60” H
coping machine
