Torn v3.0 Keyboard Build log
Автор: Rafael Delboni
Загружено: 2021-03-25
Просмотров: 8713
Описание:

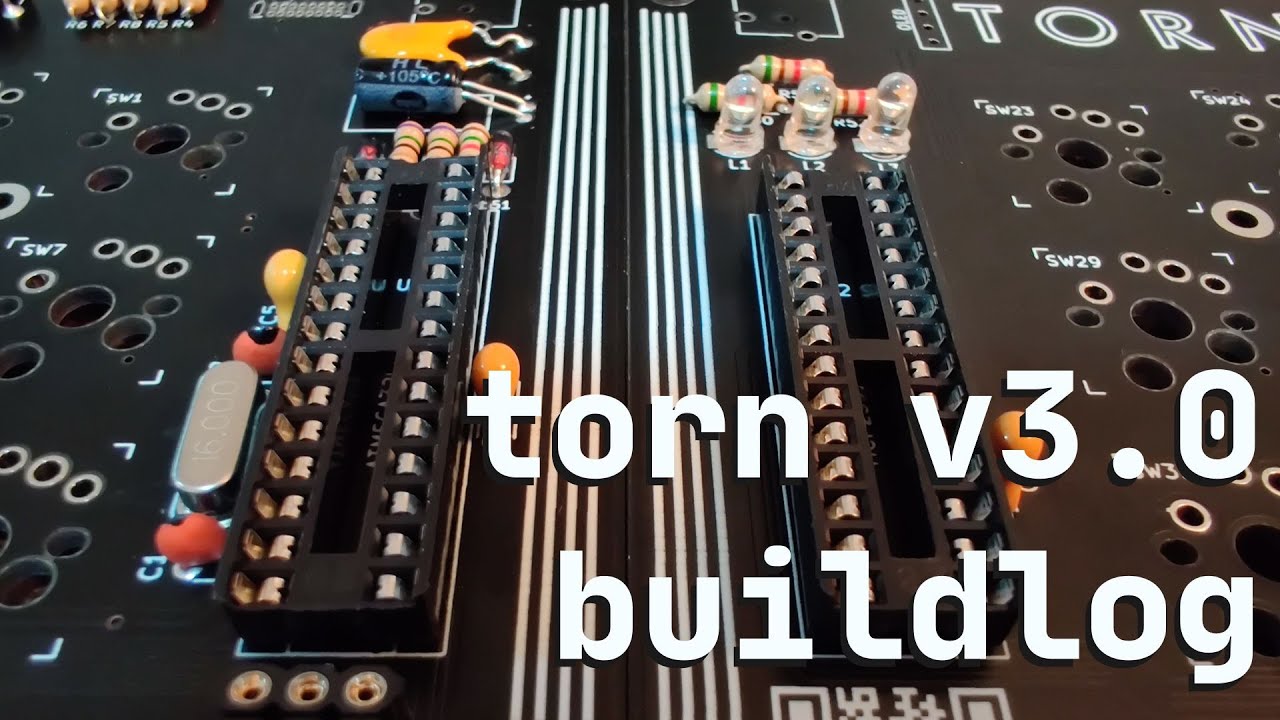

Torn is a split keyboard kit made by through-hole components only. The design has been inspired by the Corne, Plaid and Discipline keyboards.
For more details about this build you can check here:
https://github.com/rafaeldelboni/buil...
Intro: (0:00)
Diodes: (0:04)
5.1k Resistors: (1:33)
2.2k Resistors: (2:27)
10k Resistor: (4:28)
75r Resistors: (5:47)
1.5k Resistor: (7:35)
Zenner Diodes: (8:02)
22pf capacitors: (8:39)
100nf capacitors: (9:20)
Crystal oscillator: (11:30)
4.7uf electrolytic capacitor: (12:14)
MF-R050 fuse: (13:15)
Leds: (14:27)
Reset/Boot buttons: (15:33)
ICSP Sockets: (16:40)
IC Sockets: (17:31)
TRRS Jacks: (18:26)
USB-C Plug: (19:51)
Inserting ICs: (21:23)
Flashing bootloader: (22:13)
Flashing firmware: (24:22)
OLED Display: (25:04)
Kailh hot-swaps: (25:52)
Rotary encoders: (27:54)
Cleaning the flux: (30:33)
Case: (31:08)
Switches: (33:28)
Testing: (34:29)
Outro: (35:36)
