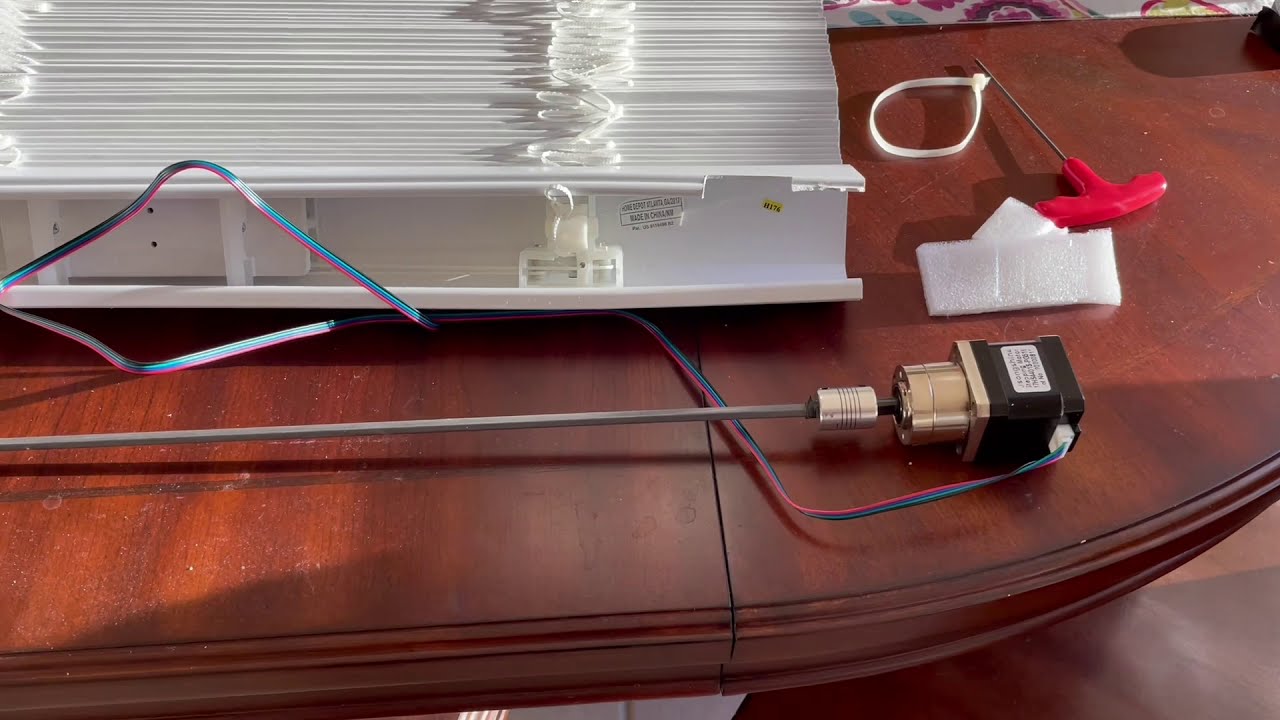

Smart blinds Alexa

Описание: How to make 2" blinds to open and close with Alexa or web server. I use ESP32 and TMC2208 Bipolar motor driver to make automatic shade control.
After assembling the hardware connected to the stepper and use the web server to turn motor in both direction before installing in it on shade, this should work without forwarding . Within Sketch I did taking care of last position of shade, also stepper only respond to consecutive command Open follow with Close or voice versa and repeated consecutive Open or Close will be ignored, also number of motor turns and status of last position have been saved within EEPROM on ESP32 that power interruption does not effect operation of system, After power restore the 1st thing that happen ESP read the last status of shade and saved number of motor turns before proceed to loop part of sketch.

PM me for copy of Sketch.


Link to how to make web server with ESP32:
   • Build an ESP8266 Web Server with Arduino I...

Link to how to connect web server to Alexa:
   • DIY Alexa Smart Home Device using ESP8266,...

Hardware component:
Stepper: https://www.amazon.com/gp/product/B07... ( no gear box)
https://www.amazon.com/gp/product/B07.... (with 5.18 :1 gearbox)

Stepper shaft coupler:
https://www.amazon.com/gp/product/B07...

Driver for Bipolar stepper:
https://www.amazon.com/gp/product/B07...

ESP32:
https://www.amazon.com/ESP-WROOM-32-D...

https://www.amazon.com/gp/product/B08.... ( with External antenna)

https://www.amazon.com/gp/product/B07.... (Antenna for ESP32)

Small bread board:
https://www.amazon.com/Pcs-MCIGICM-Po...

Capacitor: 25V 100uf
https://www.amazon.com/Projects-Radia...

Some wire for connection:
https://www.amazon.com/MCIGICM-Breadb...

Pin Headers for motor:
https://www.amazon.com/Header-Lystaii...

Buck convertor to change input voltage of 6-24v to 5 v supply for ESP32
https://www.amazon.com/gp/product/B07...

18V supply to power up the system
