Flexible and Standards-Compliant Datum References for Geometric Tolerances
Автор: NHKVietNam
Загружено: 2017-12-04
Просмотров: 55

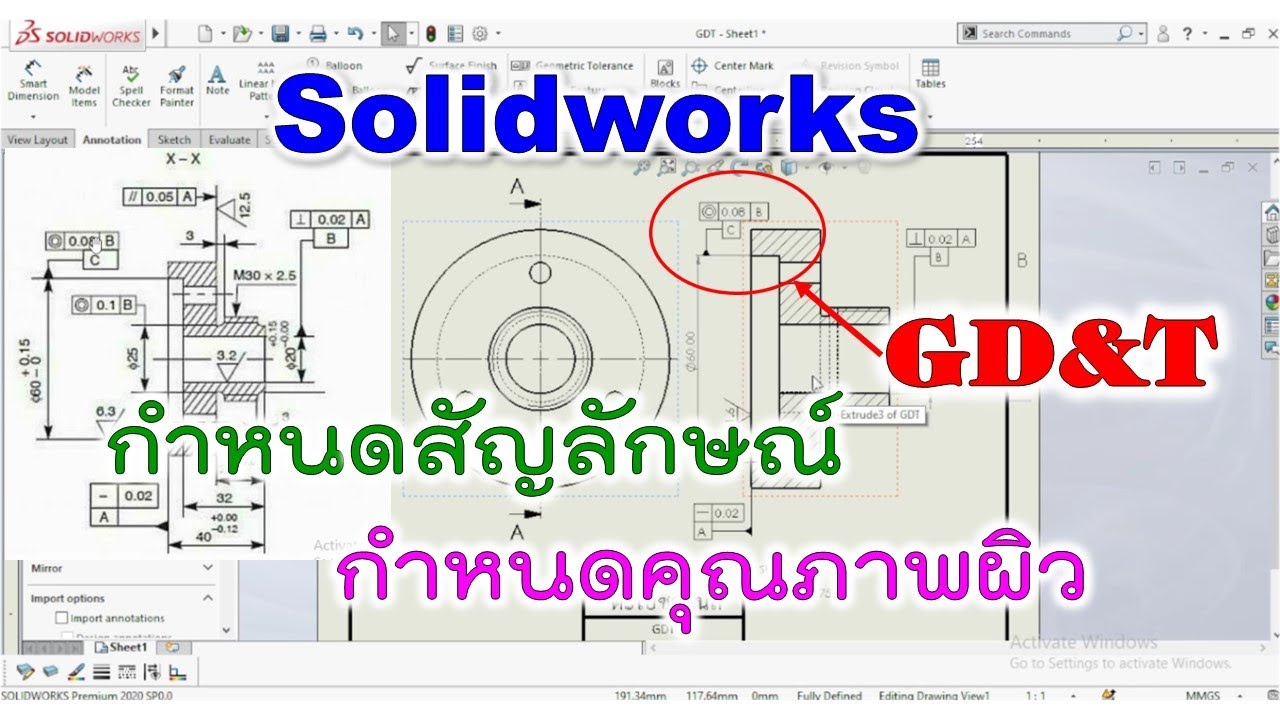

Описание: Specifying the datum references in a GTOL is faster and easier. If the datum feature symbol exists in the model or the drawing, you can select it by clicking the icon to select the datum reference from the model. The datum reference name appears in the datum box. You can also type the datum name in the box. If the datum feature symbol exists, a connection is established between the datum feature symbol and the GTOL. Datum references with a connection to an existing datum feature symbol appear as green text in the datum boxes in the Geometric Tolerance tab. If the datum feature symbol does not exist in the model, the datum reference box is populated with plain text. This allows you to create GTOL annotations without first having to create a datum feature symbol. Datum references specified as plain text and with no connection to an existing datum feature symbol appear as black text
