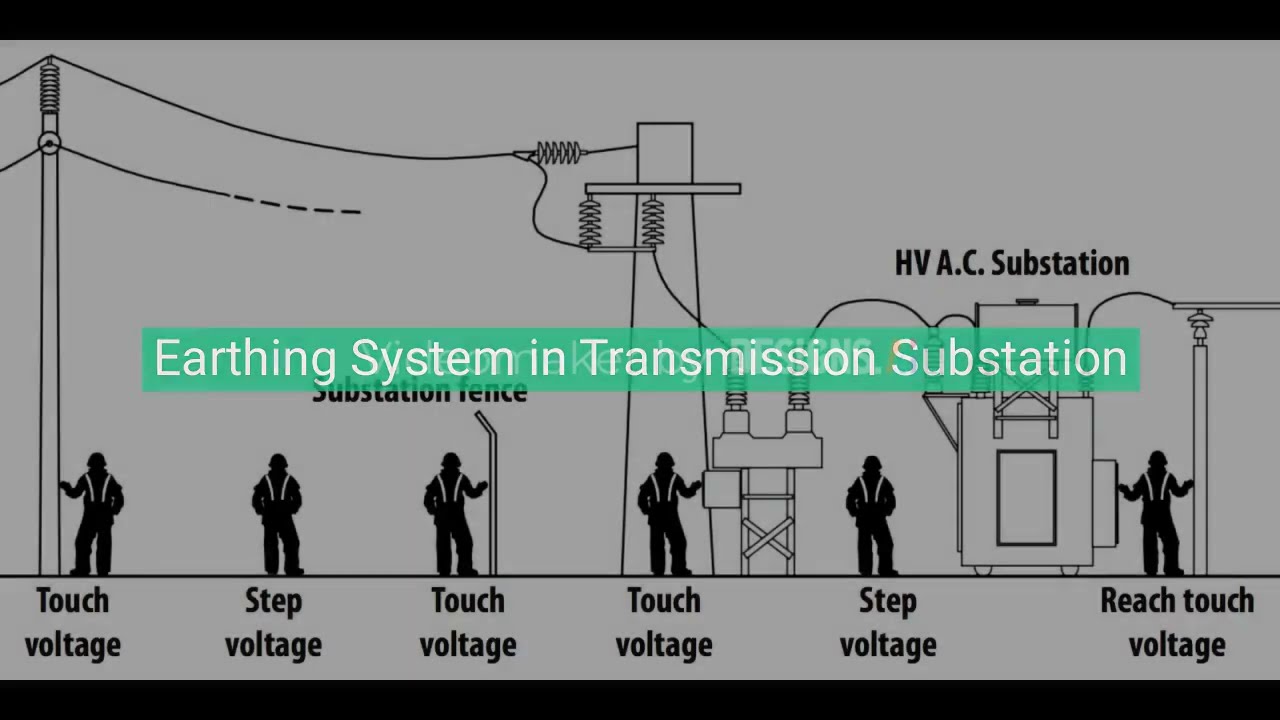

Описание: Welcome to this video about the earthing system grid in a transmission substation. The earthing system grid is a critical component of any substation, ensuring the safety of personnel and equipment during normal and fault conditions.

The earthing system grid consists of a network of conductors buried in the earth, connected to all the electrical equipment in the substation. This network of conductors provides a low-resistance path to the earth, allowing any fault currents to safely dissipate.

There are different types of earthing systems used in transmission substations, such as the solid earthing system, the resistance earthing system, and the high resistance earthing system. Each system has its own advantages and is selected based on the specific needs of the substation.

The design of the earthing system grid follows guidelines established by IEEE 80, which provides recommendations for the design, installation, and maintenance of earthing systems in power substations. IEEE 80 guidelines ensure that the earthing system grid provides a low-resistance path to the earth, limiting the potential for touch and step voltage hazards.

Periodic testing and maintenance of the earthing system grid is essential to ensure its effectiveness. The earthing system grid is typically tested using specialized equipment to verify its resistance and to detect any deterioration that may occur over time.

In a transmission substation, the earthing system grid is critical for the safety of personnel and the reliable operation of electrical equipment. Proper design, installation, and maintenance of the earthing system grid are essential to ensure its effectiveness and to minimize the risk of electric shock and equipment damage.
