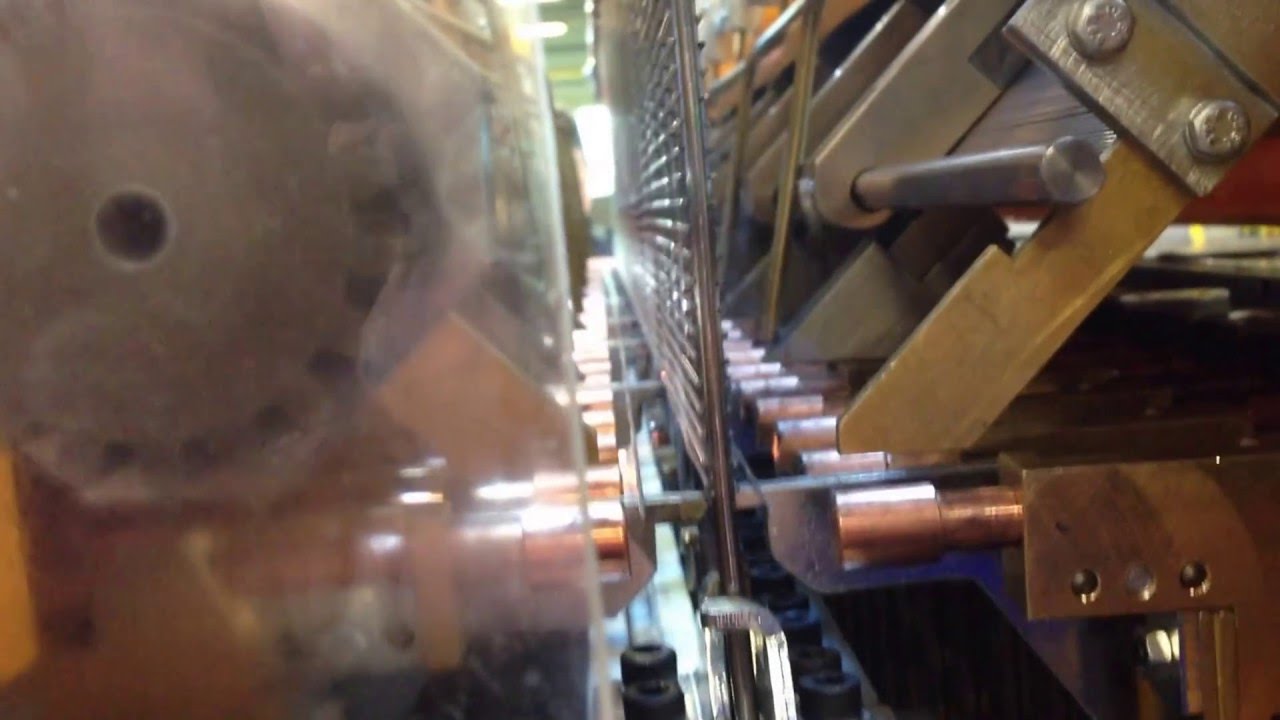

condenser welding machine /kondenser kaynak makinesi
Автор: Mekatronik Engineering Turkey
Загружено: 2016-04-20
Просмотров: 1653
Описание:
Working Interval
Condenser Width
Mono Loading Max. 1.800 mm
Binary Loading Max. 800 mm
Triad Loading Max. 600 mm
[email protected]
Wire Diameter and Heights
Ø 1.3 Max. 1.800 mm
Ø 1.5 Max 1.800 mm
Ø 1.6 Max. 1.800 mm
Condenser Height Max. 1.400 mm
Tube Diameter 4.76 – 8.00 mm
Tube Axis Interval Min. 35 mm
Wire Diameter 1.3 – 1.6 mm
Wire Interval Min. 4 mm
Welding Electrode Number 32 / 32
Drift in Wire Placing Interval + - 0.1 mm
Drift in Wired Tube Interval + - 0.5 mm
PERIODS and EFFICIENCY
Each Wire (right / left) Welding Total Period 0, 45 sec.
Total Welding Period (for 50 wires) 28 sec.
[email protected]
