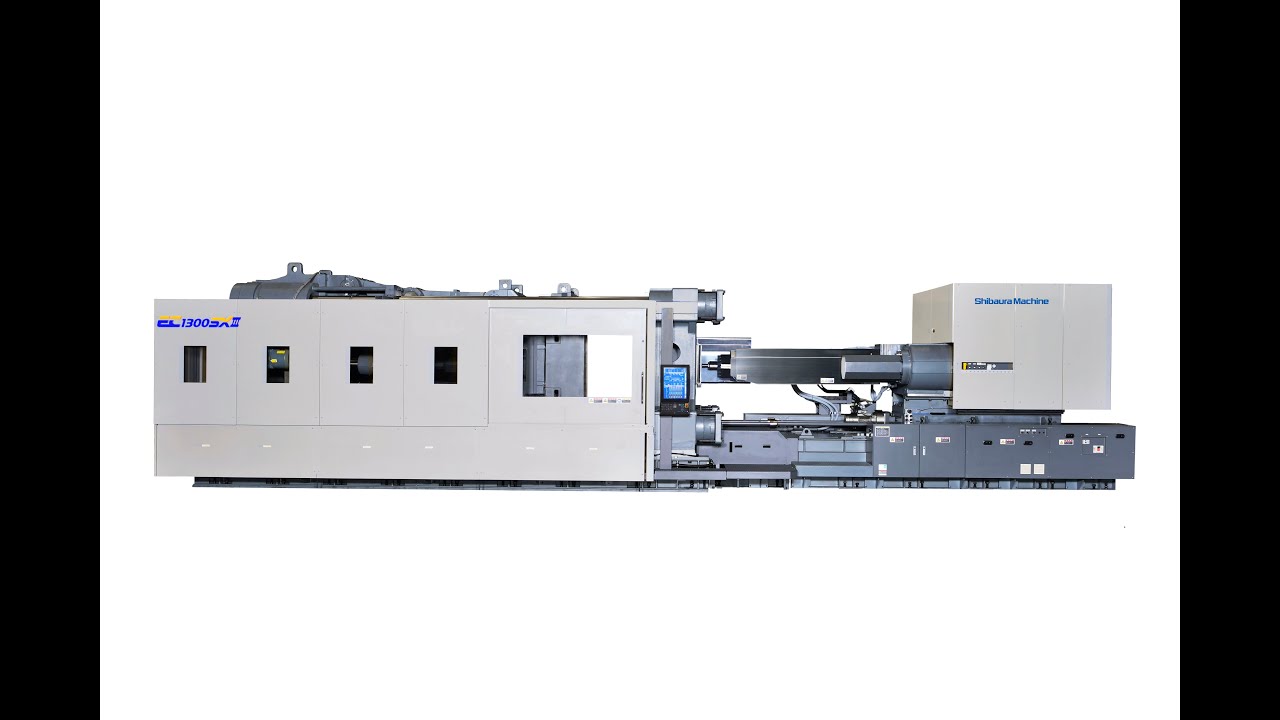

SHIBAURA MACHINE, the new SXIII Series All-Electric Injection Molding Machines

Описание: V70 Controller - 19" True Split Screen with Touch/Swipe Functionality
With the new Injectvisor V70, you get a controller designed with the smart factory in mind, one that’s capable of integrating with auxiliary equipment via OPC-UA communication. Packed with new tools for speeding up mold set ups, optimizing cycle times, analyzing part defects, troubleshooting molding defects and more, giving you a faster payback on your machinery investment.

V70 Controller
Ball Screws - uniquely designed for high performance and long operating life
Ball screws designed specifically for injection molding with a dual run of balls that spread the load over twice the area of typical ball screws. We also incorporate spacers between each ball ensuring long, trouble-free operating life.

ECSX II Ball Screw Lo Res RGB
Linear Guides for Rigid, Precise Machine Movements
On the moving platen, linear guides are used instead of tie bar bushing to ensure steady, precise movement. This friction free drive system is also used on the injection unit to ensure more accurate injection speed and back pressure control. This ensures shot-to-shot repeatability over the life of the machine.

ECSXIII - Linear Guide - Moving Platen
With bushing-free, grease-free tie bars, there's less chance of contaminating molded parts, increasing your shop's quality.

Grease Free, Bushing Free Tie Bars
5-point Linkline toggle mechanism - even force distribution, extended mold life, and reduced maintenance
The ECSXIII's 5-point Linkline toggle mechanism is angled to distribute force evenly across the platen, increasing quality and minimizing defects. It has the added benefit of extending mold life and reducing machine maintenance.

ECSXIII - Clamp Mechanism
Dual Hydraulic Core Pull Program & Electrical Interface
Our machines come equipped with dual core pull programming and interface. Portable hydraulic power units are sold separately, but can be added at any time. Our portable hydraulic units simply plug into the standard interface, for easy, "plug and play" use.

ECSX II Hydraulic Core Power Unit Lo Res RGB
Auto Tonnage Adjustment via Strain Gauge on Tie Bar
This feature utilizes a strain gauge on the tie bar to monitor actual tonnage. Tonnage can be automatically adjusted on-the-fly to ensure accurate tonnage at all times. This prevents over-tonnage as the mold heats up and expands, helping to prevent mold damage and early tool wear.

SPI Robot Interface
Shibaura ECSXIII machines come equipped with a Euromap 67 (50 pin) robot interface receptacle. Euromap 12 (32 pin) robot interface is also available.

Auxiliary Equipment Integration Available
The OPC-UA architectures of our V70 controller allows the possibility of integration with ancillary equipment as well as potential data communication with plant ERP and MES systems.

Integrated Hot Runner Control & Robot
Shibaura machines come equipped with dual air blow for help with ejecting difficult parts.

Dual Air Blow
Single Pneumatic Core Pull, timer only & Single Zone Pneumatic Valve Gate

Heater Band Failure Alarm
This feature allow you to quickly identify a failed heater band and replace it quickly. With competitor's machines, first the process suffers as a particular heat zone struggles to maintain temperature. Once someone recognizes that there is likely a failed heater band, they must then test each band within that zone to determine which one is bad.

Heater Bands
Quick connection for heater bands and thermocouples using Harting connectors.

Heater Connections Lo Res RGB
6 selectable, programmable output signals


6 Selectable, Programmable Outputs
USB Memory Ports

V70 USB Ports
The ECSXIII uses and advanced load cell which ensures accurate control of injection pressure. In combination with the V70 controller, this load cell achieves scientific molding over the balance of the mold without the use of internal transducers.

Advanced Load Cell
Easy access to the ejector plate of the machine, for faster, easier mold changes.
