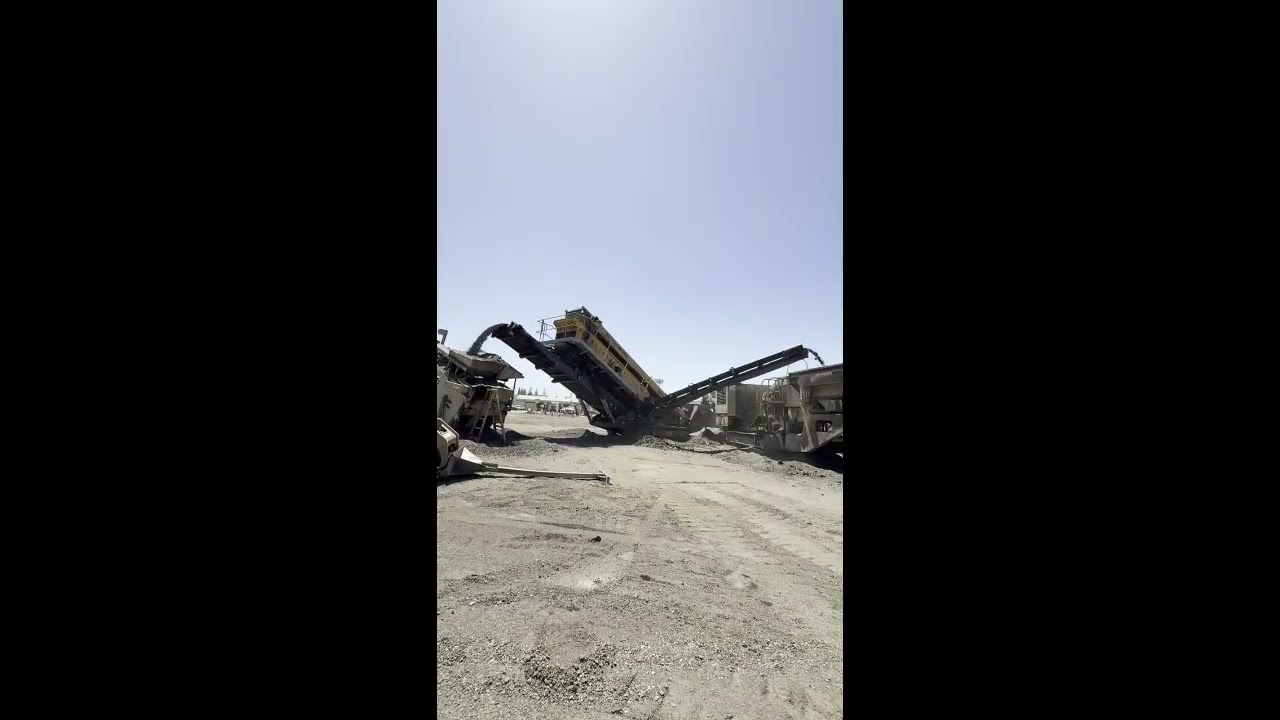

2020 IROCK TS520 For Sale

Описание: https://www.truckpaper.com/listing/fo...
FEATURES
FEED CONVEYOR...
Belt width 48” (1200 mm)
Belt spec Plain 500/3 6+3
Drive drum dia. 13.1” (335 mm)
Tail drum dia. 12.5” (320 mm)
Gearbox Bonfig 805 W2
Gearbox ratio 24.2
Gearbox torque 7000Nm cont, 12500Nm max
Motor Danfoss OMSS160
Flow rate 19.2 GPM (72.6 LPM)
Adjustable speed YES
Maximum speed 18.75 rpm"
"MAIN CONVEYOR...
Belt width 1050mm (42"")
Belt spec Chevron 400/3 6+1.5
Drive drum dia. 11.2” (285 mm)
Tail drum dia. 10.6” (270 mm)
Motor Danfoss OMV800
Flow rate 26.7 GPM (101.2 LPM)
Adjustable speed
Maximum speed 126.5 rpm"
"TAIL CONVEYOR...
Stockpile height - track model 15’ – 3” (4.638 m)
Belt width 48” (1200 mm)
Belt spec Plain - 400/2 6+1.5
Drive drum dia. 285mm (11.2"")
Tail drum dia. 270mm (10.6"")
Motor Danfoss OMV800
Flow rate 26.2 GPM (101.2 LPM)
Maximum speed 126.5 rpm"
"SIDE CONVEYOR...
Stockpile height - track model 16’ – 9” (5.1 m)
Belt width 32” (800 mm)
Belt spec Chevron - 400/3 6+1.5
Drive drum dia. 11.2” (285 mm)
Tail drum dia. 10.6” (270 mm)
Motor OMT400
Flow rate 13.4 GPM (50.6 LPM)
Adjustable speed YES
Maximum speed 126.5 rpm
Drum centers 33’ – 8” (10.275 m)"
"SCREENBOX...
5’ x 20’ (1524 mm x 6100 mm) -top deck
5’ x 18’ (1524 mm x 5490 mm) -Bottom deck
Bearing type NSK 110 mm bore
Screens - top deck 5' x 4' side tension - QTY 5
Screens - bottom deck 5' x 6' end tension - QTY 3
Tensioning - top deck side tension
Tensioning - bottom deck Curved tension bar and adjuster
Screen angle 20 to 30 deg
Screen motor DBH MCC2213 (85.7 cc/rev)
Drive system Direct drive with HRC180 coupling
Hydraulic flowrate 26.7 GPM (101.2 LPM)
Speed adjustable YES - Pressure compensated FCV
Screen stroke adjustable 6 – 10 mm maximum
Screen shaft speed 1130 - 950 rpm
Screen 'g' force 4.29 - 5.05 g"
"POWERUNIT AND HYDRAULICS...
Engine CAT® 4.4
Engine speed 2,200 rpm
Flywheel Pump 1 DBH 5046,5046,5033
LH PTO Pump 2 DBH 5023,5023,19.5
Total system flow 110.7 GPM (419 L)
Hydraulic tank capacity 166 gal (630 L)
Hydraulic tank ratio 1.51 : 1
Hydraulic Oil cooler "
"CONTROLS...
Emergency stops 6 off, 1 feeder, 2 powerunit RH&LH, 2 chassis front RH&LH, 1 Walkway
Chassis cabling Armored cable
Start Siren - 10 sec delay
Engine shutdowns: Low oil pressure, High water temp, Air filter blockage (selectable), Fuel contamination, Low hydraulic tank level
Engine room light
Remote tipping grid - 2 function timed
Radio control tracks
Pendant track control - plugged in at feeder end"
"TRACKS...
Width 19.7” (500 mm)
Length 12’ – 6” (3.8 m) crs
Height 31.4” (798 mm)
Gearbox Bonfiglioli 709
Ratio 148:1
Motor Rexroth 90
Speed max 0.71 mph (1.14 kph)
Flow rate 26.7 GPM (101.2 LPM)
Attachment to chassis - Bolt On for quick change"

EXCLUDES: Freight, setup or installation, screen media or its installation, taxes, fees or permits.
