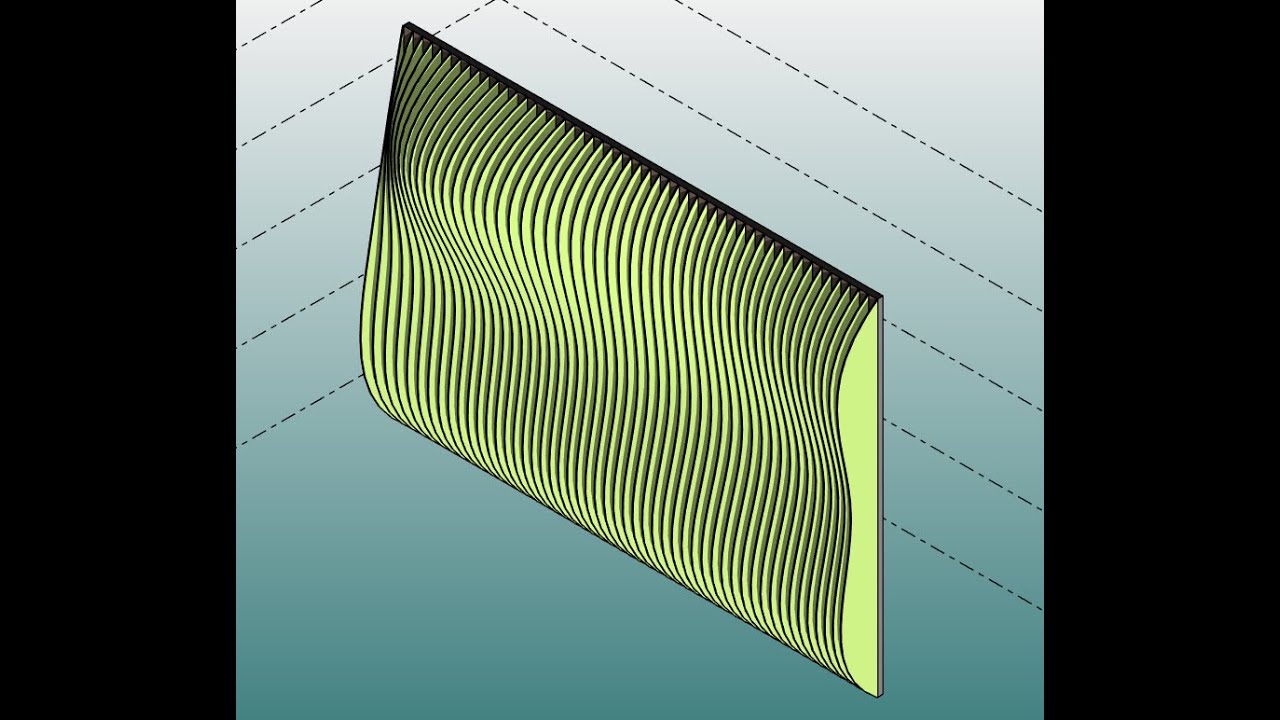

Revit Tutorial (Day 20) - Parametric Curved Blades Facade using Mass and Adaptive Family
Автор: Bin He's Revit Study Channel
Загружено: 2020-04-10
Просмотров: 3103
Описание:
(Self-isolation Day 20)
Today we are going to do another facade modeling.
You will be able to control the material, spacing as well as the curve.
Here are the steps:
1. Place multiple points in different levels, create splines using these points and turn them into reference lines.
2. Create forms from these reference splines.
3. Create an adaptive family with multiple adaptive points. Set the material and thickness parameter(Type).
4. Load the family into the project, and place it onto the nodes.
5. Repeat to create all the blades.
6. Adjust the curve of the mass, spacing, material, etc. to achieve your goal.
Enjoy.
