Frsky receivers : L9R versus R9

Описание: ► FLYING WING #1 : Zeta Science Z-84 "Wing Wing"
Wingspan : 84cm
Total weight : 490gr (Li-po) to 580gr (Li-ion)
Flight time : 15min (Li-po) to 60min (Li-ion)
Flight controller : STM32 SP Racing F3, software iNav 1.9.0
GPS : M8N Ublox

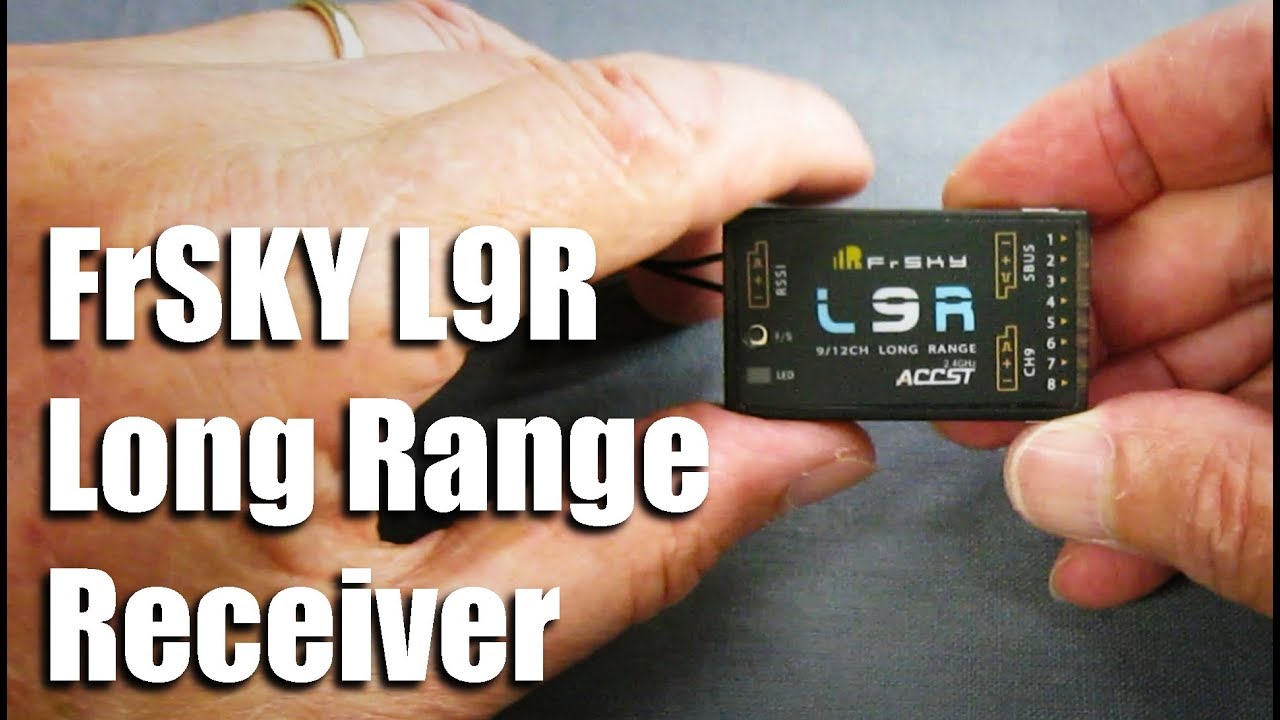

Radio system : FrSky Horus X12S, receiver L9R 2.4GHz
FPV transmitter : Quanum Elite QE-58
OSD : Micro MinimOSD with software MWOSD 1.6.0
Onboard HD camera : Foxeer Legend HD2 1440p 30FPS
Onboard FPV camera : Foxeer XAT600M CCD 2.8mm
Motor : Cobra 2204 2100kV
Speed controller : AfroESC 30A, firmware BLHeli 14.9
Power supply : Standalone 5V/3A BEC module
Propeller : 6x4 DALprop
Batteries : Li-po 4S-850mAh 25C or Li-ion 4S 3000mAh (LG HG2 4S1P)

► FLYING WING #2 : Ritewing Mini Drak
Wingspan : 102cm
Total weight : 1300gr
Flight time : 20-30 minutes
Flight controller : SP Racing F3, software iNav 1.9.1 DEV
GPS : DJI Naza
OSD : Micro MinimOSD with MWOSD 1.6.0
Radio system : FrSky Horus X12S, receiver FrSky R9
FPV transmitter : 5.8GHz EAchine ET526
Onboard HD camera front : Runcam Split v2 1080-30p
Onboard FPV camera : Sony HS1177 CCD PAL 2.8mm
Motor : Sunnysky X2216 1400kV
Propeller : HQprop 8x5 Bullnose
Speed controller : Aerostar 60A with BEC 5A 5.5V
Auxilliary 5V-12V : Matek PDB FCHUB-6S
Batteries : 2x LiPo 4S-1800mAh 45C or 1x LiPo 4S-3200mAh 65C
