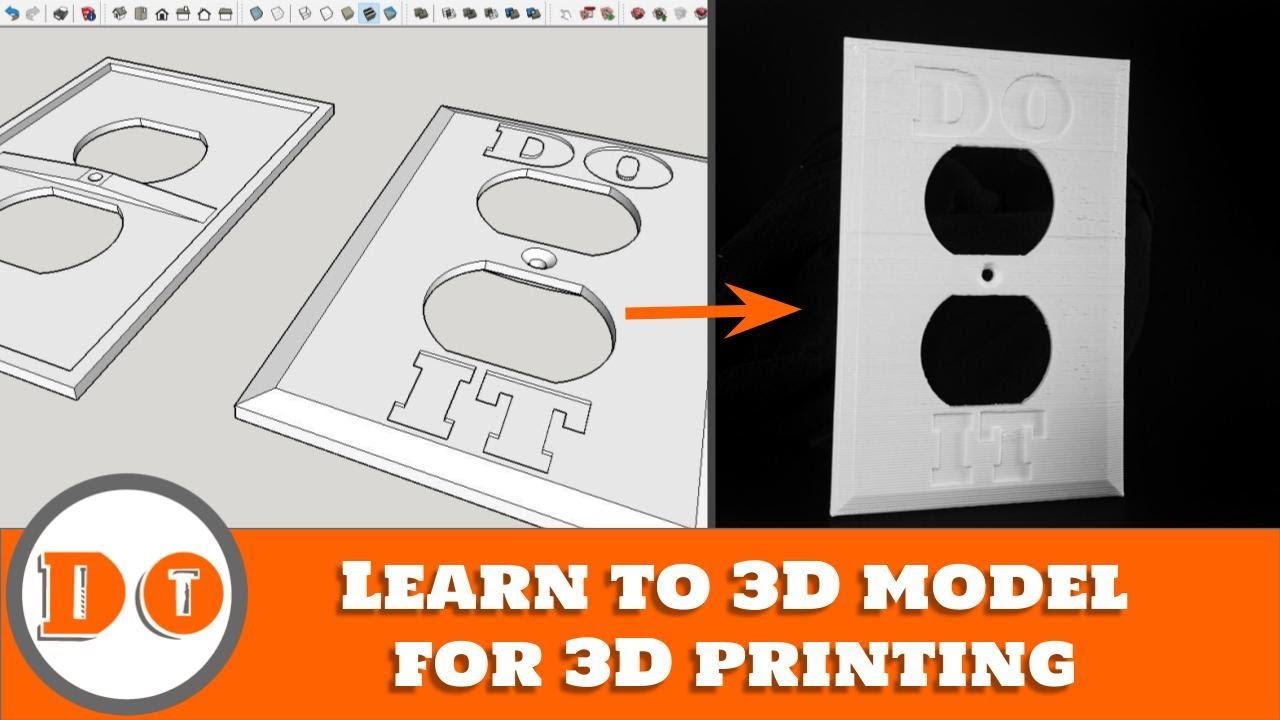

3D modeling Sketchup tutorial - Custom outlet wall plate
Автор: Do It
Загружено: 2017-08-01
Просмотров: 3246
Описание:
This is one of a four part series on using different software and CAM (Computer Aided Manufacturing) systems to create a custom electrical outlet wall cover. In this segment, you'll see the entire 3D modeling process in Sketchup from start to finish, including exporting the model to file types common for 3D printing, like OBJ and STL.
Other videos in this series:
Create the vector model and exporting tool paths for CNC - • CNC vector modeling Aspire tutorial - Cust...
CNC outlet cover build video - • How to make a custom outlet wall cover on ...
Build video for the 3D printed version - not yet posted
This part file is available on thingiverse here:
https://www.thingiverse.com/thing:242...
Update The text was modified to be recessed into the material, rather than extruded outward. We thought it might interfere with larger plugs.
Download the full sketchup file from this tutorial here:
https://drive.google.com/open?id=0B36...
Sketchup - http://www.sketchup.com/
Sketchup STL extension - https://extensions.sketchup.com/en/co...
