TIPTOP Halogen Light Bulbs 220V EU Type Dimmer DMX Controller TP-2408A

Описание: 产品参数：
品牌：基嘉GIGERTOP
生产商：广州不夜天舞台灯光
电压: 220V (请注意这个调光器是单电压 只单独适合220V地区国家）
输出插座：欧插母座子
输出功率：每路1000W，合计最高4000W
适合灯具：卤素灯泡（请注意这一款不适合LED灯具！！！）
纸箱尺寸：37cm x 28cm x 16cm
包装重量：3kg

1.模式按钮：此按钮将在DMX和追赶者之间更改操作模式。
2.菜单按钮：此按钮将激活DMX和追逐模式下的不同功能。
3.向上按钮：此按钮将增加LCD显示屏中的显示值。
4.向下按钮：此按钮将减小LCD显示屏中的显示值。
5.电源输出：3脚接地的Edison输出插座。 8个总输出插座。
6.绿色L.E.D.指示灯：这些LED将指示其相关的通道活动。
7. LCD显示屏：此多功能显示屏将详细列出与电池组当前操作模式有关的所有程序和程序。
8.通道保险丝：四个通道中的每一个均受10A保险丝保护。这些保险丝可防止您过载和损坏包装。确保始终更换完全相同类型的保险丝。
9.电源开关：此开关控制设备的主电源。
10.电源线：将此电源线插入您所在地区的匹配电源中。
11. DMX输入：此连接器接受您的DMX输入信号。
12. DMX输出：此连接器将您的DMX输入信号发送到下一个DMX设备。


Product specification:

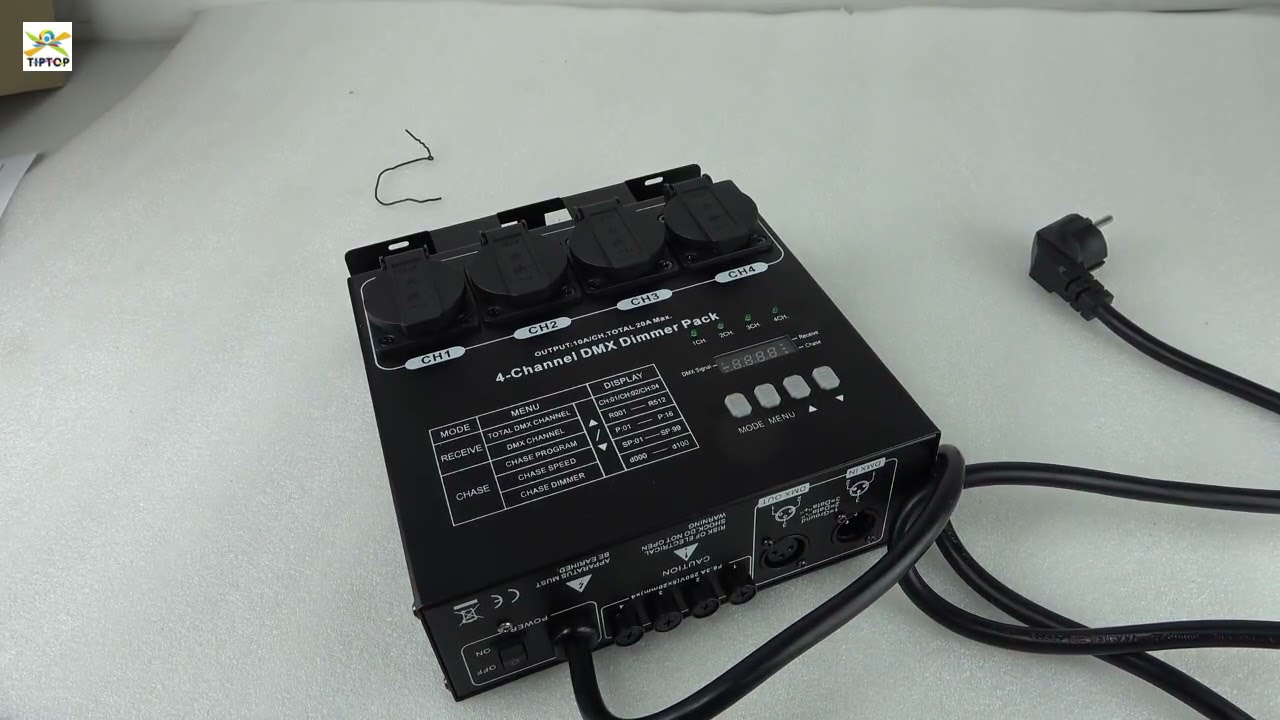

ITEM NAME: 4 CH DMX DIMMER PACK
Power: AC220V 50Hz
Machine size: 26X21X19cm
Machine weight:3kg
Fuse: F6.A 250V 5x20mm, 4PCS
Power output socket: 4 female EU power plug and each port support 1000W

1. Mode Button: This button will change the operate mode between DMX and chaser.
2. Menu Button: This button will activate the different functions in DMX and chase modes.
3. Up Button: This button will increase the displayed value in the LCD display.
4. Down Button: This button will decrease the displayed value in the LCD display.
5. Power Output: 3-prong grounded Edison output sockets. 8total output sockets.
6. Green L.E.D. Indicators: These LEDs will indicate their relevant channel activity.
7. LCD Display: This multifunction display will detail all chase and program that pertains to the current operating mode of the pack.
8. Channel Fuses: Each of the four channels is protected by a 10A fuse. These fuses prevent you from overloading and damaging your pack. Be sure to always replace with the exact same type fuse.
9. Power Switch: This switch controls the units main power.
10. Power Cord: Plug this cord into a matching power supply for your area.
11. DMX Input: This connector accepts your DMX input signal.
12. DMX Output: This connector sends your DMX input signal through to the next DMX device.
