How to Draw Cam Profile & Displacement Diagram in AutoCAD | Mechanical Tutorial in Hindi
Автор: CAD Tutor Hindi
Загружено: 2025-12-30
Просмотров: 59
Описание:

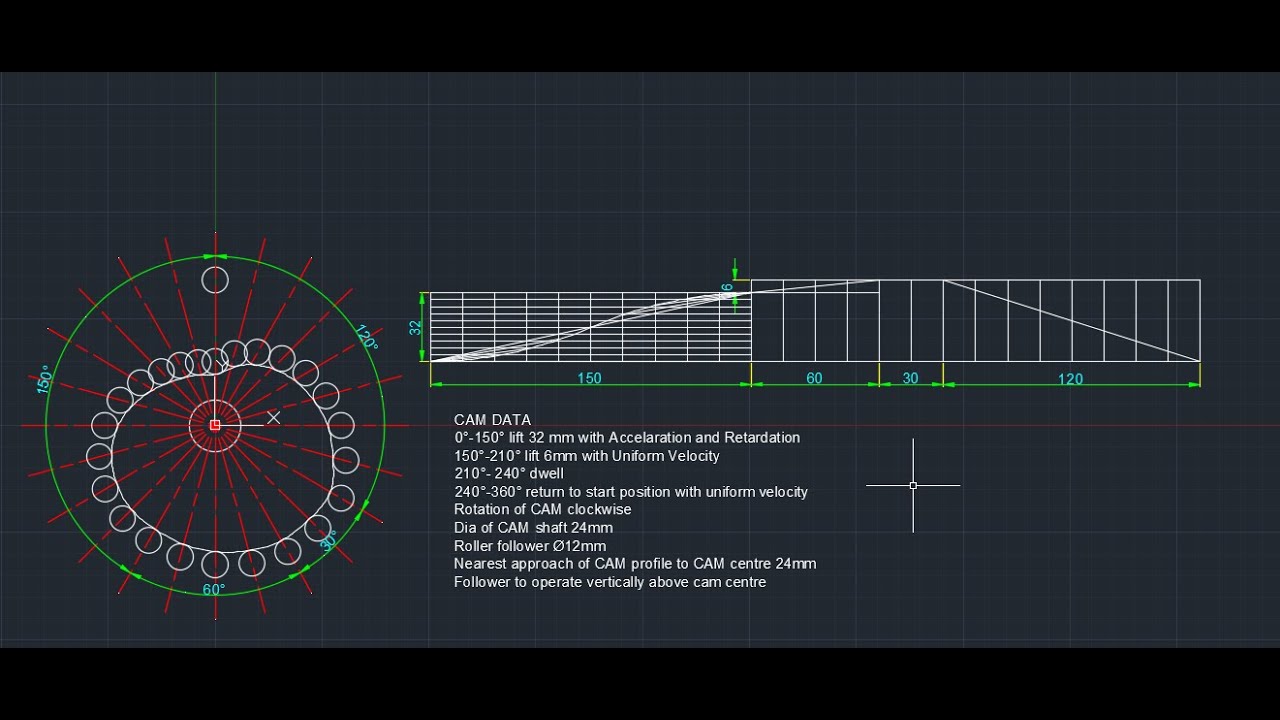

In this video, you will learn how to draw a Cam Profile and its Displacement Diagram using AutoCAD step by step in Hindi. This tutorial explains the complete mechanism drawing process according to mechanical engineering and engineering drawing standards, making it ideal for ITI, Diploma, Polytechnic, and Mechanical Engineering students.
🔧 What you will learn in this tutorial:
Introduction to Cam and Follower mechanism
Types of cam motion and their applications
Step-by-step construction of Displacement Diagram
Method to convert the displacement diagram into a Cam Profile
AutoCAD commands used for accurate drafting
Proper dimensioning and layout as per engineering standards
🎓 This video is useful for:
ITI Draughtsman Mechanical trainees
Diploma / Polytechnic Mechanical students
Engineering Drawing and Kinematics learners
AutoCAD beginners and mechanical design aspirants
💻 Software Used: AutoCAD (All Versions)
🗣️ Language of Explanation: Hindi
Watch the complete video to strengthen your understanding of cam mechanisms and improve your AutoCAD mechanical drawing skills.
👍 Like | Share | Subscribe for more AutoCAD Mechanical Tutorials in Hindi
