Types of Cartridges for Industrial Dust Collectors with Pulse-Jet Cleaning Systems

Описание: When it comes to maintaining safe and efficient air quality in industrial environments, cartridge dust collectors with pulse-jet cleaning systems have become the go-to solution for a wide range of industries—from metalworking and pharmaceuticals to woodworking and food production. At the heart of these systems are the filter cartridges, which trap airborne particulate matter and ensure clean air is returned to the facility.

Let’s explore the main types of filter cartridges, their shapes, materials, and applications, along with the U.S. regulations that shape their use.

🔄 How Pulse-Jet Cleaning Works
Before diving into cartridge types, it's important to understand the pulse-jet system. In this setup, compressed air is periodically released in short bursts (pulses) inside the cartridge. This pulse creates a shockwave that dislodges dust accumulated on the filter media surface. The dislodged dust falls into the hopper for removal, allowing the filter to continue operating without shutdown.

This automatic self-cleaning system makes pulse-jet collectors ideal for continuous industrial use with high dust loads.

🔧 Common Cartridge Shapes

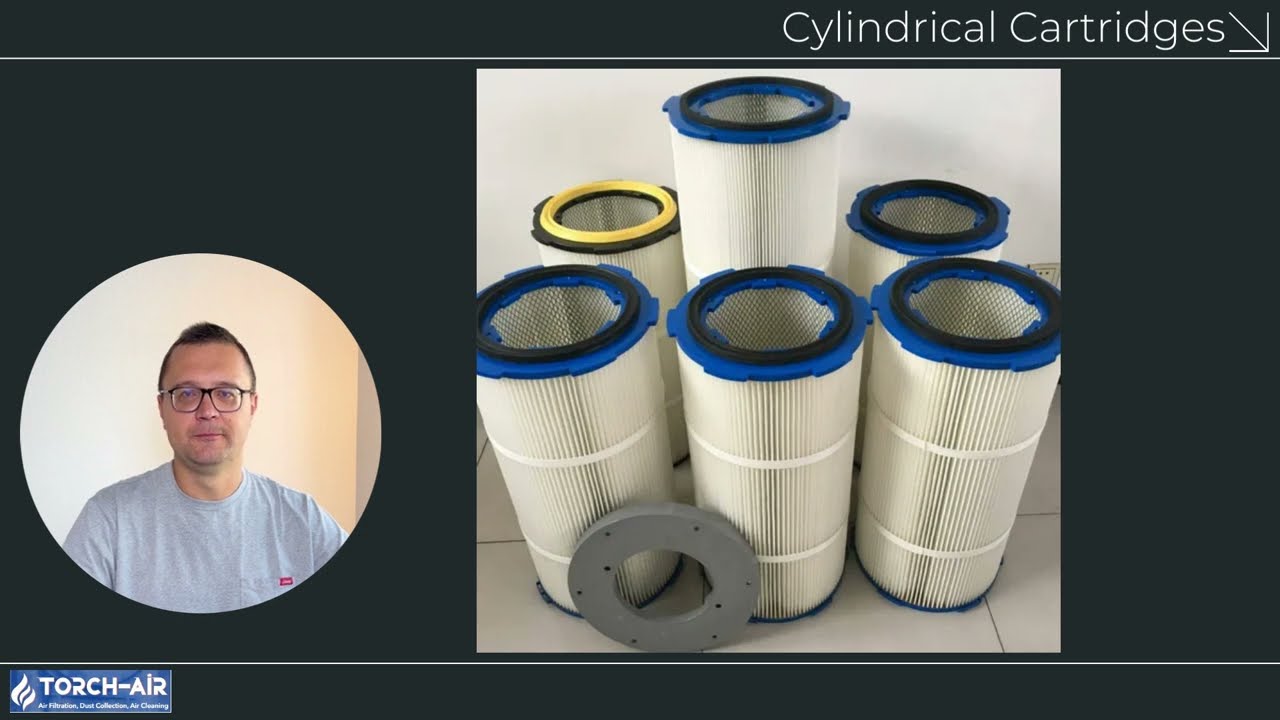

Cylindrical Cartridges

Standard Size: Typically 13.8" diameter x 26" or 39" height

Application: Used in vertical or horizontal mounting arrangements

Advantage: Balanced airflow, easy replacement

Conical-Cartridge Combo

Design: A hybrid of cone (bottom) and cylinder (top)

Benefit: Improved surface area and better airflow distribution

Used in: Compact dust collector units or modular systems

Oval Cartridges

Shape: Flattened oval profile

Advantage: Fits more filters in tight space, maximizes air-to-cloth ratio

Application: Used in high-volume dust collection systems

Panel Cartridges

Shape: Rectangular or square pleated filters

Application: Sometimes used in confined spaces or specialty units

Note: Less common than round models

🧵 Filter Media Types
The choice of filter media determines the filter’s efficiency, chemical resistance, temperature tolerance, and suitability for various dust types.

1. Cellulose Blend (80% cellulose, 20% polyester)
Efficiency: ~99% for 1-3 micron particles

Best for: Dry, non-aggressive dust (wood, powder paint)

Limitations: Sensitive to humidity and higher temperatures

2. 100% Spunbond Polyester
Washable: Yes

Strengths: Durable, moisture-resistant, reusable

Applications: Metalworking, food production, humid environments

3. Nano-Fiber Coated Media
Efficiency: ≥99.9% for sub-micron particles

Coating: Ultra-thin nanofiber membrane improves surface loading

Applications: Pharmaceuticals, welding fumes, toxic dust

Benefit: Lower pressure drop, longer service life

4. PTFE Membrane (Teflon)
Hydrophobic: Yes

Excellent for: Sticky or oily dust (food, chemical, paint)

Regulatory Note: Helps meet OSHA & EPA standards for hazardous particulate emissions

5. Aramid (Nomex®)
Temperature Tolerance: Up to 400°F

Applications: Foundries, asphalt plants, combustion-related industries

Resistance: Fire and spark resistant

6. Carbon-Impregnated Media
Purpose: Controls odors and VOCs (volatile organic compounds)

Use in: Battery plants, chemical processing, electronic manufacturing

🔥 Fire, Explosion, and OSHA Compliance
Cartridges used in combustible dust environments must comply with NFPA 652 and OSHA 29 CFR 1910.22 & 1910.94. Some key considerations include:

Anti-static filter media to reduce ignition risk

Grounded metal components to dissipate static electricity

Proper duct design to prevent deflagration

Also, facilities must perform a Dust Hazard Analysis (DHA) to determine the risks and necessary mitigation steps.

✅ Choosing the Right Cartridge for Your Application
When selecting cartridges for a pulse-jet system, consider:

Dust Type: Fine, sticky, abrasive, corrosive, or combustible

Air Volume & Load: CFM (cubic feet per minute) and dust concentration

Cleaning Frequency: Pulse timing and filter recovery rates

Temperature & Humidity Conditions

OSHA/EPA Regulations: Ensure filters meet emission standards

At Torch-Air, we offer a wide range of pulse-jet compatible filters, including:

https://torch-air.com/products/cartri...

FOEHN Cartridge Filters – Known for high surface area and nano-coating options

AKMAN Filters – Versatile and compact for general dust applications


📏 U.S. Regulatory Compliance & Resources
To ensure your facility operates within federal standards, refer to the following guidelines:

OSHA: Occupational exposure limits for dust
www.osha.gov

EPA: Emission control and air permit standards
www.epa.gov

NFPA 652: Standard on the Fundamentals of Combustible Dust
www.nfpa.org

Choosing the right filter cartridges for your pulse-jet dust collector is critical—not only for performance and maintenance but for workplace safety and regulatory compliance. Whether you're battling explosive metal dust or sticky sugar particles, Torch-Air offers filtration systems engineered for your exact needs.
