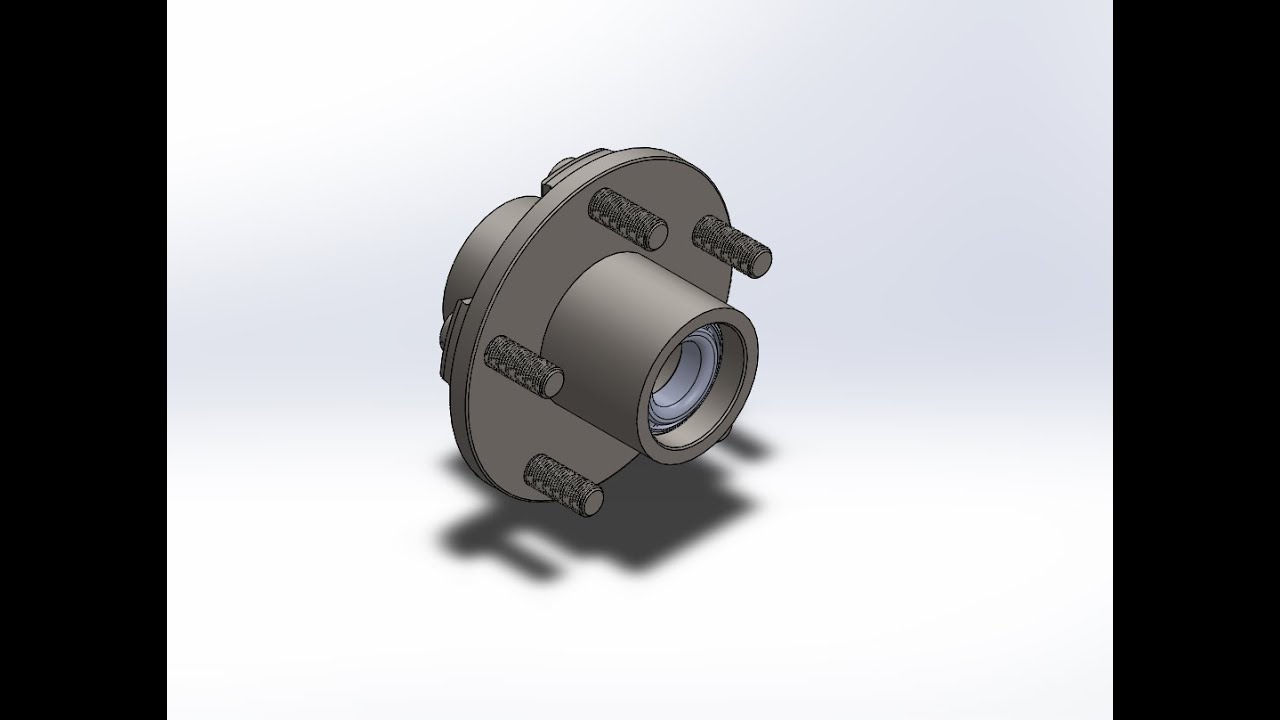

Trailer Idler Hub Assembly for 2K Lbs Axles 13" to 15" Wheels - 5 on 4-1/2"

Описание: Specs:
Application: 2,000-lb trailer axles with BTR spindles
Compatible with standard axles from most manufacturers,
including AxleTek, Dexter, Lippert (LCI), and AL-KO
Wheel size: 13" to 15"
Bolt pattern: 5 on 4-1/2"
Wheel stud dimensions: 1/2" diameter x 1-5/16" long
Hub diameter: 5.5" (139,70mm);
Grease cap flange diameter: 1.988" (50,29mm);
Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, Weight capacity: 1,000 lbs.

Hub is designed for use on trailer idler axles. Fits 2,000-lb axles with BTR spindles. Inner bearing (L44649) and race, outer bearing (L44649) and race, Weight capacity: 1,000 lbs
grease seal, grease cap, and lug nuts included. Fits 13" to 15" wheels.
Bearing, Race, and Seal Information
Bearings:
Inner bearing: L44649 (1.063" inner diameter)
Outer bearing: L44649 (1.063" inner diameter)
Races:
Inner race: L44610
Outer race: L44610
Grease seal: 10-9
Inner diameter: 1.50"
Outer diameter: 1.987"

Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes.
The second number denotes the diameter, in inches, of the circle
on which the bolt holes sit.
