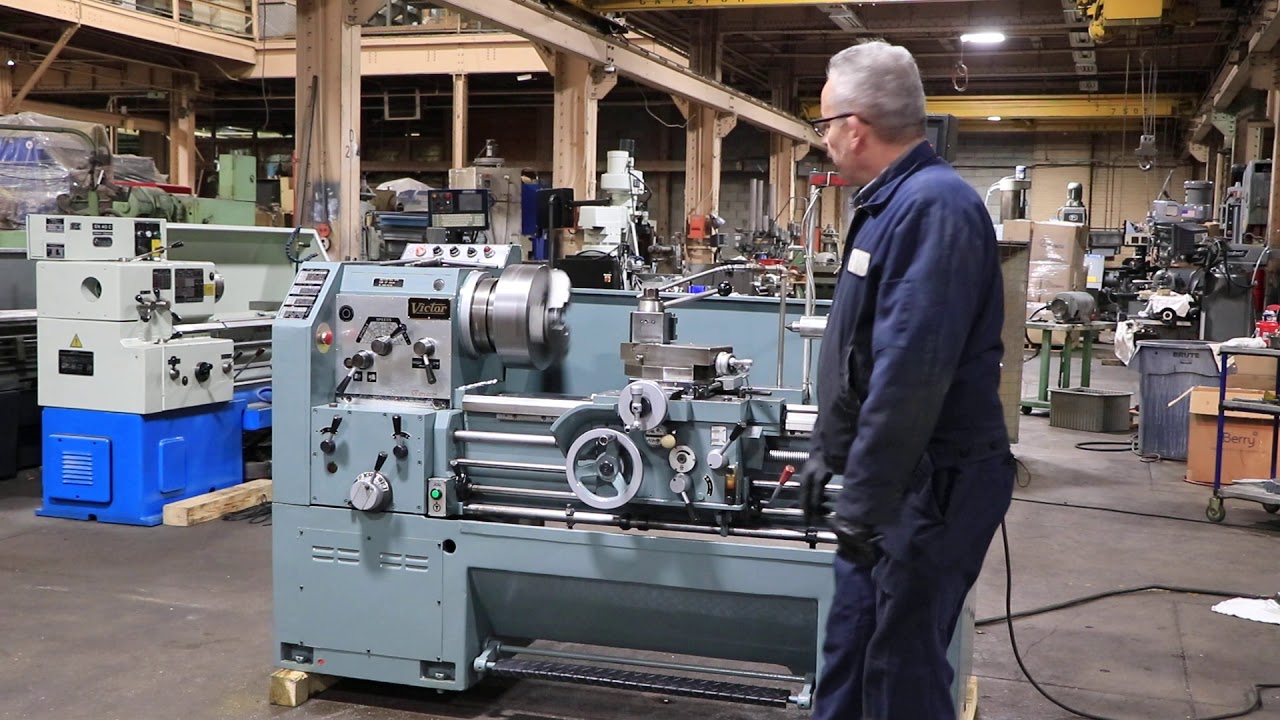

20" x 40" VICTOR ENGINE LATHE
MODEL: 2040G, S/N: 760330, NEW: 1980's
SPECIFICATIONS:
SWING OVER BEDWAYS ................... 20"
SWING IN REMOVEABLE GAP .............. 29"
SWING OVER CROSS SLIDE ............... 11-1/2"
HOLE THRU SPINDLE .................... 3"
DISTANCE BETWEEN CENTERS ............. 40"
SPINDLE NOSE ......................... D1-8" CAMLOCK
SPINDLE SPEED RANGE (16) ............. 31 - 1500 RPM
ENGLISH THREADING RANGE .............. 4 - 56 TPI
METRIC THREADING RANGE ............... .25 - 6 mm
LONGITUDINAL FEED RANGE .............. .0033" - .0233" IPR
CROSS FEED RANGE ..................... .0016" - .0084" IPR
TAILSTOCK SPINDLE TAPER .............. #4MT
TAILSTOCK SPINDLE TRAVEL ............. 5"
APPROXIMATE FLOOR SPACE .............. 85"L x 37"W x 60"H
APPROXIMATE WEIGHT ................... 3,500 LBS
EQUIPPED WITH:
NEWALL TWO AXIS DIGITAL READOUT
12" PRATT BURNERD 3-JAW CHUCK
ALORIS MODEL: CA TOOLPOST
FOOT BRAKE
COOLANT SYSTEM
10 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: *** EXCELLENT ***
