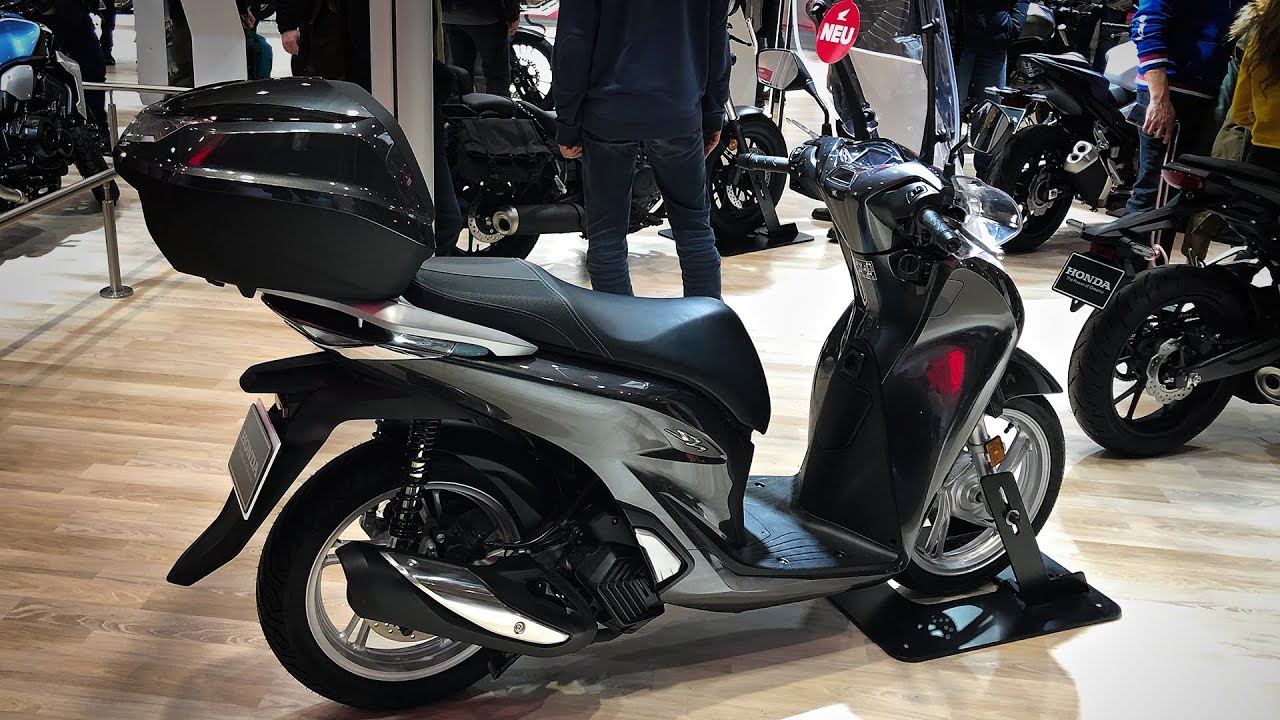

Honda SH125i (2020) Exterior and Interior

Описание: 2020 Honda SH125i motorcycle seen from outside and inside. The vehicle has single-cylinder, 4-stroke, 2-valve SOHC, liquid cooled, EURO 4, 124.5 cm³ engine. Bore x Stroke 53.5 x 55.4 mm. Compression ratio 11.5:1. Max power 9.2 kW (12.5 hp) at 8,250 rpm. Max torque 11.4 Nm at 6,500 rpm. Oil tank 0.9 liters. Gearbox is V-variator. Fuel system PGM-FI electronic injection. Fuel tank 7 liters. Fuel consumption is 44.6 km/l WMTC with Start&Stop deactivated. Electric start. Battery is YTZ8V 7Ah MF, ACG 232 W at 5,000 rpm. Clutch is dry centrifugal. Final drive by V-belt. High resistance steel tube, lower dorsal beam. Length 2,085 mm. Width 740 mm. Height 1,129 mm. Wheelbase 1,353 mm. Seat height 799 mm. Clearance 142 mm. Weight 136.5 kg. Turning radius 2 m. Front suspension is telescopic fork, 33 mm, 89 mm travel. Rear suspension is adjustable two shock absorbers in 5 levels, 83 mm travel. Front wheel is 16M/CxMT2.50. Rear wheel is 16M/CxMT2.75. 100/80-16 (50P). Front tire is 100/80-16", Michelin City Grip. Rear tire is 120/80-16: Michelin City Grip. Front brake is disc 240 mm, 2 pistons, ABS. Rear brake is disc 240 mm, 1 piston, ABS. Warranty 2 years. Honda Smart Key, USB jack. LED headlights and taillights.

The motorcycle was presented at EICMA 2019 - (Esposizione Internazionale Ciclo Motociclo e Accessori) - Milan, Italy, 7-10 November 2019.
