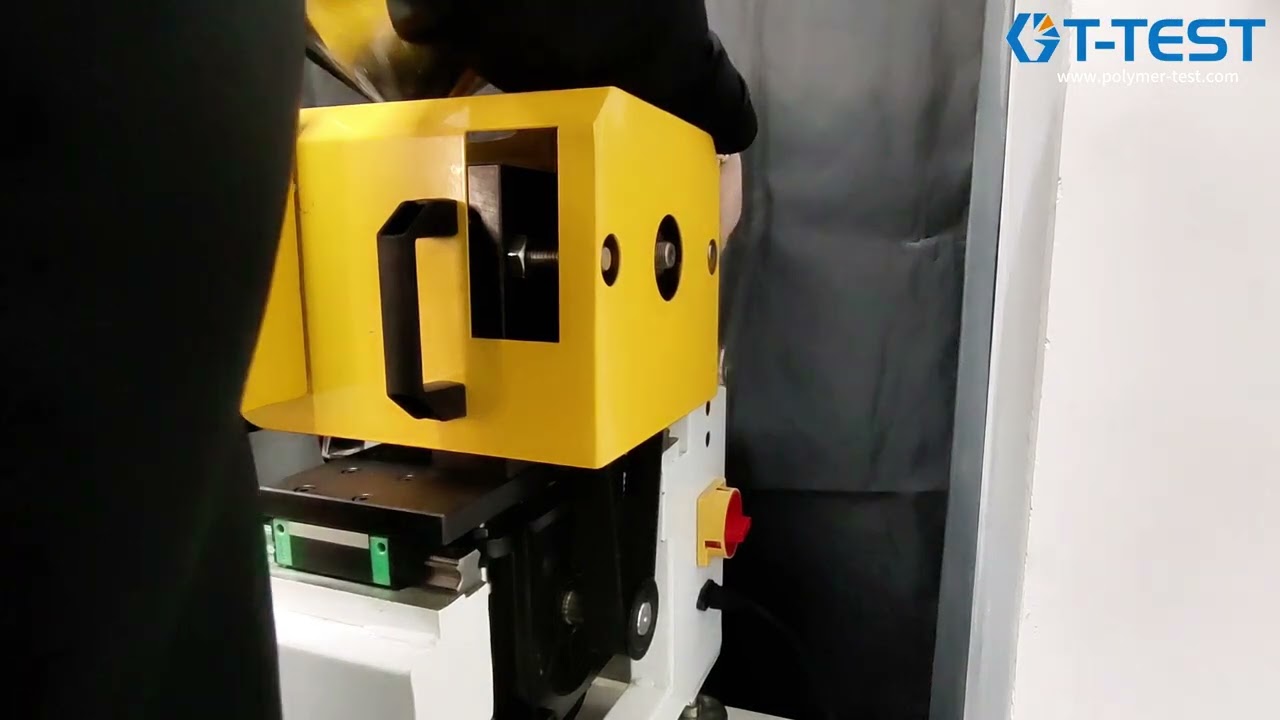

Desktop injection molding machine for making tensile samples
Автор: GT-TEST
Загружено: 2026-01-27
Просмотров: 1
Описание:
Principle
The injection molding machine consists of injection system, mold closing system, pressure conveyor system, electrical control system, heating and cooling system, safety monitoring system, etc.
Features
1. Humanized worktable height design, easy to operate, can greatly improve work efficiency.
2. The movable parts of the template and the machine column are made of high rigidity copper bushings, realizing the requirements of smooth movement and long service life with high precision.
3. The mold is easy to be installed and dismantled.
Technical Parameters
1. Clamping force: 5t
2. Clamping mode: servo motor positioning + leak screw locking
3. Max. temperature: 380℃
4. Positioning precision: 0.02mm
5. Screw size: 20x500mm
6. Injection speed: 150mm/s
7. Injection pressure: 70MPa
8. Max. mold size: 130x150x(120-170)mm
9. Sample mass: 15g
10. Dimension:1300x500x410mm, 150kg
