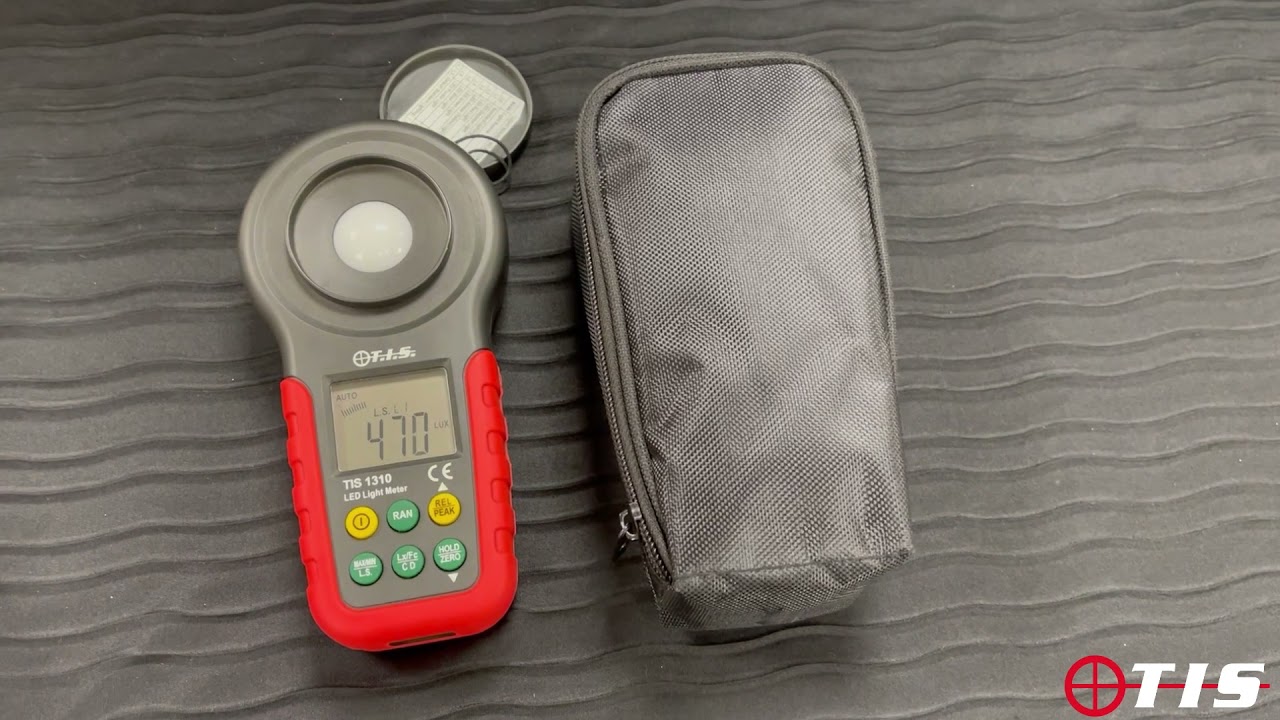

TIS 1310 LED & Standard Lux Meter
Автор: Test Instrument Solutions
Загружено: 2021-11-16
Просмотров: 3142
Описание:
The TIS 1310 Digital Lux / LED Light Meter is a light meter capable of measuring digital LUX and LED light. It is suitable for emergency lighting conditions and will auto default to standard light.
SPECIFICATIONS
Temperature Range:
• Operation: -10~50°C
• Storage: 10~50°C max 80% HR (Non-Condensed) without batteries
• Sampling Rate: ≥2 times/s
• Display: 3½ digits, max reading of 1999, with analog bar display
• Sensor: Silicon Spectral Range: 320~730nm
• Measurement Ranges: Lux 0~200000, Fc 0~20000, CD 0~999900
• Operating Environment: Indoor Use
• Max Operating Altitude: 2000m
• Battery Life: Approx 200 hours
• Power Supply: 1x9V IEC 6LR61
SPECIAL FUNCTIONS
• 0.01 to 200,000 Lux
• Ideal for Emergency Lighting
• LED: Daytime, Red Light, Yellow Light, Green Light, Blue Light, Purple Light
• Defaults to Standard Lighting
• Auto Range / Peak Hold
• Max / Min, Zero
• Digital and Bar Graph Display
• Apo, LS,
• Low Battery Display
GENERAL
Size:1900mm x 89mm x 45mm
Weight: 360g (without batteries)
Accuracy:±3% (Calibrated with incandescent lamps at 2854K)
